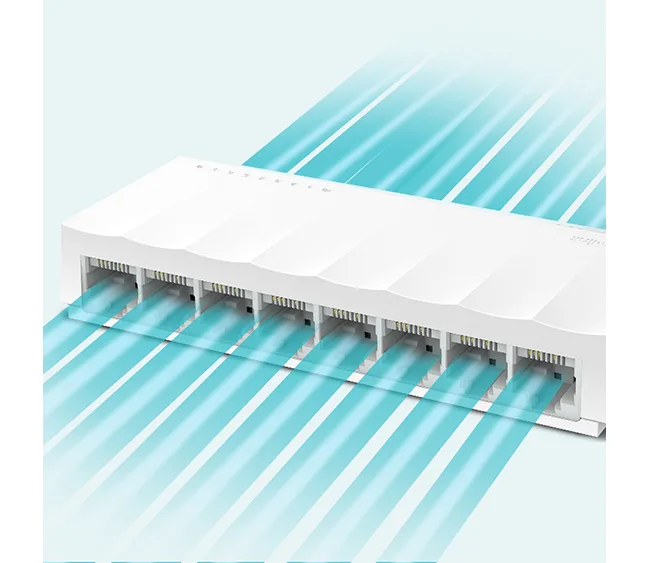

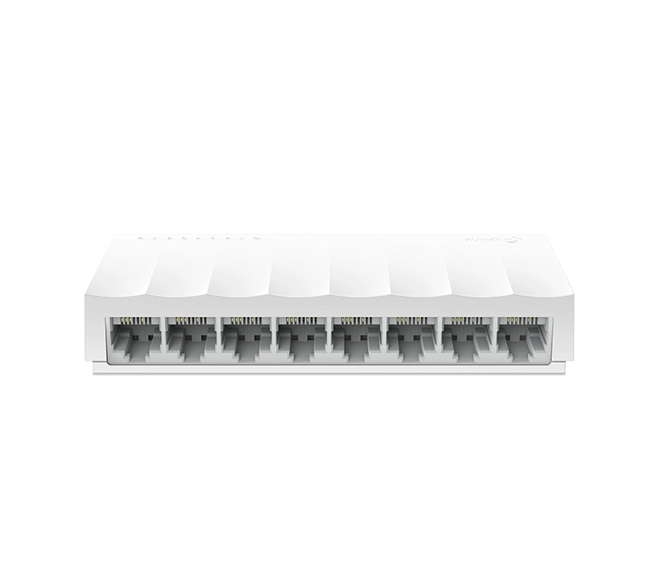

TP-Link 8-Port 10/100Mbps Desktop Switch (TL-LS1008)

KSh 5,000(KSh 5,800 Incl VAT)

8× 10/100Mbps Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
Green Ethernet technology saves power
IEEE 802.3X flow control provides reliable data transfer
Plastic casing and desktop design
Plug and play, no configuration needed
Fanless design ensures quiet operation

SKU: TL-LS1008Category: Networking Infrastructure

The TP-Link 8-Port 10/100Mbps Desktop Switch (TL-LS1008) is an 8-port unmanaged Fast Ethernet switch designed to expand wired network connections in homes, small offices, and dorms. With plug-and-play setup, energy-efficient features, and silent operation through a fanless design, it offers reliable performance and convenience without requiring any configuration.

🧠 Hardware Specifications

Model: TL-LS1008
Port Count: 8 × 10/100 Mbps RJ45 Ethernet ports
Auto-Negotiation: Yes
Auto MDI/MDIX: Yes, all ports
Switching Capacity: 1.6 Gbps
Forwarding Rate: 1.19 Mpps
MAC Address Table: 2K entries
Switching Method: Store-and-forward
Flow Control: IEEE 802.3x full-duplex and backpressure for half-duplex

🌐 Networking Standards

IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (Flow Control)

⚡ Power & Energy Efficiency

Power Supply: External 5V / 0.6A
Maximum Power Consumption: 2.64 W
Power Saving: Supports Green Ethernet, reducing energy use based on link status and cable length

📦 Physical & Environmental

Dimensions: 124.6 mm × 48.7 mm × 22.8 mm
Enclosure Type: Plastic
Mounting Options: Desktop
Cooling: Fanless (silent operation)
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10%–90% RH, non-condensing
Storage Humidity: 5%–90% RH, non-condensing

📝 Meta Description

TP-Link TL-LS1008 is an 8-port Fast Ethernet switch with plug-and-play setup, energy-saving features, Auto-MDI/MDIX, and silent operation—ideal for home and small business wired network expansion. Datasheet
