MikroTik RBLHGG-5acD-XL4pack – LHG XL 5 ac 4-Pack

MikroTik RBLHGG-5acD-XL4pack – LHG XL 5 ac 4-Pack Long-Range Outdoor Wireless Kit

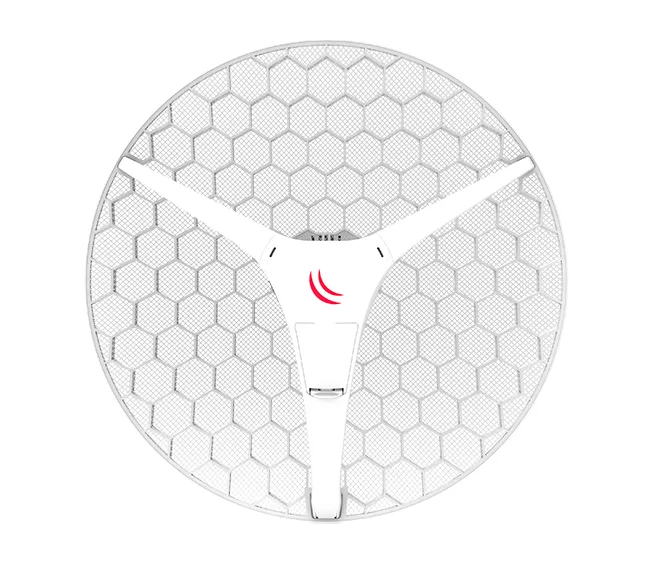

The MikroTik RBLHGG-5acD-XL4pack is a bundled set of four LHG XL 5 ac units, designed for long-distance point-to-point or CPE (customer premises equipment) deployments. Each unit features a high-gain 27 dBi integrated grid antenna and supports the 802.11ac standard, offering stable high-throughput 5 GHz wireless communication over extended ranges.

---

General & Hardware

• Model: RBLHGG-5acD-XL
• Architecture: ARM 32-bit
• CPU: IPQ-4018, Quad-core 716 MHz
• RAM: 256 MB
• Storage: 16 MB Flash
• RouterOS License: Level 3
• Operating Temperature: –40°C to +70°C
• MTBF: Approx. 200,000 hours at 25°C
• Cooling: Passive
• Enclosure: Outdoor-ready with integrated mounting design

---

Wireless Specifications

• Frequency: 5 GHz
• Standards: 802.11a/n/ac (Wi-Fi 5)
• Chains: 2x2 MIMO
• Max Wireless Data Rate: 867 Mbps
• Antenna Type: Integrated 27 dBi grid antenna
• Beamwidth: Approx. 7° for precise long-range targeting
• Special Features: Supports MikroTik’s proprietary Nv2 TDMA and IPsec hardware acceleration

---

Networking Interfaces

• Ethernet Port: 1 × 10/100/1000 Mbps Ethernet
• PoE Input: Passive PoE (10–30 V)
• Max Power Consumption: 7–8 W per unit

---

Physical Specifications

• Unit Dimensions: 550 mm diameter × 245 mm depth
• Weight: ~945 g per unit
• Kit Weight: ~3.8 kg total (4 units)
• Mounting: Comes with pre-assembled grid structure and mounting hardware

---

Included in the 4-Pack

• 4 × LHG XL 5 ac units
• 4 × Power adapters (24 V, 0.38 A)
• 4 × Passive PoE injectors
• Mounting kits with pole brackets and screws
• Quick start guides

---
