Ubiquiti airMAX  NanoBeam 5AC Gen2

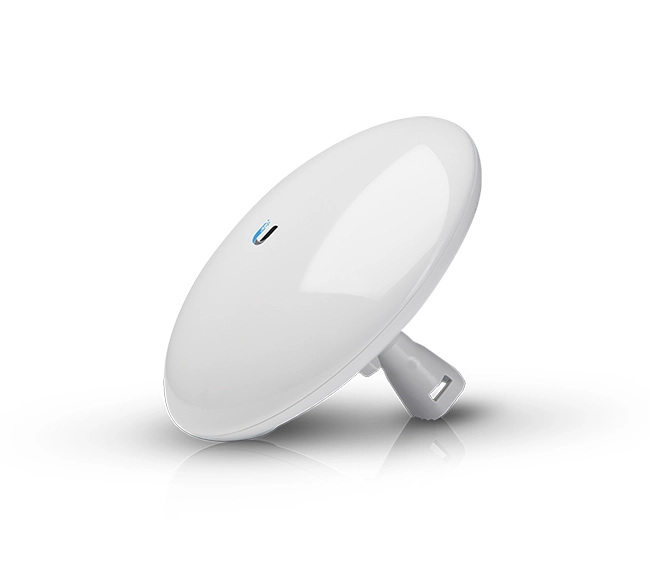

The Ubiquiti airMAX  NanoBeam 5AC Gen2 (NBE‑5AC‑GEN2)

blends a compact, integrated radio‑antenna design with advanced airMAX ac performance, ideal for high-speed point‑to‑point links in noise-rich environments.

---

🛠 Hardware & Mechanical

• Dimensions: 189 × 189 × 125 mm (with mount)
• Weight: 0.53 kg (1.17 lb)
• Enclosure: UV-stabilized plastic; rugged, outdoor-rated for -40 °C to +80 °C; wind survivability up to 200 km/h

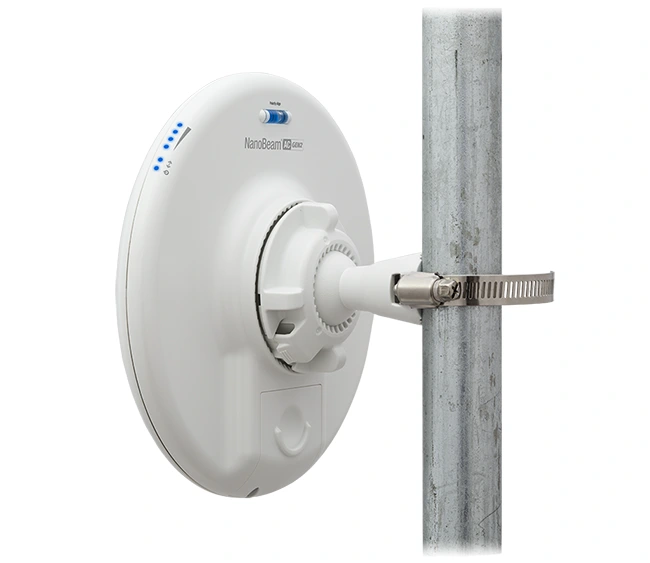

• Mounting: Includes pole-mount ball joint; optional wall/window mounts available

🌐 Networking & Power

• Ethernet: 2 × Gigabit RJ45 ports
  • Port 1: PoE‑in (24 V passive)
  • Port 2: PoE passthrough
• PoE Adapter: 24 V, 0.5 A Gigabit PoE unit (included)
• Power Consumption: ≤ 8.5 W

📡 Wireless & RF Characteristics

• Gain: 19 dBi antenna with dual-linear polarization
• Frequency Range: 5150–5875 MHz (client region-dependent)
• Channel Widths:
  • PtP: 10/20/30/40/50/60/80 MHz
  • PtMP: 10/20/30/40 MHz
• Tx Power: Up to 25 dBm
• Polarization: Dual-linear; VSWR ≤ 1.5:1

🧠 Processor & Memory

• CPU: Atheros MIPS 74Kc @ 720 MHz
• RAM: 128 MB DDR2
• Flash: 8 MB

💾 Software & Management

• OS: airOS 8 with enhanced UI, airView spectrum analyzer, airMagic channel tool
• Security: WPA2-AES; automatic ACK timing & transmit power control
• LEDs: Power, Ethernet link, 4‑level RSSI signal strength indicators (adjustable)

🌩 Environmental & Compliance

• Operating Temp: –40 °C to +80 °C; humidity 5–95% non-condensing
• Certifications: CE, FCC, IC; NDAA compliant; meets IEC & MIL‑STD weather/vibration specs

📶 Performance

• Real Throughput: 450+ Mbps TCP/IP; up to 450 Mbps in PtP links (airMAX ac)
• Noise Immunity: Tight beam suppresses interference; airMAX ac TDMA boosts efficiency & latency

Conclusion

  The Ubiquiti NanoBeam 5AC Gen2 is a compact, high-performance 19 dBi 5 GHz airMAX ac CPE featuring dual Ethernet ports, integrated diagnostics, 450+ Mbps real throughput, and robust outdoor durability. Datasheet
