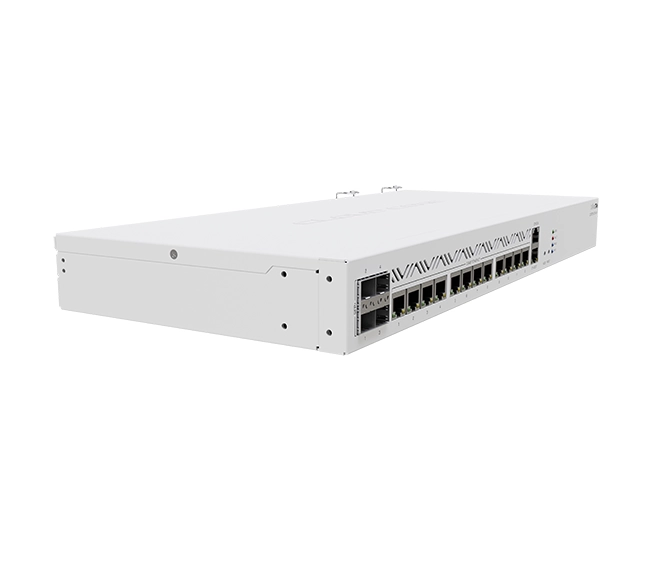

MikroTik CCR2116-12G-4S+ Cloud Core Router
KSh 149,000(KSh 172,840 Incl VAT)
- CPU: 16-core 2 GHz Amazon Annapurna Labs AL73400 (ARM 64-bit)
- RAM: 16 GB DDR4
- Ports: 4 × 10G SFP+, 12 × 1G Ethernet via switch chip, 1 × 1G Ethernet direct to CPU (management)
- Storage: 128 MB NAND + M.2 PCIe slot for SSD
- Switch Chip: Marvell 98DX3255
- RouterOS: Level 6 license, pre-installed (v7)
- Power: Dual internal redundant PSUs
- Form Factor: 1U rackmount
- Cooling: 4 active fans
- Performance: ~39 Gbps throughput, IPsec hardware acceleration
SKU: CCR2116-12G-4S+Category: Networking Infrastructure
Powerful MikroTik CCR2116-12G-4S+ router with 16-core 2GHz CPU, 16GB RAM, 4×10G SFP+, 13×Gigabit LAN, M.2 SSD slot, dual PSU, and RouterOS L6 – ideal for high-performance networking.
Here are the detailed specifications for the CCR2116-12G-4S+ Cloud Core Router from MikroTik:
📦 General
- Product Code: CCR2116‑12G‑4S+
- Dimensions: 443 × 199 × 44 mm (1U rackmount)
- Cooling: Four fans
- Operating Temperature: –20 °C to +60 °C
- MTBF: ~200 ,000 hours at 25 °C
🧠 CPU & Memory
- CPU: Amazon Annapurna Labs Alpine v3 AL73400 (ARM 64‑bit)
- Cores/Clock: 16 cores @ 2 GHz each
- RAM: 16 GB DDR4
- Storage: 128 MB NAND flash
🔌 Ports & Connectivity
- 10 Gbps: 4 × SFP+ (hosted via Marvell 98DX3255 switch chip)
- 1 Gbps: 12 × Ethernet through switch chip + 1 × CPU‑direct management port (total 13)
- Peripherals:
- 1 × RJ‑45 serial console
- 1 × M.2 PCIe slot (supports up to 8 TB SSD)
⚡ Power & Efficiency
- Power Supplies: Dual-redundant, internal
- AC Input: 100–240 VAC, 47–63 Hz
- Power Draw: 60 W (idle/no attachments), up to 72–83 W under full load
🧩 Routing & Hardware Features
- Switch Chip: Marvell 98DX3255 (supports full-duplex connections for port groups)
- RouterOS License: Level 6, bundled with RouterOS v7
- Hardware Offloading: Layer 3 offload support (significant for BGP, NAT, firewall rules, etc.)
- IPsec Acceleration: Yes
- Monitoring: CPU/PCB temperature monitoring and voltage sensors; includes mode button
✅ Certifications & Accessories
- Certifications: CE, FCC, EAC, RoHS
- Included:
- 2 × IEC power cords
- White rackmount bracket
- K‑57 mounting kit
Summary
The CCR2116-12G-4S+ is MikroTik’s top-tier 1U rackmount router, ideal for ISPs, data centers, and enterprises requiring true 10 Gbps edge/core performance. It delivers:- High-throughput routing and hardware offloading
- 16‑core 2 GHz ARM CPU with 16 GB RAM
- 4 × 10 Gbps and 13 × 1 Gbps ports
- Dual‑redundant power and robust monitoring
- Expandable storage via M.2 PCIe
