MikroTik RB5009UPr +S+OUT Router
KSh 49,000(KSh 56,840 Incl VAT)
- Quad-Core 1.4 GHz ARM CPU – Enterprise-grade performance
- 1 GB DDR4 RAM & 1 GB NAND Storage – Fast and reliable
- 7 × Gigabit Ethernet Ports with PoE-Out – Supports 802.3af/at & Passive PoE
- 1 × 2.5G Ethernet + 1 × 10G SFP+ Port – High-speed uplinks
- 9 Powering Options – PoE-in, dual DC jacks, and dual terminal blocks
- USB 3.0 Port – For LTE modems, storage, or expansion
- Rugged IP66-Rated Outdoor Enclosure – Waterproof, dustproof, and fanless
- RouterOS Level 5 License – Full-featured routing, firewall, VPN & more
- Ideal for Towers, Outdoor Surveillance, and Remote Deployments
SKU: RB5009UPr+S+OUTCategory: Networking Infrastructure
As a network administrator, you never know when the next windstorm, lightning, flood, heatwave, or a power outage will strike. But with the right tools you can protect your network from most troubles! Here’s our wishlist for the perfect tool:
Datasheet
-
- easy to deploy
- works well in ANY weather
- provides extensive power redundancy
- can be connected via most common networking interfaces
- has a CPU that is strong enough to take full advantage of the most powerful
- doesn’t cost a fortune
🌦️ MikroTik RB5009UPr+S+OUT
Outdoor Power, PoE Mastery, and Maximum Redundancy in One Compact Beast
🧠 Product Overview

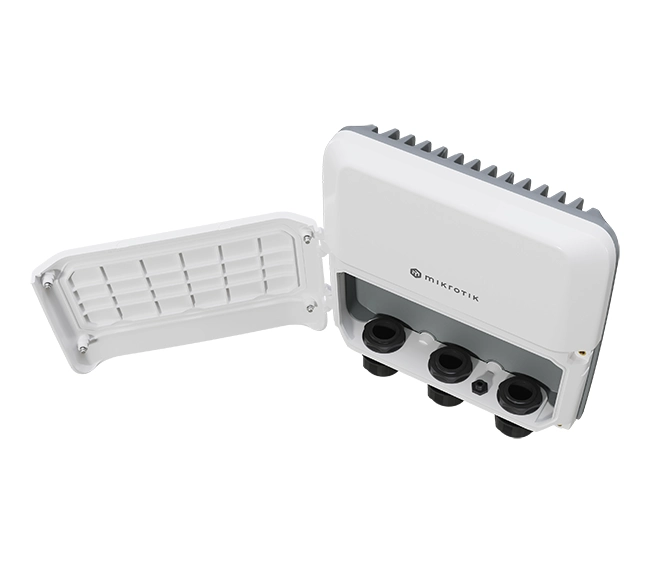

The RB5009UPr+S+OUT is an outdoor-rated version of MikroTik’s most powerful compact PoE router. Housed in a rugged IP66-rated enclosure, it’s designed for the harshest environments, providing full PoE-out on 7 ports, 10G SFP+ uplink, 2.5G Ethernet, and 9 flexible powering options. It’s the ultimate edge router for outdoor towers, surveillance setups, and WISPs.🔧 Hardware Specifications
| Feature | Description |
|---|---|
| CPU | Quad-core ARM Cortex-A72 @ 1.4 GHz (AL32400) |
| RAM | 1 GB DDR4 |
| Storage | 1 GB NAND |
| RouterOS License | Level 5 |
| Enclosure | Outdoor-rated aluminum case, IP66 waterproof/dustproof |
| Cooling | Passive (fanless) |
| Dimensions | ~222 x 139 x 59 mm (excluding brackets and connectors) |
🌐 Interfaces & Ports
- 7 × Gigabit Ethernet Ports with PoE-Out
- 1 × 2.5G Ethernet Port
- 1 × 10G SFP+ Port
- 1 × USB 3.0 Port (for LTE modems, storage, etc.)
- 1 × Serial Console Port (RJ45)
⚡ Powering and PoE Features
| Feature | Description |
|---|---|
| Power Inputs | 9 total — PoE-in on ETH8, 2× DC jack, 2× 2-pin terminal block |
| PoE-Out | Passive PoE and 802.3af/at on ETH1–ETH7 |
| Max PoE Output per Port | Up to 1A |
| Total PoE Budget | Up to 130W (depends on PSU used) |
| Power Input Range | 24–57V DC |
| Max Power Consumption | Up to 150W with full PoE load |
| Power Supply | Not included — external PSU required (e.g., 24V 5A or 48V 3A recommended) |
🧠 RouterOS Features (Level 5)
- Advanced routing (OSPF, BGP, MPLS, VRRP)
- Firewall, NAT, traffic shaping
- VPN: WireGuard, IPsec, L2TP, SSTP, OpenVPN
- VLANs, bonding, bridging
- CAPsMAN wireless management
- Scripting, monitoring, SNMP
🌍 Deployment Use Cases
- ISP tower or mast installations
- Outdoor video surveillance networking
- Rural/remote infrastructure setups
- Edge router for high-density PoE devices
- Any environment needing IP66-grade durability
🏆 Why Choose RB5009UPr+S+OUT?
✅ IP66 Outdoor Case – Waterproof, Dustproof ✅ Quad-core CPU + 1GB RAM – Enterprise-grade performance ✅ PoE-Out on 7 Ports – 802.3af/at & Passive support ✅ 10G SFP+ + 2.5G Ethernet – High-speed uplinks ✅ 9 Powering Options – Ultimate redundancy ✅ RouterOS L5 – Versatile and secure routing features📦 What’s in the Box?
- RB5009UPr+S+OUT Router

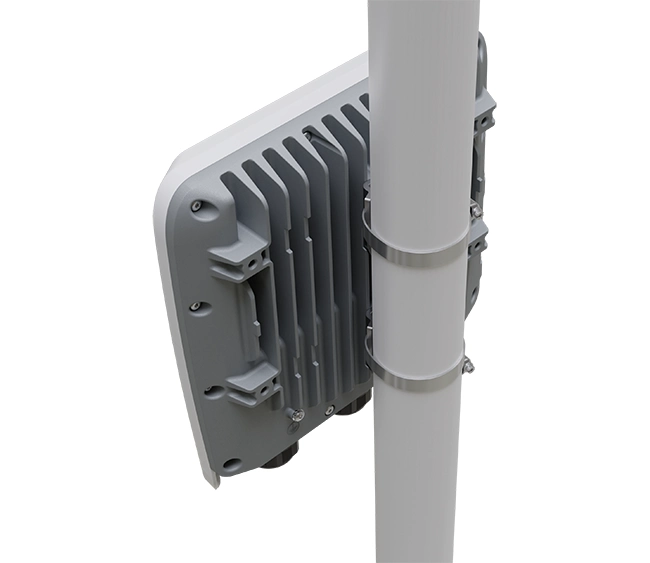

- Outdoor Mounting Brackets
- Quick Start Guide
- Power supply not included
