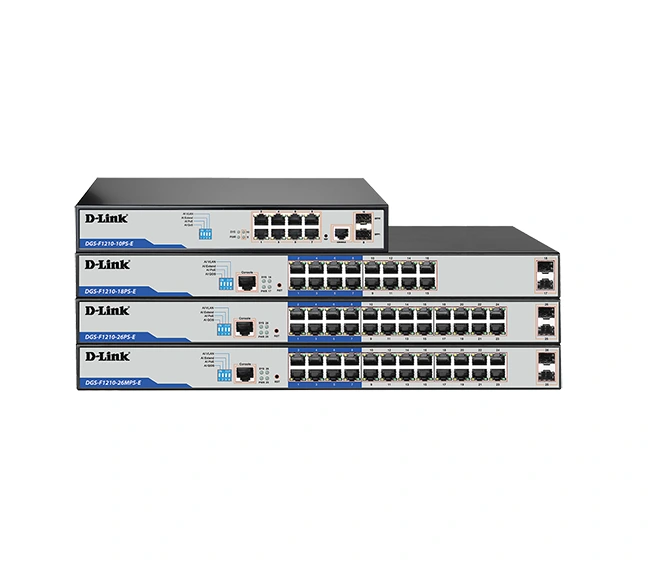

D-Link 18-Port Gigabit Smart Managed PoE+ Switch (DGS-F1210-18PS-E)

KSh 18,000(KSh 20,880 Incl VAT)

18 Gigabit Ports: 16 RJ45 and 2 SFP
16 PoE Ports with 135 Watts power budget
8 Ports with 250m Long Reach PoE Technology
36Gbps Switching capacity
No-configuration shortcut buttons
LACP, RSTP, MSTP, ERPS and more
Advanced Security Features

SKU: DGS-F1210-18PS-ECategory: Networking Infrastructure

The DGS-F1210 Series is a diverse group of Gigabit Long Reach PoE Smart Managed Switches. With a wide variety of port options, you can provide power for your PoE powered devices such as IP Cameras, CCTV, VoIP, Wi-Fi Access Points etc. There is one to suit any budget or requirement.

Here are the detailed specifications for the D-Link DGS-F1210-18PS-E 18-Port Layer 2 Gigabit Managed Long Range PoE+ Surveillance Switch:

📘 D-Link DGS-F1210-18PS-E – 18-Port Gigabit Smart Managed PoE+ Switch

🔌 Hardware Overview

Ports:
- 16 × 10/100/1000 Mbps PoE+ RJ45 ports
- 2 × Gigabit SFP uplink ports
Switching Capacity: 36 Gbps
Forwarding Rate: 23.8 Mpps
MAC Address Table: 8K entries
Packet Buffer Size: 4.1 Mbits
PoE Standards: IEEE 802.3af/at
PoE Budget: Up to 150W total
Long Reach PoE: Supports up to 250m on ports 1–8 with Extend mode enabled
Lightning Protection: 6kV surge protection

⚙️ Software & Management Features

Management Interfaces:
- Web-based GUI (HTTP/HTTPS)
- Command Line Interface (CLI) via Telnet/SSH
- SNMP v1/v2c/v3
VLAN Support:
- 802.1Q VLAN
- MAC VLAN
- IP VLAN
- Voice VLAN
- Supports up to 4K VLANs
Quality of Service (QoS):
- 8 queues per port
- 802.1p CoS, DSCP, SP, WRR, WFQ scheduling
Security Features:
- Access Control Lists (ACLs)
- Port Security
- 802.1X Authentication
- IP-MAC-Port Binding
- DoS Protection
- DHCP Snooping
- SSL, SSH, HTTPS support
Layer 2 Features:
- Spanning Tree Protocol (STP), Rapid STP (RSTP), Multiple STP (MSTP)
- Link Aggregation (Static and LACP)
- IGMP Snooping v1/v2
- Loopback Detection
- Port Mirroring
- Storm Control (Broadcast/Multicast/Unknown Unicast)
IPv6 Support:
- IPv6 Ping, Traceroute, Telnet, SSH
- IPv6 SNMP, LLDP
- IPv6 DHCP Client

🌿 Energy Efficiency

Energy-Efficient Ethernet (EEE): Compliant with IEEE 802.3az
Power Saving Features:
- Link status detection
- LED shut-off
- Port shut-off
- System hibernation
Time-Based PoE: Schedule PoE power delivery
