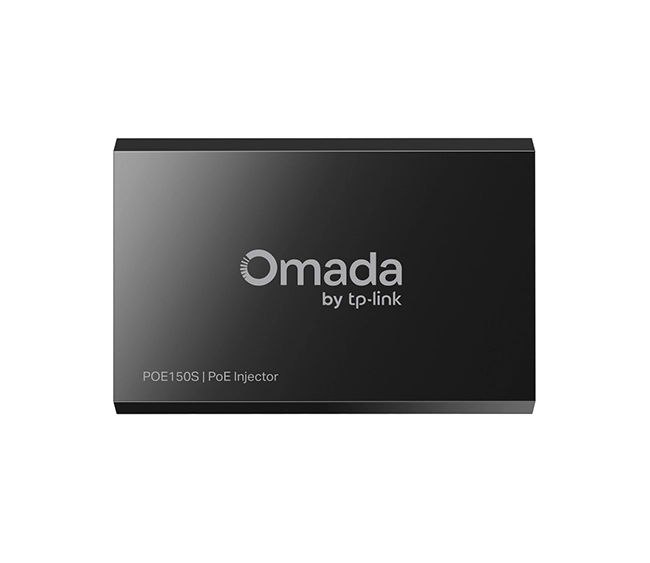

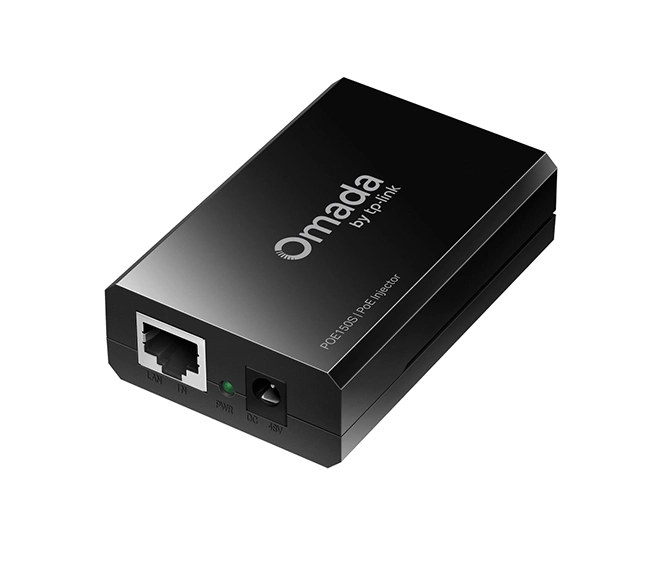

TP-Link PoE Injector - TL-POE150S

The TP-Link PoE Injector - TL-POE150S is a compact and efficient device that enables both power and data to be transmitted over a single Ethernet cable to compatible devices. It complies with IEEE 802.3af standards, making it suitable for powering IP cameras, wireless access points, IP phones, and other PoE-enabled devices up to 100 meters away. This injector is ideal for setups where power outlets are not conveniently located near the device.

Detailed Specifications

Standards Compliance:

• IEEE 802.3af compliant

Data Transfer Rates:

• 10/100/1000Mbps

Power Input:

• 100–240V AC, 50/60Hz

Power Output:

• 48V DC, up to 0.32A (15.4W)

Ports:

• 1 × 10/100/1000Mbps Auto-Negotiation RJ45 LAN Port
• 1 × 10/100/1000Mbps Auto-Negotiation RJ45 PoE Port

Cable Type Supported:

• UTP Cat5 or higher

PoE Range:

• Up to 100 meters (328 feet)

LED Indicators:

• Power
• PoE Status

Dimensions:

• 3.2 × 2.1 × 1.0 in (81 × 52 × 24 mm)

Weight:

• Approx. 100g

Compatibility:

• Works with all IEEE 802.3af compliant powered devices
• Can be used with TP-Link PoE Splitter TL-POE10R for non-PoE devices

Operating Environment:

• Temperature: 0°C to 40°C (32°F to 104°F)
• Humidity: 10%–90% non-condensing

Key Features

• Supplies power and data over a single Ethernet cable
• Gigabit-speed data transfer for high-performance networks
• IEEE 802.3af compliant, ensuring wide compatibility
• Compact, plug-and-play design for easy deployment
• Extends PoE range up to 100 meters without additional adapters
