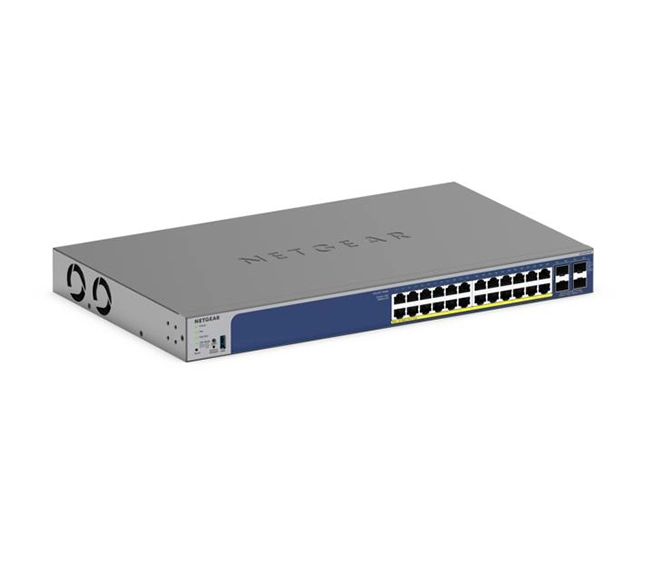

Netgear GS728TXP-300UKS 24-Port Gigabit PoE+ Smart Managed Pro Switch

The Netgear GS728TXP-300UKS 24-Port Gigabit PoE+ Smart Managed Pro Switch is a high-performance 24-port Smart Managed Pro PoE+ switch designed for growing businesses that require Gigabit edge connectivity with 10G uplink capacity. Featuring 24 PoE+ RJ-45 Gigabit ports and 4 × 10G SFP+ uplink ports, it delivers a powerful mix of scalability, advanced management, and a high PoE power budget of 390W. This makes it ideal for dense deployments of IP cameras, wireless access points, and VoIP systems while supporting 10G aggregation for future-ready networks.

---

Ports & Connectivity

• Total Ports: 28
  • 24 × 10/100/1000 Mbps Gigabit Ethernet RJ-45 PoE+ ports
  • 4 × 10G SFP+ dedicated uplink ports
• PoE Standards:
  • IEEE 802.3af (PoE)
  • IEEE 802.3at (PoE+)
• Maximum Power per Port: Up to 30W
• Total PoE Budget: 390W shared across 24 ports

---

Performance

• Switching Capacity: 128 Gbps non-blocking
• Forwarding Rate: 95.2 Mpps
• MAC Address Table: 16,000 entries
• Jumbo Frames: Up to 9,216 bytes supported

---

Management Features (Smart Managed Pro)

• VLANs: 802.1Q, port-based, protocol-based
• QoS: Prioritization for voice, video, and data traffic
• IGMP Snooping v1/v2/v3 for multicast optimization
• LAG (Link Aggregation) with LACP support
• Advanced Security: ACLs, DHCP Snooping, DoS Prevention
• Static Routing (Layer 3 Lite)
• Port Mirroring, Loop Detection
• SNMP v1/v2c/v3, RMON for monitoring
• Dual Firmware & Configuration Backup
• Web GUI, CLI, and Insight Cloud management

---

Power & Consumption

• PoE Budget: 390W (sufficient for multiple APs, VoIP phones, and cameras)
• Power Consumption (Max): ~480W

---

Design & Build

• Form Factor: 1U Rack-mountable metal chassis
• Cooling: Active cooling with multiple fans
• LED Indicators: Link/Activity, PoE status, Speed, Power

---

Physical Specifications

• Dimensions (W × D × H): 440 × 310 × 43 mm
• Weight: ~4.9 kg

---

Environmental Conditions

• Operating Temperature: 0°C to 50°C
• Storage Temperature: –20°C to 70°C
• Operating Humidity: 10%–90% non-condensing

---

Warranty & Support

• Warranty: Netgear Limited Lifetime Hardware Warranty
• Support: Lifetime 24/7 technical support (with registration) + next-business-day hardware replacement

---

Typical Use Cases

• SMBs and enterprises requiring 10G uplink capability for server or core switch aggregation
• Wireless access point clusters in high-density offices or campuses
• IP surveillance systems with 24 PoE+ cameras
• VoIP deployments needing reliable PoE+ power and QoS prioritization

---

Key Features

• 24 × Gigabit PoE+ ports with 390W PoE budget
• 4 × 10G SFP+ dedicated uplink ports for high-speed aggregation
• High-performance switching: 128 Gbps capacity
• Advanced L2+/Lite L3 management: VLANs, QoS, Static Routing, Security
• Rack-mountable 1U design with active cooling

---

Meta Description

Netgear GS728TXP-300UKS 24-Port Gigabit PoE+ Smart Managed Pro Switch with 24 PoE+ Gigabit ports, 390W PoE budget, and 4 × 10G SFP+ uplinks. Ideal for businesses needing reliable PoE power, 10G aggregation, VLAN, QoS, and advanced security. Datasheet
