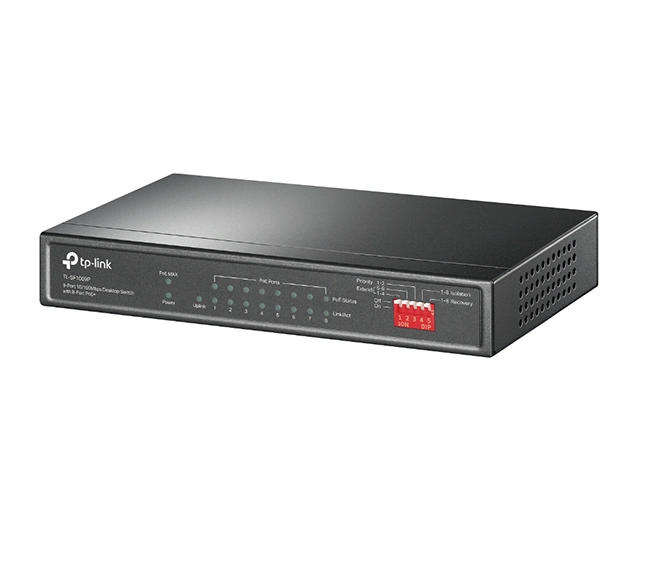

TP-Link 9-Port 10/100Mbps Desktop Switch - 8-Port PoE+(TL-SF1009P)

TP-Link 9-Port 10/100Mbps Desktop Switch - 8-Port PoE+(TL-SF1009P) is a high-performance 9-port 10/100 Mbps unmanaged desktop PoE+ switch, optimized for surveillance systems and small-to-medium business networks. Featuring eight PoE+ ports compliant with IEEE 802.3af/at standards, it delivers a total power budget of 65 watts, ensuring robust connectivity and reliable power supply to IP cameras, wireless access points, and VoIP phones. With plug-and-play functionality, extended PoE range up to 250 meters, and fanless design for silent operation, it is ideal for users looking to expand network capability with minimal setup.

General

• Product Model: TP-Link TL-SF1009P
• Device Type: Unmanaged Fast Ethernet Desktop Switch with PoE+

Standards and Protocols

• IEEE 802.3i (10BASE-T Ethernet)
• IEEE 802.3u (100BASE-TX Fast Ethernet)
• IEEE 802.3x (Flow Control)
• IEEE 802.3af/at (Power over Ethernet standards)

Interface

• 9 × 10/100 Mbps RJ45 ports
• Ports 1–8 support PoE/PoE+ (Power over Ethernet Plus)
• Port 9 is non-PoE uplink

PoE Features

• PoE Standard: IEEE 802.3af/at compliant
• Power Budget: 65 W total across ports 1–8
• Max Power per Port: 30 W
• PoE Functions:
  • Extend Mode (up to 250 m at 10 Mbps)
  • Priority Mode (Ports 1–2)
  • Isolation Mode (client traffic separation)
  • PoE Auto Recovery (automatically restarts unresponsive devices)

Performance

• Switching Capacity: 1.8 Gbps
• Forwarding Rate: 1.34 Mpps
• MAC Address Table: 2K entries
• Packet Forwarding: Store-and-forward
• Buffer Memory: 768 KB
• Jumbo Frame Support: 2 KB

LED Indicators

• Power
• Link/Activity
• PoE Status

Power Supply and Consumption

• Power Input: External power adapter (53.5 V DC / 1.31 A)
• Max Power Consumption (Full Load): 77.19 W
• Max Power Consumption (No PoE Load): 3.3 W
• Heat Dissipation:
  • Full Load: 263.33 BTU/h
  • No Load: 11.27 BTU/h

Physical Features

• Housing: Metal, fanless design
• Mounting: Desktop or wall-mounted
• Dimensions: 171 × 98 × 27 mm
• Weight: Approx. 0.49 kg

Environmental Specifications

• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -40°C ~ 70°C
• Operating Humidity: 10% ~ 90% RH non-condensing
• Storage Humidity: 5% ~ 90% RH non-condensing

Certifications

• CE, FCC, RoHS
