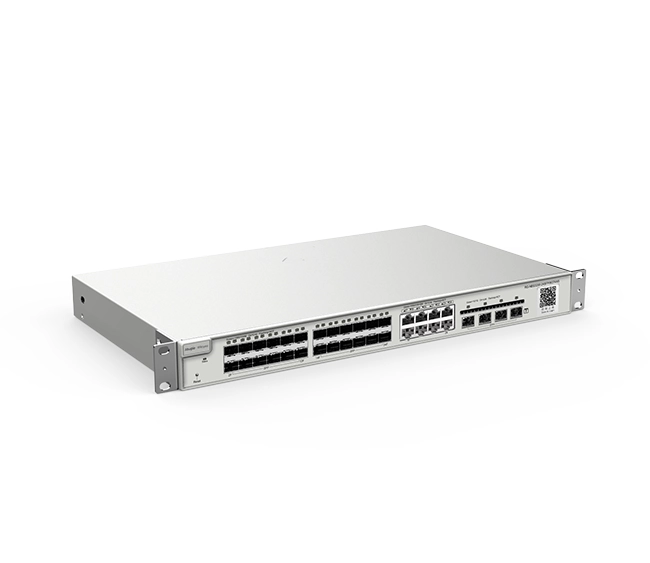

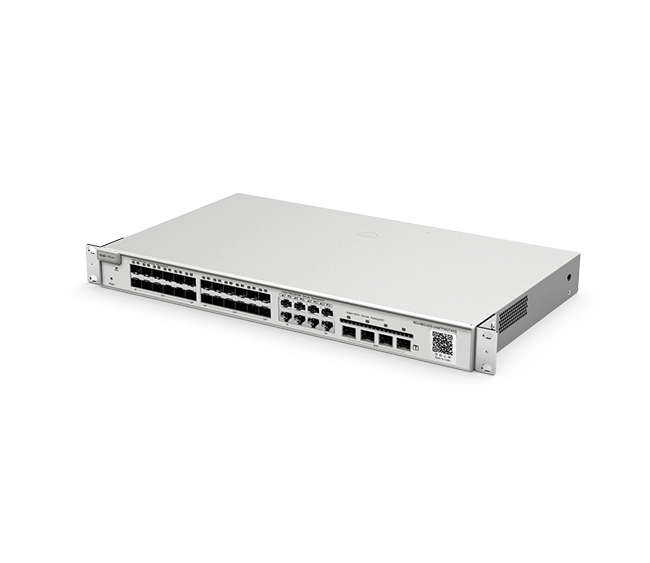

Ruijie RG-NBS3200-24SFP/8GT4XS, 24-Port Gigabit SFP Layer 2+ Managed Switch

Ruijie RG-NBS3200-24SFP/8GT4XS is a high-performance Layer 2+ managed switch designed for enterprise, surveillance, and campus networks. It offers a flexible port configuration with 24 Gigabit SFP ports and 8 combo RJ45 ports, along with 4 10G SFP+ uplink ports.

---

🔧 Hardware Specifications

• Ports:
  • 24 × Gigabit SFP ports (100/1000 Mbps)
  • 8 × Combo 10/100/1000Base-T RJ45 ports
  • 4 × 10G SFP+ uplink ports
• Switching Capacity: 128 Gbps
• Forwarding Rate: 95.24 Mpps
• MAC Address Table: 16,000 entries
• Packet Buffer: 12 Mbit
• VLAN Support: Up to 4094 VLANs
• Jumbo Frame Support: Up to 9216 bytes
• Power Supply: Fixed, 100–240V AC, 2A
• Power Consumption: ≤ 42W
• Cooling: Single fan with adaptive speed; airflow from left to rear
• Dimensions: 440 mm × 267.5 mm × 43.6 mm
• Weight: 3.35 kg (with packaging)
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH
• Storage Humidity: 5% to 95% RH
• Surge Protection: 6 kV on ports
• Certifications: CE, RoHS

---

🧠 Layer 2 & Management Features

• Spanning Tree Protocols: STP (IEEE 802.1d), RSTP (IEEE 802.1w)
• Link Aggregation: Supports up to 16 aggregation groups with 8 members per group
• VLAN Types: Port-based, MAC-based, IP-based, Voice VLAN
• Access Control Lists (ACLs): Supports IP standard ACL, MAC extended ACL, IP extended ACL, and port ACL for Layer 2 ports
• Quality of Service (QoS): Port-based speed limit (ingress/egress)
• Security Features: Port protection, hardware CPU protection, DHCP snooping, IP source guard, anti-ARP spoofing
• Management: Web-based GUI, Ruijie Cloud, Ruijie Cloud app
• Other Features: LLDP/LLDP-MED, IGMP Snooping v1/v2/v3, Jumbo Frame support, loop prevention and notification

---

📦 Package Contents

• RG-NBS3200-24SFP/8GT4XS Switch
• AC Power Cord
• Rack Mounting Brackets
• Foot Pads
• Quick Start Guide
• Warranty Card
• Screws

---

💼 Use Cases

This switch is ideal for:

• Enterprise networks requiring high-speed uplinks and flexible port configurations
• IP surveillance systems with high bandwidth demands
• Campus and educational institution networks
• Hospitality and retail environments
• Industrial and factory settings

---
