UniFi U6 + (U6-Plus)

The UniFi U6+ (U6-PLUS) is a compact, high-efficiency Wi-Fi 6 access point designed for indoor use in small to medium environments such as offices, homes, or retail spaces. It delivers dual-band performance with 2x2 MU-MIMO on both 2.4 GHz (up to 574 Mbps) and 5 GHz (up to 2402 Mbps), achieving an aggregate theoretical throughput of 3 Gbps. Powered by standard 802.3af PoE, the U6+ features a discreet design and includes mounting hardware for wall or ceiling installation. It supports advanced features like WPA3 encryption, VLANs, guest network isolation, and seamless integration into UniFi’s cloud-managed controller system. With built-in Bluetooth Low Energy (BLE) for easy app-based setup, the U6+ offers a balance of performance, security, and ease of deployment within the UniFi ecosystem.

🧱 PHYSICAL SPECIFICATIONS

• Dimensions: 160 x 160 x 33 mm (6.3 x 6.3 x 1.3 inches)
• Weight:
  • 338 g (0.75 lb) without mounting kit
  • 413 g (0.91 lb) with mounting kit
• Mounting Options: Wall and ceiling mount (standard bracket included)
• Enclosure Materials: UV-resistant polycarbonate (intended for indoor environments)
• Operating Temperature: -30°C to 60°C (-22°F to 140°F)
• Operating Humidity: 5% – 95% non-condensing

🔌 NETWORK & POWER

• Ethernet Port:
  • (1) 10/100/1000 Mbps RJ45 port (Auto-sensing)
  • Supports 802.3af PoE in (Power over Ethernet)
• Power Method: 802.3af PoE
• Power Supply: Not included by default (must be connected to a PoE switch or injector)
• Max Power Consumption: 13W

📡 WIRELESS RADIO SPECS

• Wi-Fi Standards:
  • IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• MIMO:
  • 2x2 MIMO on both 2.4 GHz and 5 GHz bands
• Frequency Bands:
  • 2.4 GHz: 2x2 MU-MIMO, 574 Mbps (max PHY rate)
  • 5 GHz: 2x2 MU-MIMO, 2402 Mbps (max PHY rate)
• Modulation:
  • OFDMA (Orthogonal Frequency Division Multiple Access)
  • 1024-QAM (High-efficiency modulation for Wi-Fi 6)
• Channel Bandwidth:
  • 2.4 GHz: 20/40 MHz
  • 5 GHz: 20/40/80/160 MHz (though 160 MHz is rarely utilized on U6+)
• Max Theoretical Aggregate Throughput: ~3.0 Gbps

📶 ANTENNA SYSTEM

• Integrated Antennas:
  • (1) Dual-band antenna array
  • Antenna Gain:
    • 2.4 GHz: 3 dBi
    • 5 GHz: 5.4 dBi
• Coverage Range: Ideal for up to 140 m² (1,500 ft²) depending on walls/obstructions
• Max Concurrent Clients: 300+ (actual number varies based on usage and environment)

🔐 SECURITY

• Wireless Encryption:
  • WPA2-PSK (Personal), WPA2-Enterprise
  • WPA3-PSK, WPA3-Enterprise (enhanced security)
• VLAN Support: Yes (802.1Q VLAN tagging)
• Guest Network: Yes, with captive portal, bandwidth limiting, and traffic isolation
• Rogue AP Detection & Wireless Intrusion Detection System (WIDS) compatible via UniFi Controller

📲 MANAGEMENT & SOFTWARE

• Managed via UniFi Network Application (Controller):
  • Version required: UniFi Network 7.3.76 or newer
  • Compatible with Cloud Key Gen2, UDM, UDM-Pro, UDM-SE, or self-hosted controller
• Features:
  • Zero-touch provisioning
  • Real-time RF analytics
  • Band steering, load balancing, airtime fairness
  • Traffic shaping, firewall rules, DPI (Deep Packet Inspection via controller)
• BLE (Bluetooth Low Energy):
  • For initial setup via UniFi Mobile App
  • BLE beaconing for location services and smart integrations (when supported)

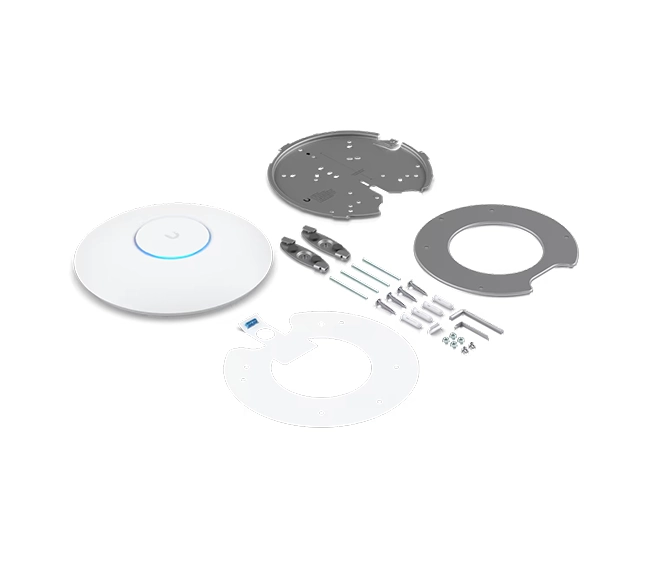

🧰 PACKAGE CONTENTS

• U6+ Access Point
• Ceiling/Wall Mounting Plate
• Screws and anchors
• Quick Start Guide

🎯 IDEAL FOR

• Indoor deployments (offices, small businesses, home networks)
• Environments requiring efficient multi-user access with modest coverage needs
• Use in a UniFi-managed network for scalability, insights, and performance tuning
