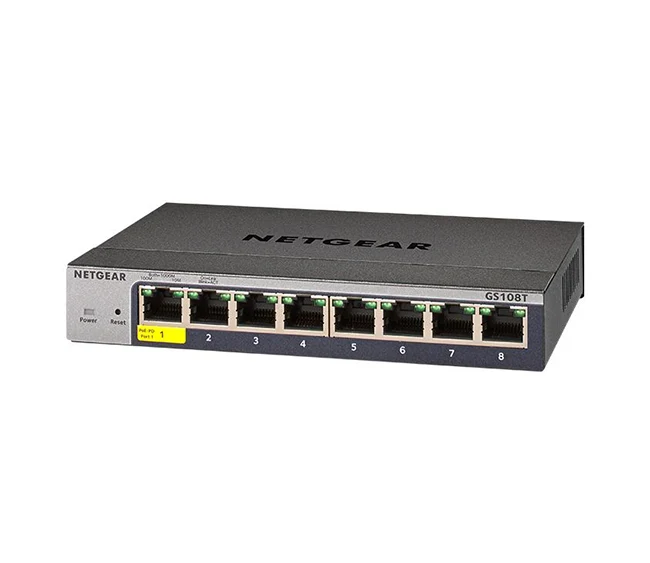

Netgear GS108T-300UKS 8-Port Gigabit Smart Managed Pro Switch

The Netgear GS108T-300UKS 8-Port Gigabit Smart Managed Pro Switch is a compact yet powerful network switch designed for growing businesses that require more control, security, and performance than unmanaged switches can provide. With 8 Gigabit Ethernet ports, advanced Layer 2 features, traffic prioritization, VLAN segmentation, and enhanced security, it delivers efficient and reliable connectivity. The GS108T series is built with a sturdy metal case, fanless design for silent operation, and intuitive management options including web interface and SNMP for IT admins.

---

Ports & Connectivity

• Ports: 8 × 10/100/1000 Mbps Gigabit RJ-45 Ethernet ports
• Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1Q, 802.1p
• Auto MDI/MDIX: Eliminates crossover cable requirements
• Auto Negotiation: Detects speed/duplex mode automatically
• Jumbo Frame Support: Up to 9 KB for large data transfers

Performance

• Switching Capacity: 16 Gbps (non-blocking)
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 8,000 entries
• Buffer Memory: 512 KB
• Latency: < 4 μs (64-byte packets)

Management & Features

• Smart Managed Pro: Advanced configuration and monitoring
• VLAN Support: IEEE 802.1Q VLAN tagging
• QoS (Quality of Service): 802.1p prioritization & DSCP-based traffic management
• Link Aggregation: IEEE 802.3ad (LACP) for higher bandwidth and redundancy
• Spanning Tree Protocol: IEEE 802.1D, 802.1w (RSTP) for loop prevention
• IGMP Snooping: Optimized multicast traffic handling
• Security: 802.1x authentication, ACLs (Access Control Lists), port security
• Management Options: Web GUI, SNMP v1/v2c/v3, RMON, and TFTP firmware upgrade

Energy Efficiency

• IEEE 802.3az Energy Efficient Ethernet (EEE) support
• Automatic power-down on idle ports or short cable lengths

Physical Specifications

• Dimensions (W × D × H): 158 × 101 × 27 mm
• Weight: ~0.45 kg
• Housing: Fanless, silent metal case
• Mounting Options: Desktop or wall-mountable
• LED Indicators: Power, Link/Activity per port

Power

• Power Supply: External adapter
• Max Power Consumption: ~7W

Warranty

• Limited Lifetime Hardware Warranty (region-dependent)

---

Key Features

• 8 auto-sensing Gigabit Ethernet ports with 16 Gbps switching capacity
• Smart Managed Pro features: VLAN, QoS, LAG, and security controls
• Silent fanless metal housing for durability and office environments
• Energy Efficient Ethernet for reduced power consumption
• Flexible management via web interface, SNMP, and RMON

---

Meta Description

Netgear GS108T-300UKS 8-Port Gigabit Smart Managed Pro Switch with VLAN, QoS, security, and link aggregation. Silent fanless design, 16 Gbps switching capacity, and advanced management for SMB networks. Datasheet
