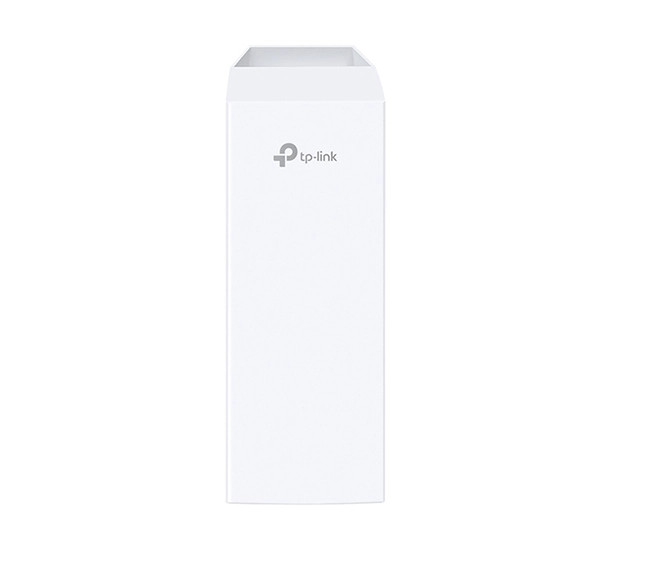

TP-Link 5GHz 300Mbps 13dBi Outdoor CPE - CPE510

TheTP-Link 5GHz 300Mbps 13dBi Outdoor CPE - CPE510 is a professional-grade outdoor CPE designed for high-speed, long-range wireless point-to-point (PtP) and point-to-multipoint (PtMP) connections in the 5 GHz band. With a built-in 13 dBi directional antenna, 300 Mbps wireless throughput, and a range of up to 15–20 km, it is ideal for outdoor internet distribution, surveillance systems, and enterprise links. Its rugged IPX5 weatherproof enclosure, high transmit power, and Pharos MAXtream TDMA technology ensure reliable performance in challenging outdoor environments.

Detailed Specifications

Wireless Standards:

• IEEE 802.11a/n

Frequency Band:

• 5.150–5.875 GHz (varies by region)

Wireless Speed:

• Up to 300 Mbps (802.11n, 40 MHz channel width)

Antenna:

• Built-in 13 dBi 2×2 MIMO directional antenna
• Beamwidth: H-Polarization 45°, V-Polarization 30°

Transmit Power:

• Adjustable up to 27 dBm (500 mW)

Range Performance:

• Point-to-point: up to 15 km+ (line-of-sight)
• Point-to-multipoint: up to 20 km with optimal deployment

Processor & Memory:

• Qualcomm Atheros Enterprise 560 MHz CPU
• 64 MB DDR2 RAM, 8 MB Flash

Operation Modes:

• Access Point (AP)
• Client (AP Client/Station)
• Repeater
• AP Router (WISP)
• Bridge

Ethernet Port:

• 1× 10/100 Mbps Shielded Ethernet Port (Passive PoE in)

PoE Power Supply:

• Passive PoE adapter included (up to 60 meters)
• Power: 16–27V DC via PoE

Management & Software Features:

• Pharos Control centralized management
• Pharos MAXtream TDMA technology for improved performance in multi-user environments
• QoS for traffic prioritization
• VLAN support
• Watchdog system for automatic recovery

Security:

• WPA/WPA2-PSK and WPA/WPA2-Enterprise
• Wireless MAC filtering
• Access control lists

Enclosure & Durability:

• Outdoor weatherproof enclosure (IPX5-rated)
• -30°C to 70°C operating temperature range
• 15 kV ESD and 6 kV lightning protection

Dimensions & Weight:

• 224 × 79 × 60 mm
• Weight: ~320 g

Key Features

• 5 GHz 300 Mbps wireless speed for interference-free long-range connections
• 13 dBi directional antenna for stable point-to-point and point-to-multipoint links
• Transmission distance of up to 20 km (environment dependent)
• Passive PoE for flexible deployment up to 60 m
• Weatherproof housing with built-in surge and ESD protection
• Centralized management via Pharos Control
