MikroTik RBmAPL-2nD (mAP lite)

KSh 6,300(KSh 7,308 Incl VAT)

Ultra-compact 2.4 GHz access point
Single Fast Ethernet port with PoE-in
MicroUSB power input
Up to 150 Mbps wireless throughput
Full RouterOS with Level 4 license
64 MB RAM and 16 MB Flash storage
Ideal for travel, toolkits, or temporary setups
Lightweight and wall/USB mountable

SKU: RBmAPL-2nDCategory: Networking Infrastructure

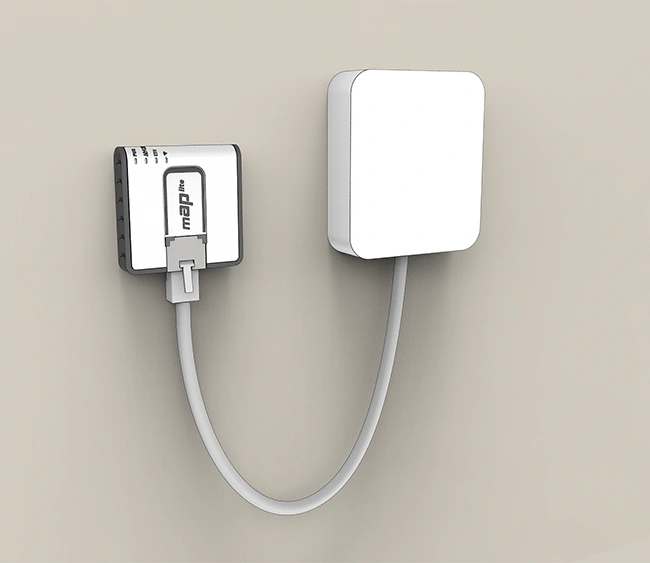

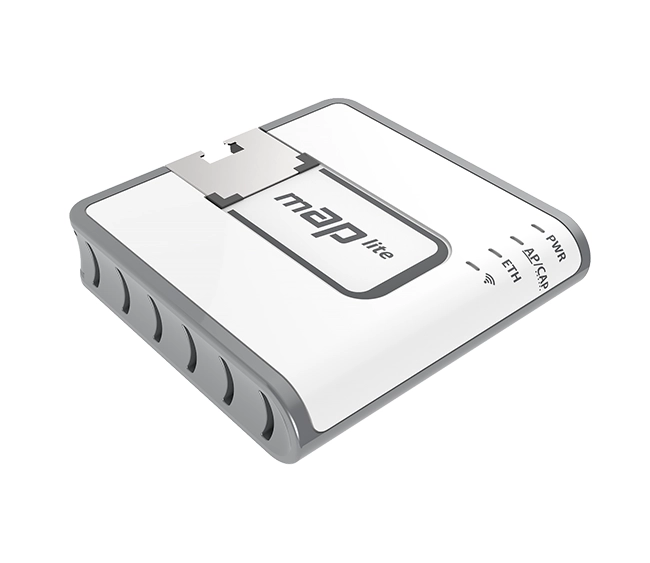

The MikroTik RBmAPL-2nD (mAP lite) is a compact, ultra-lightweight 2.4 GHz wireless access point designed for mobile or small-space installations. With a size no bigger than a matchbox, it fits seamlessly into any travel kit or network toolkit. It supports full RouterOS functionality with a Level 4 license and is ideal for quick setups, temporary access points, or as a portable wireless client device.

🧠 Core Hardware Specifications

Model: RBmAPL-2nD
Product Name: mAP lite
CPU: QCA9533, 650 MHz
Architecture: MIPS 32-bit
RAM: 64 MB
Storage: 16 MB Flash
Operating System: RouterOS
License Level: 4

📶 Wireless Specifications

Wireless Standard: 802.11b/g/n (Wi-Fi 4)
Band: 2.4 GHz only
Wireless Chains: 1×1 SISO
Max Data Rate: 150 Mbps
Antenna Gain: 1.5 dBi
Wireless Modes: AP, station, WDS, repeater, bridge

🌐 Networking Interfaces

Ethernet:
- 1 × 10/100 Mbps Fast Ethernet port
- Supports passive PoE input
Maximum Power Output: 22 dBm

⚡ Powering Options

Power Input:
- Passive PoE-in (5 V–5.6 V via Ethernet)
- MicroUSB input (5 V)
Power Consumption: ~1.5 W (very low power)
Power Adapter: Not included (USB-powered)

📦 Physical & Environmental

Dimensions: 48 × 49 × 11 mm
Weight: ~20 g
Mounting: Comes with wall mount base or can be directly attached to USB ports
Temperature Range: -10°C to +70°C
Cooling: Passive
Enclosure: Plastic body, white

🔐 Features & Management

RouterOS Functionality: Full L4 RouterOS capabilities
Firewall, NAT, Routing: Supported
Wireless Tools: Access point, repeater, scan, snoop, bridge
Management: Winbox, WebFig, SSH, Telnet, SNMP
VPN: PPTP, L2TP, IPsec (basic), OpenVPN (limited)
LED Indicators: Power and wireless status

📝 Meta Description

MikroTik RBmAPL-2nD (mAP lite) is a compact 2.4 GHz Wi-Fi access point with 150 Mbps speed, Fast Ethernet, microUSB/PoE power options, and RouterOS Level 4 license—ideal for travel, portable Wi-Fi, or small network deployments. Datasheet
