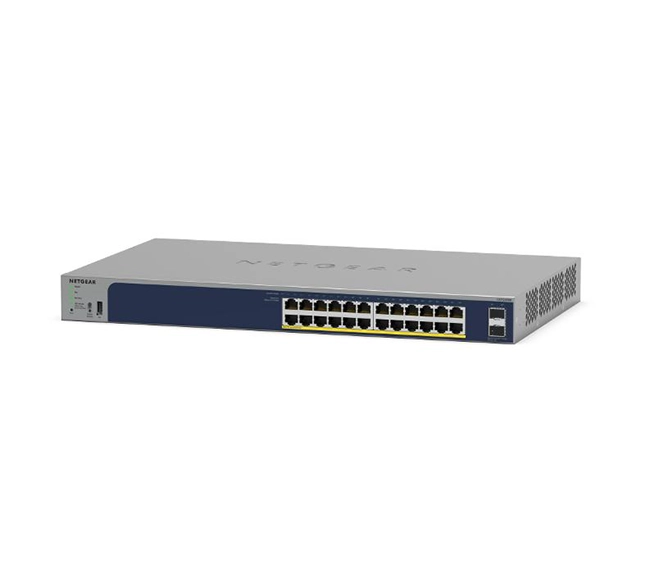

Netgear GS724TPP-300UKS 24-Port Gigabit PoE+ Smart Managed Pro Switch

The Netgear GS724TPP-300UKS 24-Port Gigabit PoE+ Smart Managed Pro Switch is a 24-port Gigabit Smart Managed Pro Switch with full PoE+ support, offering businesses a flexible and scalable solution for high-power devices. With advanced Layer 2 management features, robust PoE+ capability, and reliable Gigabit connectivity, this switch is ideal for powering wireless access points, IP cameras, VoIP phones, and other networked devices. It also includes a generous PoE budget of 380W, ensuring efficient power distribution across all ports.

---

Ports & Connectivity

• Total Ports: 24 × 10/100/1000 Mbps RJ-45 Gigabit Ethernet ports (all PoE+)
• PoE Support:
  • IEEE 802.3af (PoE)
  • IEEE 802.3at (PoE+)
• Maximum Power per Port: Up to 30W
• Total PoE Budget: 380W shared across 24 ports

---

Performance

• Switching Capacity: 48 Gbps non-blocking
• Forwarding Rate: 35.7 Mpps
• MAC Address Table: 8,000 entries
• Jumbo Frames: Supported (up to 9,216 bytes)

---

Management Features (Smart Managed Pro)

• VLAN (802.1Q, port-based, protocol-based)
• Advanced QoS for prioritizing voice, video, and data traffic
• IGMP Snooping v1/v2/v3 for multicast efficiency
• Link Aggregation (LAG)
• Port Mirroring and Loop Detection
• Static Routing (Layer 3 Lite)
• Access Control Lists (ACLs)
• SNMP v1, v2c, v3
• Web-based GUI and CLI for flexible management

---

Power & Consumption

• PoE Budget: 380W shared across 24 PoE+ ports
• Power Consumption (Max): ~410W

---

Design & Build

• Enclosure: Metal housing, rack-mountable (rack kit included)
• Cooling: Active cooling (fan-based)
• LED Indicators: Link/Activity, PoE status, Power

---

Physical Specifications

• Dimensions (W × D × H): 440 × 257 × 43 mm (1U rack-mount)
• Weight: ~4.1 kg

---

Environmental Conditions

• Operating Temperature: 0°C to 50°C
• Storage Temperature: –20°C to 70°C
• Operating Humidity: 10%–90% non-condensing

---

Warranty & Support

• Warranty: Netgear Limited Lifetime Hardware Warranty
• Support: Lifetime 24/7 technical support (with registration), next-business-day hardware replacement

---

Typical Use Cases

• Deploying high-density PoE+ networks for IP surveillance (CCTV systems)
• Powering wireless access points in enterprise or campus networks
• Supporting VoIP systems with full PoE coverage
• Suitable for SMBs and mid-sized businesses needing managed features with reliable PoE

---

Key Features

• 24 × Gigabit PoE+ ports with 380W PoE budget
• Smart Managed Pro features: VLANs, QoS, ACLs, IGMP snooping
• Robust security and traffic management
• Rack-mountable 1U form factor with fan cooling
• Ideal for SMBs needing advanced PoE+ capabilities

---
