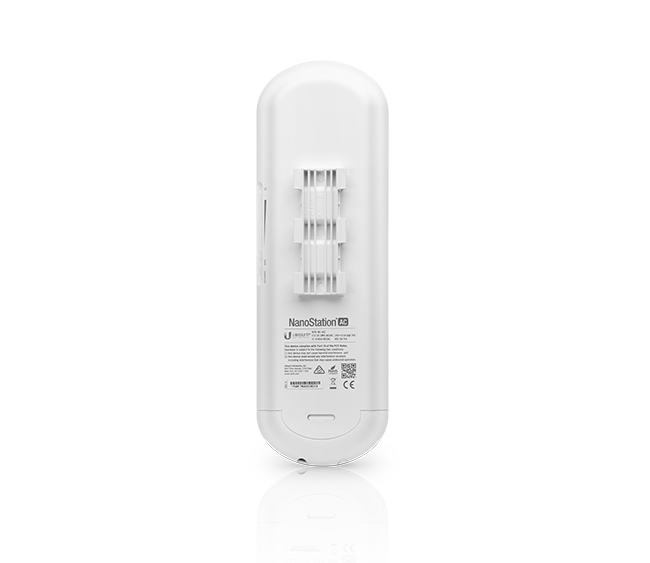

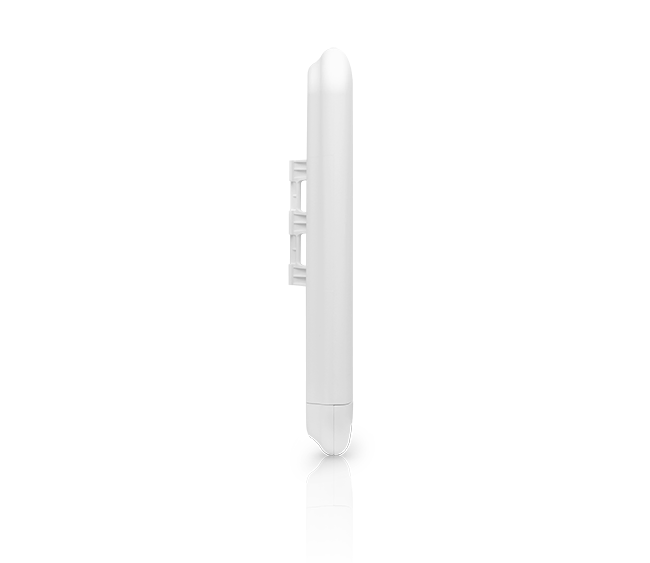

Ubiquiti airMAX NanoStation NS 5AC
KSh 20,575(KSh 23,867 Incl VAT)
- Integrated 16 dBi directional antenna in weather-resistant housing
- Dual Ethernet ports with PoE-in and passthrough
- 450+ Mbps real-world throughput on airMAX ac protocol
- Wide channel support (10–80 MHz) and dual linear polarization
- Rugged design (–40 °C to +70 °C), ±24 kV ESD protection
- Convenient airOS 8 management with Wi-Fi tools and indicators
SKU: NS-5ACCategory: Networking Infrastructure
Ubiquiti airMAX NanoStation NS 5AC is a high-performance outdoor airMAX ac CPE designed for robust point-to-multipoint and point-to-point wireless bridging. Featuring a built-in 16 dBi directional antenna, dual Gigabit Ethernet ports with PoE passthrough, and support for up to 450+ Mbps real throughput, it delivers reliable long-range connectivity.
Its rugged, weather-resistant housing, ±24 kV ESD protection, and intuitive airOS 8 management make it ideal for outdoor deployments in challenging environments.
Detailed Specifications for Ubiquiti NanoStation 5AC (NS‑5AC)
Mechanical- Dimensions (without mount): 257 × 84 × 41 mm
- Dimensions (with mount): 257 × 84 × 30 mm
- Weight: 233 g
- Enclosure: UV-resistant polycarbonate; outdoor-rated
- Mounting: Includes pole and wall brackets
Networking & Power
- Ports: 2 × Gigabit RJ45
- Port 1: PoE-in (supports 802.3af or passive 24 V)
- Port 2: PoE passthrough (powers external device)
- Power adapter: 24 V, 0.5 A Gigabit PoE adapter included
- Supported voltage: 22–27 V DC or 44–54 V DC
- Max power consumption: 9 W
- Surge/ESD protection: ±24 kV contact/air
RF & Antenna
- Frequency range: 5150–5875 MHz (global); U-NII sub-bands in US/CA
- Antenna gain: 16 dBi
- Beamwidth: 45° horizontal and vertical; elevation 45°
- Polarization: Dual linear; cross-polar isolation ≥20 dB; VSWR ≤1.6:1
- Channel widths: 10/20/30/40/50/60/80 MHz
Ubiquiti airMAX NanoStation NS 5AC Hardware & Performance
- CPU: Atheros MIPS 74Kc (~560 MHz)
- Memory: 64 MB DDR2
- Flash storage: 8 MB
- Real throughput: ~450+ Mbps TCP/IP; up to ~450 Mbps in PtP links
Environmental
- Operating temp: –40 °C to +70 °C; humidity 5–95% non-condensing
- Certifications: CE / FCC / IC; NDAA compliant
Management
- OS: airOS 8, with airView spectrum analyzer, airMagic channel tool
- LEDs: Power, ETH1, ETH2, and four-level signal strength indicators
- Features: automatic ACK timing, Tx power control, WPA2-AES security
Conclusion
Ubiquiti airMAX NanoStation NS 5AC is an outdoor airMAX ac CPE with 16 dBi antenna, dual Gigabit Ethernet with PoE passthrough, 450+ Mbps real throughput, and rugged, weatherproof design. DatasheetRelated Products
