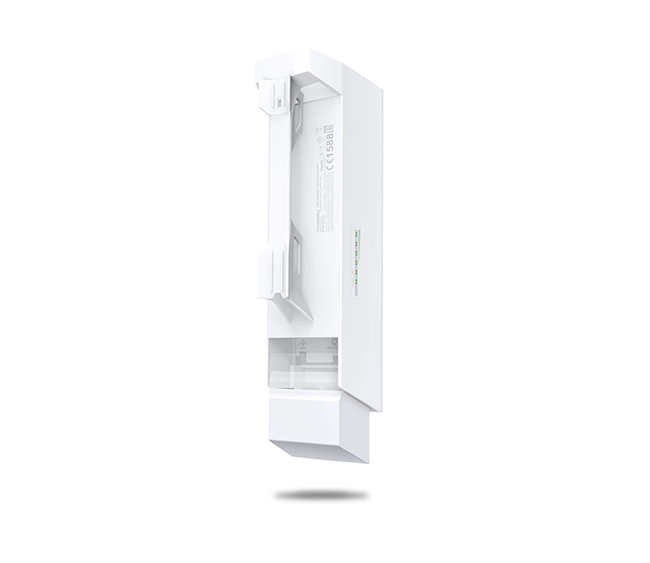

TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE - TL-CPE210

KSh 5,500(KSh 6,380 Incl VAT)

Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 25dBm/500mw
System-level optimizations for more than 5km long range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
Centralized Management System – Pharos Control
AP / Client / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

SKU: TL-CPE210Category: Networking Infrastructure

The TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE - TL-CPE210 is a high-performance outdoor CPE (Customer Premises Equipment) designed for long-distance wireless data transmission using the 2.4 GHz band. With a built-in 9 dBi directional antenna, weatherproof enclosure, and up to 300 Mbps wireless speed, it is ideal for point-to-point (PtP) and point-to-multipoint (PtMP) connections, CCTV coverage, and outdoor Wi-Fi distribution. Its Pharos Control software enables centralized management, making it suitable for WISPs, farms, schools, and industrial sites.

Detailed Specifications

Wireless Standards:

IEEE 802.11b/g/n

Frequency Band:

2.4 GHz (2400–2483.5 MHz)

Wireless Speed:

Up to 300 Mbps (802.11n, 40 MHz channel width)

Antenna:

Built-in 9 dBi 2×2 MIMO directional antenna
Beamwidth: H-Polarization 65°, V-Polarization 35°

Transmit Power:

Adjustable up to 27 dBm (500 mW)

Range Performance:

Point-to-point distance: up to 5 km+ (environment dependent)

Processor & Memory:

Qualcomm Atheros Enterprise 560 MHz CPU
64 MB DDR2 RAM, 8 MB Flash

Operation Modes:

Access Point (AP)
Client (AP Client/Station)
Repeater
AP Router (WISP)
Bridge

Ethernet Port:

1× 10/100 Mbps Shielded Ethernet Port (Passive PoE in)

PoE Power Supply:

Passive PoE adapter included (up to 60 meters)
Power: 16–27V DC via PoE

Management & Software Features:

Pharos Control centralized management
Pharos MAXtream TDMA technology for improved performance in multi-user environments
QoS for bandwidth control
VLAN support
Watchdog system for self-recovery

Security:

WPA/WPA2-PSK and WPA/WPA2-Enterprise
Wireless MAC filtering
Access control lists

Enclosure & Durability:

Outdoor weatherproof enclosure (IPX5-rated)
-30°C to 70°C operating temperature range
15 kV ESD and 6 kV lightning protection

Dimensions & Weight:

224 × 79 × 60 mm
Weight: ~320 g

Key Features

300 Mbps 2.4 GHz wireless speed for long-range outdoor links
9 dBi high-gain directional antenna for focused coverage
Up to 5 km+ wireless transmission range in clear line-of-sight
Passive PoE for flexible deployment up to 60 m
Durable, weatherproof enclosure with built-in lightning protection
Multiple operating modes with centralized management via Pharos Control

Meta Description

TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE - TL-CPE210 with 2.4 GHz 300 Mbps speed, 9 dBi directional antenna, PoE, and weatherproof design. Ideal for long-range Wi-Fi, CCTV, and WISP networks. Datasheet
