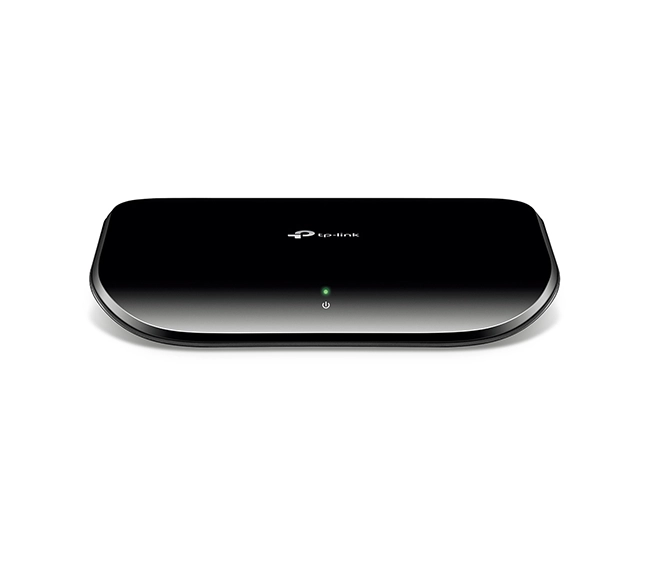

TP-Link 5-Port Gigabit Desktop Switch (TL-SG1005D)

The TP-Link 5-Port Gigabit Desktop Switch (TL-SG1005D) is a high-performance 5-port unmanaged Gigabit switch designed for users who need fast and efficient data transfer. It's ideal for small offices, home offices, or any environment that requires high-speed networking. With plug-and-play simplicity, energy-efficient technology, and fanless silent operation, it delivers performance without complexity.

---

🧠 Hardware Specifications

• Model: TL-SG1005D
• Ports: 5 × 10/100/1000 Mbps RJ45 Ethernet ports
• Switching Capacity: 10 Gbps
• Forwarding Rate: 7.44 Mpps
• MAC Address Table: 8K entries
• Buffer Memory: 1.5 Mbit
• Jumbo Frame Support: Up to 15 KB
• Flow Control: IEEE 802.3x for full-duplex; backpressure for half-duplex
• Switching Method: Store-and-forward
• Auto-Negotiation: Supported
• Auto MDI/MDIX: Supported on all ports

---

🌐 Networking Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x

---

⚡ Power & Efficiency

• Power Supply: External 9V DC / 0.6A adapter
• Maximum Power Consumption: Approx. 3.0 W
• Power Saving: Green Ethernet Technology — reduces power consumption based on cable length and link status
• Energy Saving Rate: Up to 85%

---

📦 Physical Specifications

• Dimensions: 140 × 88 × 23 mm (5.5 × 3.5 × 0.9 in)
• Enclosure Material: Plastic
• Fanless Design: Yes
• Mounting Options: Desktop and wall-mountable
• LED Indicators: Power, Link/Activity (per port)

---

🌡 Environmental

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10%–90% RH non-condensing
• Storage Humidity: 5%–90% RH non-condensing

---

📝 Meta Description

TP-Link 5-Port Gigabit Desktop Switch (TL-SG1005D) is a 5-port Gigabit Ethernet switch with 10 Gbps switching capacity, plug-and-play setup, Green Ethernet technology for power saving, and silent fanless design. Ideal for small offices or high-speed home networks. Datasheet
