Netgear GS116PP-100EUS 16-Port Gigabit PoE+/PoE Unmanaged Switch

The Netgear GS116PP-100EUS 16-Port Gigabit PoE+/PoE Unmanaged Switch is a 16-port Gigabit unmanaged switch with full PoE+ support on all ports, delivering up to 30W per port and a total PoE budget of 183W. Designed for small and medium businesses, it provides reliable connectivity for IP cameras, access points, VoIP phones, and IoT devices without requiring complex setup or management. Its fanless, silent operation makes it ideal for office, retail, and home business environments.

---

Ports & Connectivity

• Total Ports: 16 × Gigabit Ethernet (10/100/1000 Mbps) RJ-45 ports
• PoE Support:
  • IEEE 802.3af (PoE)
  • IEEE 802.3at (PoE+)
• Max Power per Port: Up to 30W
• Total PoE Budget: 183W

---

Performance

• Switching Capacity: 32 Gbps non-blocking
• Forwarding Rate: 23.8 Mpps
• MAC Address Table: 4,000 entries
• Jumbo Frame Support: Up to 9,720 bytes

---

Power & Consumption

• PoE Power Budget: 183W total shared across 16 ports
• Max Power Draw: ~200W

---

Design & Build

• Enclosure: Metal, desktop or rack-mountable form factor
• Cooling: Fanless, silent operation
• Mounting Options: Desktop, wall-mount, rack-mount (rack kit included)
• LED Indicators: Power, Link/Activity, PoE status

---

Physical Specifications

• Dimensions (W × D × H): 286 × 102 × 27 mm
• Weight: ~1.12 kg

---

Environmental Conditions

• Operating Temperature: 0°C to 40°C
• Storage Temperature: –20°C to 70°C
• Humidity: 10%–90% non-condensing
• Noise Level: 0 dBA (fanless)

---

Warranty & Support

• Warranty: Netgear Limited Lifetime Hardware Warranty
• Support: Lifetime 24/7 chat support, Next Business Day replacement (registration required)

---

Typical Use Cases

• Powering IP surveillance cameras in offices or retail stores
• Supplying PoE to wireless access points across SMB networks
• Supporting VoIP phone deployments in call centers or enterprises
• Small offices requiring plug-and-play PoE networking with no management overhead

---

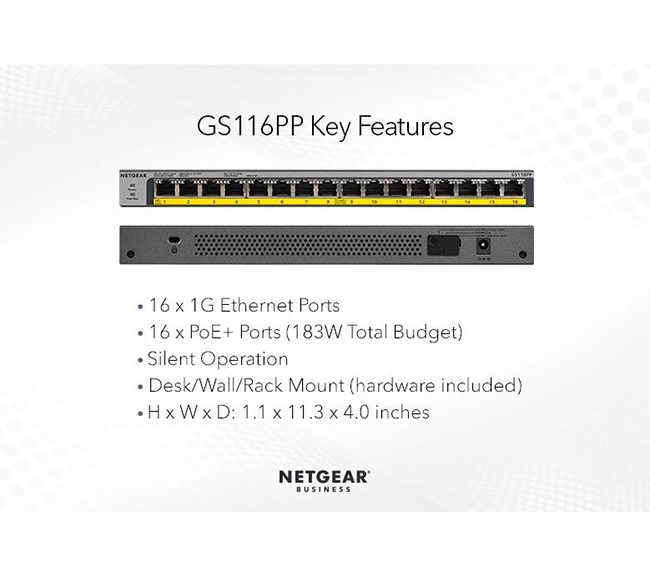

Key Features

• 16 × Gigabit Ethernet RJ-45 ports with PoE+ support
• Total 183W PoE budget, up to 30W per port
• Unmanaged, plug-and-play setup with no configuration required
• Silent, fanless design suitable for quiet environments
• Desktop, wall, or rack-mount flexible installation

---
