Ubiquiti UniFi Protect ViewPort (UFP-Viewport)

The Ubiquiti UniFi Protect ViewPort (UFP-Viewport) is a compact HDMI appliance designed to display live feeds from UniFi Protect cameras directly onto a monitor or TV. It's particularly useful for setups requiring constant surveillance without the need for a dedicated computer or browser session.

---

🔧 Key Features

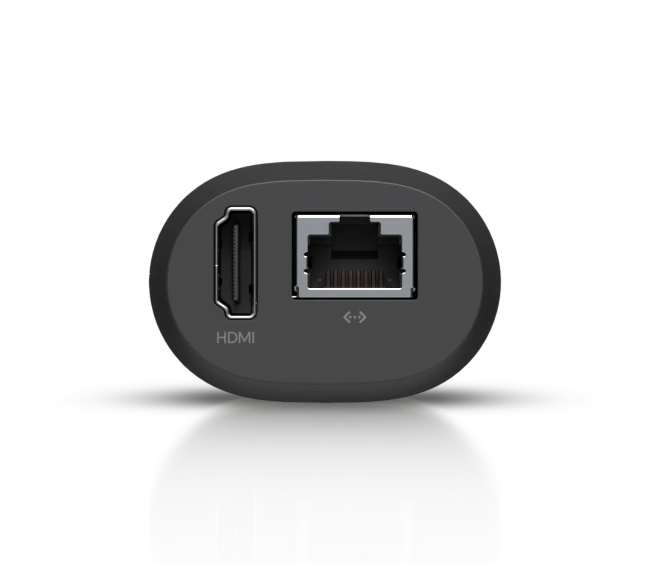

• HDMI Output: Supports up to 4K resolution at 30 FPS, delivering high-quality video streams to your display .
• Multi-Camera Display: Capable of displaying up to 16 camera feeds simultaneously in a customizable grid layout .

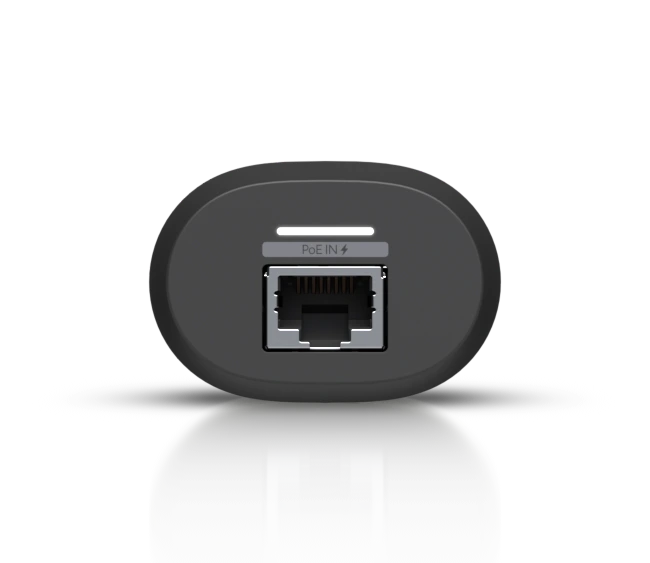

• Power over Ethernet (PoE): Simplifies installation by combining power and data over a single Ethernet cable .
• Compact Design: With dimensions of 157 x 52 x 37 mm and weighing approximately 230 g without the mount, it's designed for discreet installation .
• Flexible Mounting Options: Includes hardware for wall mounting, VESA mounting on the back of a monitor/TV, or surface mounting using double-sided tape .

---

⚙️ Technical Specifications

• Processor: Octa-core ARM®
• Memory: 4 GB Low Power DDR4X
• Networking Interface: 1x GbE RJ45 port
• Power Method: 802.3af PoE
• Maximum Power Consumption: 9.5W
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Enclosure Material: Polycarbonate
• Bluetooth: 5.0
• ESD/EMP Protection: Air: ±8kV, Contact: ±4kV .

---

🛠️ Setup and Configuration

1. Physical Connection:
   • Connect the UFP-Viewport to your network using an Ethernet cable connected to a PoE switch or injector.
   • Use an HDMI cable to connect the device to your display.
2. Mounting:
   • Choose a suitable mounting option: wall mount, VESA mount, or surface mount using the provided accessories.
3. Adoption into UniFi Protect:
   • Power on the device; the LED should display a solid white light indicating it's ready for configuration.
   • Access the UniFi Protect application, navigate to the Devices section, and locate the ViewPort.
   • Click on the device and follow the on-screen instructions to adopt it into your system.
4. Live View Configuration:
   • Within UniFi Protect, create or select a Live View layout.
   • Assign cameras to the layout, keeping in mind the maximum of 16 simultaneous streams.
   • Apply the Live View to the ViewPort device.

---

📦 What's Included

• UFP-Viewport Device
• HDMI Cable
• Mounting Bracket and Accessories
• Quick Start Guide
