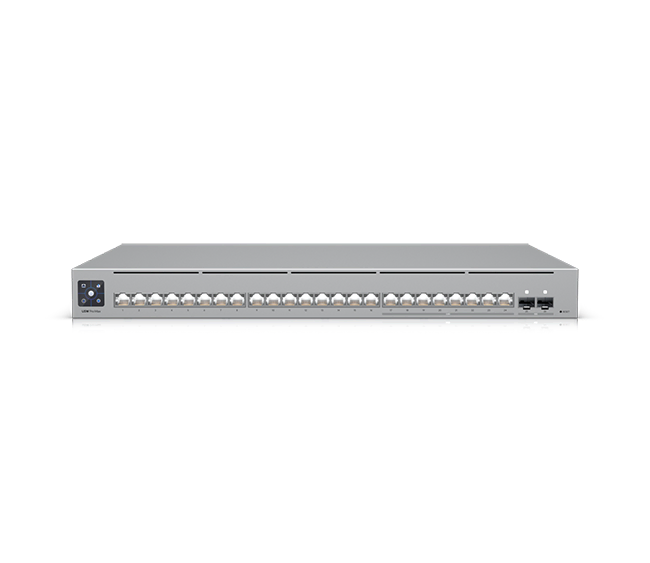

Ubiquiti UniFi USW Pro Max 24 Switch (PoE & Non-PoE)

Here are the detailed specifications for the UniFi USW‑Pro‑Max‑24 (non‑PoE) and USW‑Pro‑Max‑24‑PoE:

---

🛠️ USW‑Pro‑Max‑24 (Non‑PoE)

• Ports
  • 16 × 1 GbE RJ45
  • 8 × 2.5 GbE RJ45
  • 2 × 10 GbE SFP+
• Performance
  • Switching capacity: 112 Gbps
  • Non‑blocking throughput: 56 Gbps
  • Forwarding rate: 83 Mpps
• Layer 3
  • Static + inter‑VLAN routing, DHCP server/relay
  • VLAN support: 1,000
  • MAC table: 16,000 entries; ARP: 6,000 entries
  • IPv4 ACLs: 128; MAC ACLs: 128
• Layer 2 & QoS
  • LACP, STP/RSTP, QoS, IGMP snooping & advanced config, 802.1X, port mirroring, jumbo frames, LLDP‑MED, storm control, etc.
• Hardware
  • 1.3″ touchscreen display, Etherlighting™ per port

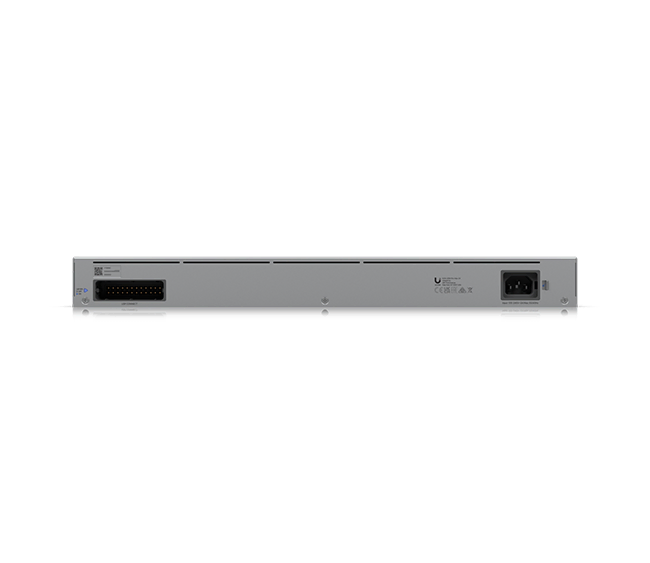

  • Rack‑mountable (1U), DC power‑backup ready
• Power
  • Internal 60 W AC/DC PSU (100–240 V AC)
  • Max power consumption: 50 W (excluding PoE, bord power)
  • Heat dissipation: ~170.6 BTU/hr
• Physical
  • Size: 442 × 325 × 44 mm; Weight: ~4.2 kg
• Operating Conditions & Compliance
  • Temp: –5 °C to 40 °C; Humidity: 10–90% non‑condensing
  • Certifications: CE, FCC, IC, Anatel; NDAA compliant
• Management
  • Requires UniFi Network 8.0.24+

---

⚡ USW‑Pro‑Max‑24‑PoE

All the specs of the non‑PoE model plus:

• PoE Port Breakdown
  • 8 × 1 GbE PoE+
  • 8 × 1 GbE PoE++
  • 8 × 2.5 GbE PoE++
  • 2 × 10 GbE SFP+
• Power Budget
  • Total PoE budget: 400 W
  • Per-port max: 15.4 W (PoE), 32 W (PoE+), 64 W (PoE++)
• Internal PSU
  • 550 W AC/DC power supply (100–240 V AC)
  • Max power consumption: 450 W (with PoE), 50 W (no PoE)

---

📊 Summary Comparison

Feature	USW‑Pro‑Max‑24	USW‑Pro‑Max‑24‑PoE
RJ45 Ports	16×1 Gb + 8×2.5 Gb	16×1 Gb + 8×2.5 Gb (All PoE capable)
PoE Support	❌	✅ 8×PoE+, 16×PoE++
PoE Budget	N/A	400 W total
SFP+ Uplinks	2×10 GbE	2×10 GbE
Switching Capacity	112 Gbps	112 Gbps
Throughput	56 Gbps, 83 Mpps	56 Gbps, 83 Mpps
Power Supply	60 W AC/DC internal	550 W AC/DC internal
Dimensions & Weight	Same	Same (heavier ~5.1 kg)
Display, Rack Mounting	Same (1.3″ screen, 1U)	Same
Operating Environment	Same	Same
Management	UniFi Network 8.0.24+	UniFi Network 8.0.24+

---

✅ Which Should You Choose?

• Non-PoE model is ideal for pure data aggregation or uplink usage—quiet, simpler, with lower energy use.
• PoE model is perfect for powering APs, VoIP phones, cameras, or even smaller PoE switches—flexible and powerful with its 400 W budget.

---
