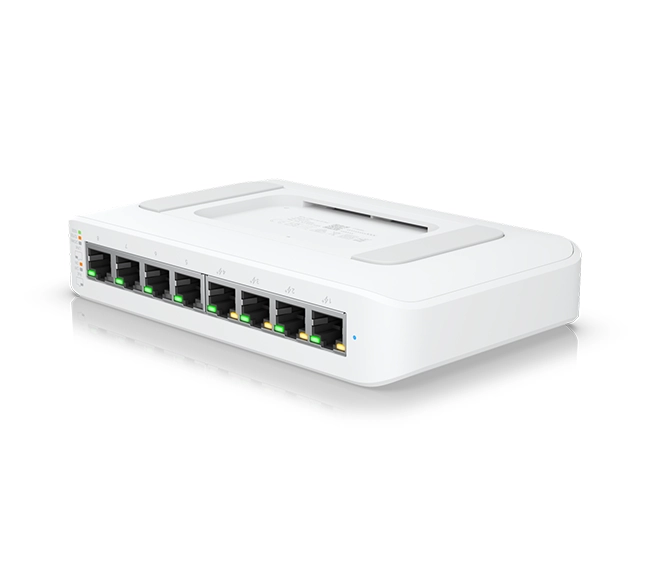

Ubiquiti UniFi Lite 8 PoE (USW-Lite-8-PoE)

The UniFi USW-Lite-8-PoE is a compact 8-port Gigabit switch with 4 PoE+ ports, 52W PoE budget, fanless design, and full Layer 2 management via UniFi Controller—ideal for small networks and silent setups. Here are the detailed specifications for the UniFi USW‑Lite‑8‑PoE, based on Ubiquiti’s official datasheet:

---

🔌 Ports & PoE

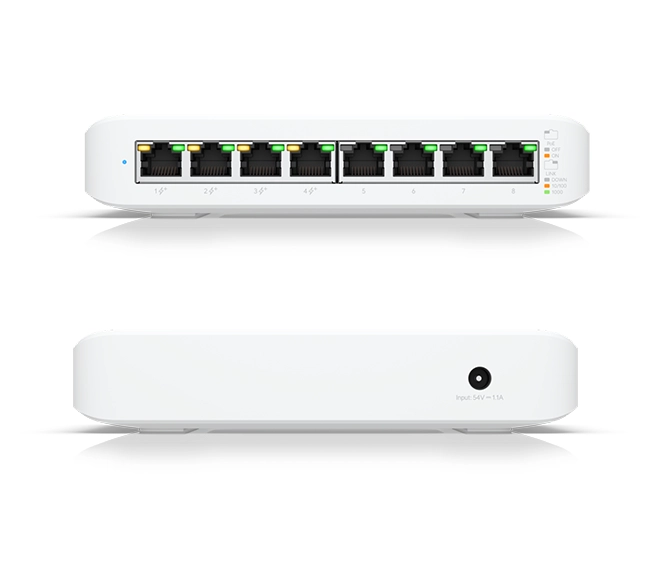

• 8 × Gigabit RJ45 ports (10/100/1000 Mbps)
• 4 ports support PoE+ (802.3af/at) delivering up to 30 W per port, 52 W total PoE budget
• External 54 V⎓1.1 A (60 W) power adapter included

---

⚡ Performance

• Switching capacity: 16 Gbps
• Non-blocking throughput: 8 Gbps
• Forwarding rate: ~12 Mpps

---

🔄 Layer 2 Features

• Supports up to 1,000 VLANs, LACP port aggregation, STP/RSTP, advanced IGMP snooping & querier, jumbo frames, 802.1X, ACLs, DHCP snooping/guarding, port mirroring, QoS, storm control, LLDP‑MED, voice VLAN, loop protection

---

📐 Hardware & Physical

• Dimensions: 99.6 × 163.7 × 31.7 mm
• Weight: ~295 g
• Fanless/passive cooling, polycarbonate enclosure, desktop or wall mountable with kit included

---

🔌 Power & Efficiency

• Maximum power draw (device only): ~8 W
• Power budget with PoE: up to 60 W total (8 W device + 52 W PoE)
• Heat dissipation: ~27 BTU/hr

---

🌡️ Environmental & Compliance

• Operating temperature: –15 °C to 40 °C
• Humidity: 10–90% non-condensing
• Certifications: CE, FCC, IC, NDAA compliant

---

🧠 Management

• Fully managed via UniFi Network Controller (v7.2.94+)

---

🧾 Quick Specs Overview

Feature	Specification
RJ45 Ports	8 × 1 GbE (4 PoE+)
PoE Budget	52 W total; 30 W max per port
Switching	16 Gbps / 8 Gbps throughput / 12 Mpps
Cooling	Fanless, silent operation
Power Adapter	54 V DC, 60 W included
Dimensions	99.6 × 163.7 × 31.7 mm; 295 g
Layer 2 Features	VLANs, LACP, QoS, ACLs, jumbo, IGMP
Certs	NDAA, CE, FCC, IC
