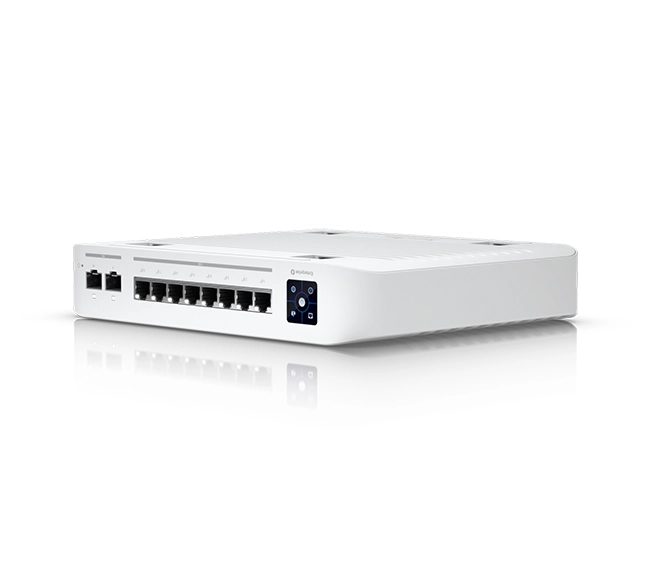

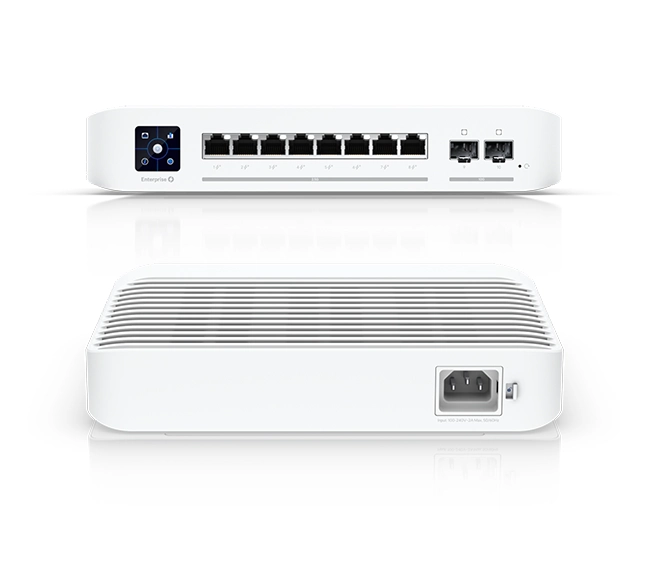

Ubiquiti UniFi Enterprise 8 PoE (USW-Enterprise-8-PoE)

The UniFi USW-Enterprise-8-PoE is a compact 2.5 GbE Layer 3 switch with PoE+, 10G SFP+ uplinks, and a 120 W PoE budget. Perfect for high-speed networks, it features touchscreen controls and full UniFi integration. Here are the detailed specifications for the UniFi USW‑Enterprise‑8‑PoE as provided by Ubiquiti’s official datasheet:

---

🛠 USW‑Enterprise‑8‑PoE – In‑Depth Specs

🔌 Ports & PoE

• 8 × 2.5 GbE RJ45 ports – all support 802.3af/at PoE+ (up to 32 W per port)
• 2 × 10 GbE SFP+ uplinks for high-speed fiber connections
• Total PoE budget: 120 W – powered by internal 150 W PSU

---

⚡ Performance

• Switching capacity: 80 Gbps
• Non-blocking throughput: 40 Gbps
• Forwarding rate: ~60 Mpps

---

🔄 Layer 2 & 3 Features

• Layer 2: 1,000 VLANs, LACP, STP/RSTP, IGMP snooping, jumbo frames, 802.1X, ACLs, VLAN isolation, QoS, LLDP-MED, DHCP snooping, port mirroring, storm control
• Layer 3: DHCP server/relay, inter‑VLAN and static routing on device

---

🧩 Hardware & Management

• 1.3″ touchscreen with UniFi AR interface
• Enclosure: Polycarbonate chassis, desktop/wall-mount design (200 × 248 × 44 mm, 2.4 kg)
• ESD/EMP protection: ±16 kV air / ±12 kV contact
• Management: UniFi Network Controller (v6.3.51+) via in-band Ethernet

---

⚡ Power & Thermal

• Internal AC/DC power supply: 150 W (100–240 V AC, 2 A max)
• Idle power draw: ~30 W (no PoE); Max: ~150 W (with PoE load)
• Heat output: ~102 BTU/hr (excluding PoE)
• Cooling: Passive (fanless) design

---

🌡 Environmental & Certifications

• Operating range: –5 °C to 45 °C; 10–90% non-condensing RH
• Certifications: CE, FCC, IC, Anatel; NDAA compliant



---

🔑 Quick Feature Summary

• 8 × 2.5 GbE RJ45 + 2 × 10 GbE SFP+
• 120 W PoE+ (32 W per port) budget
• Full Layer 2 & Layer 3 support
• 1.3″ touchscreen with AR interface
• Passive cooling / compact polycarbonate form
• Managed via UniFi Network Controller (v6.3.51+)

---

Datasheet
