UniFi U7 Pro Wall (U7-Pro-Wall)
KSh 35,500(KSh 41,180 Incl VAT)
- Wi-Fi 7 (802.11be) – Next-gen wireless standard for ultra-fast speeds.
- Tri-band – Operates on 2.4 GHz, 5 GHz, and 6 GHz bands.
- High Throughput – Up to 10.7 Gbps total aggregate speed.
- 2.5 GbE Port – Supports high-speed wired backhaul.
- Wall-Mount Design – Sleek, discreet, and space-saving.
- PoE+ Powered (802.3at) – Simplified installation with no separate power.
- Supports 300+ clients – Ideal for dense environments.
- Advanced Security – WPA3, VLANs, guest isolation, and more.
- UniFi Network Integration – Managed via UniFi Controller (v8.1+).
- Compact Size – 150 x 103 x 36 mm; suitable for modern interiors.
SKU: U7-Pro-WallCategory: Networking Infrastructure

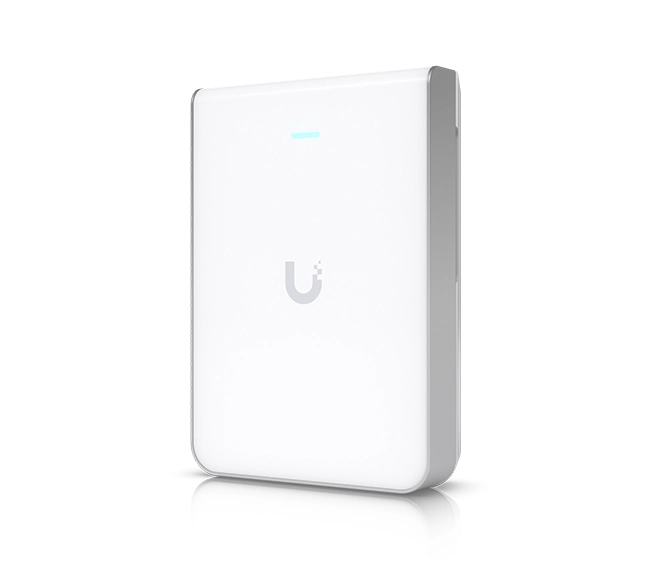

The UniFi U7 Pro Wall (U7-Pro-Wall) is a high-performance, wall-mounted Wi-Fi 7 (802.11be) access point designed for both enterprise and advanced home networks. It offers tri-band coverage across the 2.4 GHz, 5 GHz, and 6 GHz bands, delivering robust connectivity and high throughput.
The UniFi U7 Pro Wall is ideal for environments requiring high-speed, reliable wireless connectivity, such as offices, educational institutions, and smart homes. Its support for the latest Wi-Fi 7 standard ensures future-proof performance and compatibility.
📡 Wireless Performance
- Wi-Fi Standard: Wi-Fi 7 (802.11be)
- Bands: 2.4 GHz, 5 GHz, 6 GHz
- MIMO Configuration: 2x2 MU-MIMO on all bands
- Maximum Data Rates:
- 2.4 GHz: 688 Mbps
- 5 GHz: 4.3 Gbps
- 6 GHz: 5.7 Gbps
- Total Aggregate Throughput: Up to 10.7 Gbps
- Spatial Streams: 6
- Coverage Area: Up to 140 m² (1,500 ft²)
- Concurrent Clients: 300+
- Antenna Gain:
- 2.4 GHz: 4 dBi
- 5 GHz: 5 dBi
- 6 GHz: 6 dBi
- Transmit Power:
- 2.4 GHz: 22 dBm
- 5 GHz: 26 dBm
- 6 GHz: 23 dBm
- Supported Channel Bandwidths: 20/40/80/160/240/320 MHz
⚙️ Hardware & Design
- Dimensions: 150 x 103 x 36 mm (5.9 x 4.1 x 1.4")
- Weight: 580 g (1.3 lb)
- Enclosure Material: Polycarbonate and aluminum

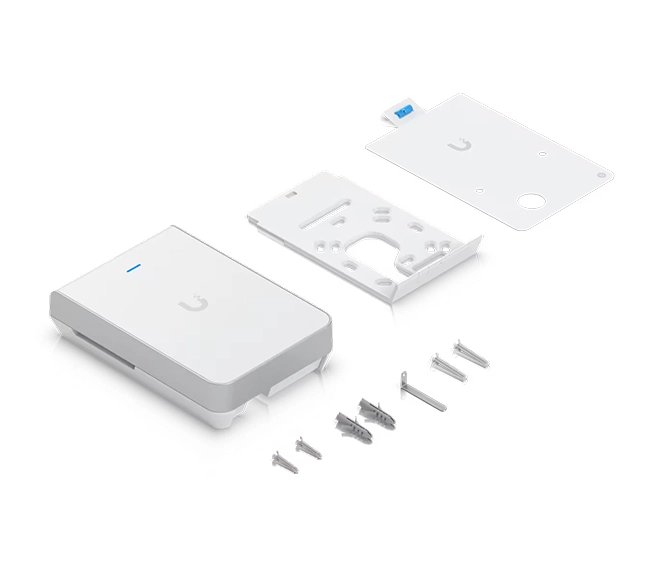

- Mounting Options: Wall mount included; optional flush mount and table stand accessories available
- Networking Interface: 1x 1/2.5 GbE RJ45 port
- Power Method: PoE+ (802.3at)
- Maximum Power Consumption: 22W
- Operating Temperature: -30 to 60°C (-22 to 140°F)
- Operating Humidity: 5 to 95% non-condensing
- Certifications: CE, FCC, IC
🔐 Software & Security Features
- Wi-Fi Standards Supported: 802.11a/b/g/n/ac/ax/be
- Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3), PPSK
- BSSID Support: 8 per radio
- VLAN Support: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest Traffic Isolation: Supported
- Supported Data Rates:
- 802.11a: 6–54 Mbps
- 802.11b: 1–11 Mbps
- 802.11g: 6–54 Mbps
- 802.11n: 6.5 Mbps to 300 Mbps
- 802.11ac: 6.5 Mbps to 1.7 Gbps
- 802.11ax: 7.3 Mbps to 2.4 Gbps
- 802.11be: 7.3 Mbps to 5.7 Gbps
🛠️ Management & Compatibility
- Management Interface: Ethernet
- LED Indicators: White/Blue
- Reset Button: Factory reset
- UniFi Network Application: Version 8.1 and later
- UniFi OS: Version 3.2 and later
The UniFi U7 Pro Wall is ideal for environments requiring high-speed, reliable wireless connectivity, such as offices, educational institutions, and smart homes. Its support for the latest Wi-Fi 7 standard ensures future-proof performance and compatibility.
