Ubiquiti UniFi Pro 8 PoE (USW-Pro-8-PoE)
KSh 53,000(KSh 61,480 Incl VAT)
- 8 × Gigabit RJ45 ports, including 6 PoE+ (802.3at) and 2 PoE++ (802.3bt)
- 2 × 10G SFP+ uplink ports for high-speed fiber connectivity
- 120 W total PoE budget with internal 150 W PSU
- Fanless, silent operation in a compact desktop/wall-mountable design
- 56 Gbps switching capacity, 28 Gbps throughput, ~42 Mpps forwarding rate
- Layer 3 capable with static routing, DHCP server/relay, and inter-VLAN routing
- Managed via UniFi Controller (v7.5.176+), with 1.3″ touchscreen display
- NDAA compliant, designed for pro-grade enterprise deployments
SKU: USW-Pro-8-PoECategory: Networking Infrastructure
The UniFi USW-Pro-8-PoE is a compact, fanless Layer 3 switch with 8 Gigabit ports (6 PoE+, 2 PoE++), 2 SFP+ ports, a 120W PoE budget, and full UniFi Controller support—ideal for enterprise edge applications.
Datasheet
✅ UniFi USW‑Pro‑8‑PoE – Detailed Specifications
🔌 Ports & PoE
- 8 × 1 GbE RJ45 ports: 6 support PoE+ (32 W), 2 support PoE++ (60 W) each
- 2 × 10 GbE SFP+ uplink ports
- Total PoE budget: 120 W
⚡ Performance
- Switching capacity: 56 Gbps
- Non-blocking throughput: 28 Gbps
- Forwarding rate: ~42 Mpps
🔄 Layer 2 & 3 Features
- Layer 3 support: Static & inter-VLAN routing, DHCP server/relay
- Robust Layer 2: VLANs, LACP, STP/RSTP, IGMP snooping, jumbo frames, 802.1X, ACLs, QoS, storm control, LLDP-MED, port mirroring, loop protection
🏗️ Hardware & Design

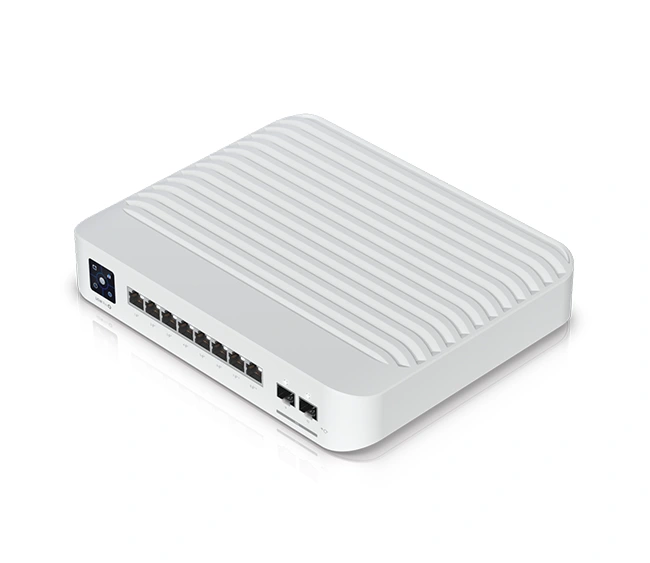

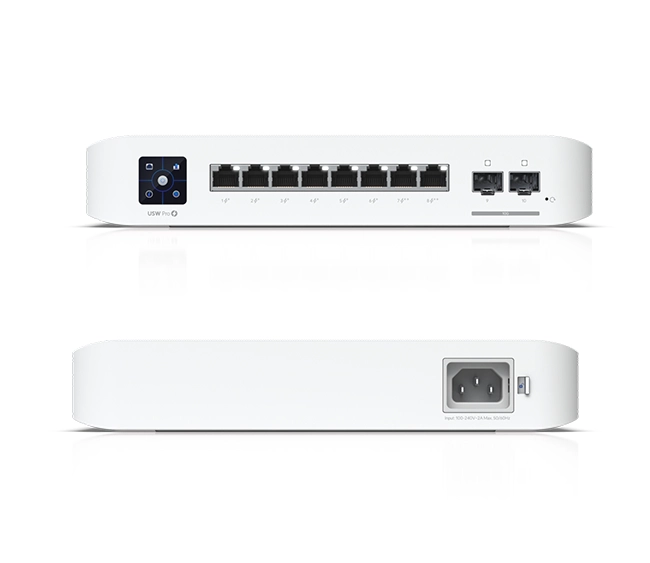

- Compact form factor: 200 × 248 × 44 mm; weight approx. 2.1 kg
- Enclosure: Polycarbonate & metal; desk or wall-mountable
- Cooling: Fanless, passive airflow, silent operation
- 1.3″ touchscreen (Etherlighting™) & single reset button
🔌 Power & Energy
- Internal 150 W AC/DC PSU, 100–240 V AC
- Power draw: 30 W idle (excluding PoE); up to 150 W under full PoE
- Heat dissipation: ~102 BTU/hr (idle)
🌡️ Environmental Specs & Compliance
- Operating temp: –5 °C to 45 °C; humidity: 10–90% non‑condensing
- Certifications: CE, FCC, IC; NDAA compliant
🔧 Management & Interface
- Ethernet in-band management with UniFi Network Controller (v7.5.176+) featuring AR integration
⚖️ Summary Table
| Feature | Specification |
|---|---|
| Ports | 6× 1 GbE PoE+, 2× 1 GbE PoE++, 2× 10 GbE SFP+ |
| PoE Budget | 120 W total |
| Switching | 56 Gbps capacity / 28 Gbps throughput / ~42 Mpps forwarding |
| Routing | Layer 3 features: DHCP, inter-VLAN, static routing |
| Power Supply | 150 W internal AC/DC, up to 150 W peak with PoE |
| Cooling | Fanless, silent design |
| Form Factor | 200×248×44 mm, 2.1 kg; desk/wall mountable polycarbonate/metal chassis |
| Display | 1.3″ touchscreen (Etherlighting™) |
| Certifications | CE, FCC, IC, NDAA |
| Management | UniFi Controller (v7.5.176+), Ethernet in-band |
