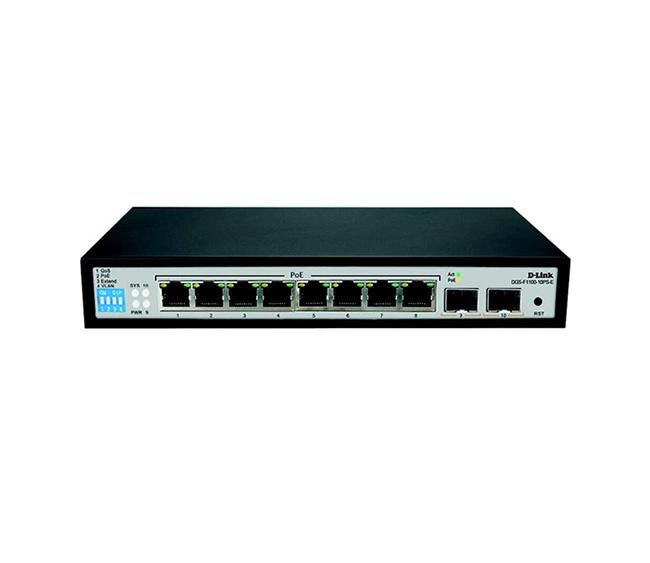

D-Link 8 Port PoE Gigabit Smart Managed Switch + 2 SFP (DGS-F1100-10PS-E)
SKU: DGS-F1100-10PS-ECategory: Networking Infrastructure
250M 10-Port 10/100/1000 Smart Switch with 8 PoE+ Ports & 2 Uplink Ports
The D-Link DGS-F1100-10PS-E is a 10 port Smart Managed Gigabit Switch with 8/10/100/1000 Mbps PoE ports, 2 Gigabit SFP uplink ports. This Switch enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras. – 8x 10/100/1000 Mbps PoE Ethernet ports – 2x Uplink ports – IEEE 802.3af/at Power Over Ethernet (PoE) enables installation in hard to reach locations – 96 W total power budget – Up to 30 W power output per PoE portD-Link DGS-F1100-10PS-E – 10-Port Gigabit Smart Managed PoE+ Switch
🔌 Hardware Overview
- Ports:
- 8 × 10/100/1000 Mbps PoE+ RJ45 ports
- 2 × Gigabit SFP uplink ports
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- MAC Address Table: 8K entries
- Jumbo Frame Support: Up to 10,240 bytes
- Packet Buffer Size: 1.5 MB
- PoE Standards: IEEE 802.3af/at
- PoE Budget: Up to 130W total, 30W max per port
- Transmission Distance: Up to 250m on ports 1–8 with Extend mode enabled
- Lightning Protection: 6kV surge protection
⚙️ Software & Management Features
- Management Interfaces:
- Web-based GUI (HTTP/HTTPS)
- Command Line Interface (CLI) via Telnet/SSH
- SNMP v1/v2c/v3
- D-Link Network Assistant (DNA) utility
- VLAN Support:
- 802.1Q VLAN
- Port-based VLAN
- Voice VLAN
- Asymmetric VLAN
- Auto Surveillance VLAN 2.0
- Quality of Service (QoS):
- 8 queues per port
- 802.1p CoS, DSCP, SP, WRR, DRR scheduling
- Time-based QoS
- Security Features:
- Access Control Lists (ACLs)
- Port Security
- 802.1X Authentication
- IP-MAC-Port Binding
- DoS Protection
- DHCP Snooping
- SSL, SSH, HTTPS support
- Layer 2 Features:
- Spanning Tree Protocol (STP), Rapid STP (RSTP), Multiple STP (MSTP)
- Link Aggregation (Static and LACP)
- IGMP Snooping v1/v2
- Loopback Detection
- Port Mirroring
- Storm Control (Broadcast/Multicast/Unicast)
- IPv6 Support:
- IPv6 Ping, Traceroute, Telnet, SSH
- IPv6 SNMP, LLDP
- IPv6 DHCP Client
🌿 Energy Efficiency
- Energy-Efficient Ethernet (EEE): Compliant with IEEE 802.3az
- Power Saving Features:
- Link status detection
- LED shut-off
- Port shut-off
- System hibernation
- Time-Based PoE: Schedule PoE power delivery
📏 Physical & Environmental Specifications
- Dimensions: 294 × 180 × 44 mm
- Weight: 1.67 kg
- Operating Temperature: -10°C to 55°C
- Storage Temperature: -20°C to 70°C
- Operating Humidity: 0% to 95% RH (non-condensing)
- Storage Humidity: 50% to 90% RH
- Maximum Power Consumption:
- 154W (with PoE)
- 10.79W (without PoE)
- Acoustic Noise: 51.9 dB(A)
- MTBF: Approximately 376,888 hours
📦 Package Contents
- DGS-F1100-10PS-E Switch
- Power Adapter
- User Manual
- Rack Mount Kit
- Wall Mount Brackets
Datasheet
