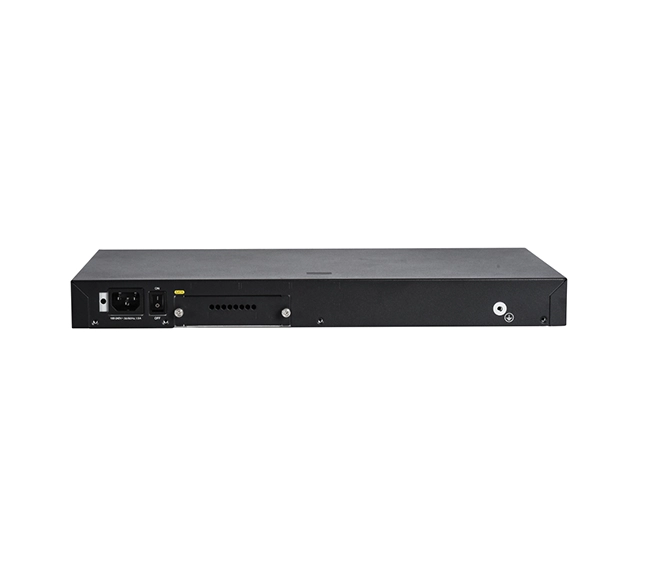

Ruijie RG-NBR6205-E Reyee High-performance Cloud Managed Security Router
KSh 55,500(KSh 64,380 Incl VAT)
- 10 × Gigabit ports – 8 × RJ45 + 2 × SFP (up to 9 WAN links)
- 1.5 Gbps throughput – with NAT, DPI, and full service enabled
- Supports up to 500 concurrent users – ideal for midsize to large networks
- Powerful VPN support – up to 1,000 IPsec tunnels; L2TP/PPTP/OpenVPN
- Advanced security – Layer 7 DPI, firewall, IPS, app/web filtering
- Cloud-managed – Ruijie Cloud & Reyee App (zero-touch deployment)
- Captive portal – voucher, SMS, QR code, social login options
- Screen mirroring – supports hotel/guest room display mirroring
- Optional HDD slot – for local log storage (up to 1TB)
- Rackmount, fan-cooled design – compact and enterprise-ready
SKU: RG-NBR6205-ECategory: Networking Infrastructure
Here are the detailed specifications for the Ruijie RG‑NBR6205‑E high-performance cloud-managed security router:
Datasheet
⚙️ Hardware & Performance
- Processor: Dual-core 1.2 GHz
- Memory & Storage: 2 GB RAM, 8 GB eMMC + 8 MB SPI flash
- Hard Drive Bay: Optional 2.5″ SATA HDD up to 1 TB for logs
- Recommended Throughput: Up to 1.5 Gbps total bandwidth
- Concurrent Clients: Up to 500 recommended devices
🔌 Network Interfaces
- Ethernet Ports: 8 × 10/100/1000 Mbps RJ45
- SFP Ports: 2 ×
- 2 × Processor: Dual-core 1.2 GHz
- Memory & Storage: 2 GB RAM, 8 GB eMMC + 8 MB SPI flash
- Hard Drive Bay: Optional 2.5″ SATA HDD up to 1 TB for logs
- Recommended Throughput: Up to 1.5 Gbps total bandwidth
- Concurrent Clients: Up to 500 recommended devices
- Throughput: Up to 1.5 Gbps (recommended)
- Concurrent users: Supports up to 500 devices
🔒 VPN & Security
- VPN: L2TP/PPTP ≈ 400 Mbps throughput, up to 400 tunnels; IPSec/VPN support for robust remote connectivity
- Security features:
- Layer‑7 DPI (2500+ rules), firewall, ACLs
- Anti‑DoS, IPS/IPS protection
- Captive portal with vouchers, SMS, QR, and web login
📡 Management & Cloud
- Cloud: Free Ruijie Cloud management + Reyee App
- All‑in‑one NBR: Combines firewall, DPI auditing, IPS, and AP controller functions
- Third-party support: Open API, integrates with other platforms
- Screen mirroring: One-to-one guest room mirroring feature
🧰 Routing & Networking
- Multi‑service: Supports up to 9 WAN ports
- Routing protocols: Static, RIP, OSPF supported
- Network tools: Application/web filtering, bandwidth control, tunnel policies, SNMP
🛠️ Physical & Power
- Form factor: 1U rack-mount; fan‑equipped (2 fans)
- Dimensions: 440 × 200 × 43.6 mm; weight: ~2.9 kg
- Power: 100–240 V AC input, < 25 W typical, < 25 W consumption
- Environmental: 0–45 °C operating temp; CE/ROHS certified
- Warranty: 3 years
✅ Quick Overview
| Feature | RG‑NBR6205‑E |
|---|---|
| CPU / RAM / Flash | Dual-core 1.2 GHz / 2 GB RAM / 8 GB eMMC + 8 MB |
| Ports | 8 × RJ‑45 + 2 × SFP; up to 9 WAN links |
| Throughput | 1.5 Gbps |
| Clients | up to 500 |
| VPN Tunnels | L2TP/PPTP ~400 tunnels; L2TP ≈ 400 Mbps |
| Security | L7 DPI, firewall, captive portal |
| Management | Ruijie Cloud, open API, NBR all-in-one |
| Form factor | 1U rack, 2 fans, < 25 W |
| Weight / Size | 2.9 kg; 440 × 200 × 43.6 mm |
| Warranty | 3 years |
