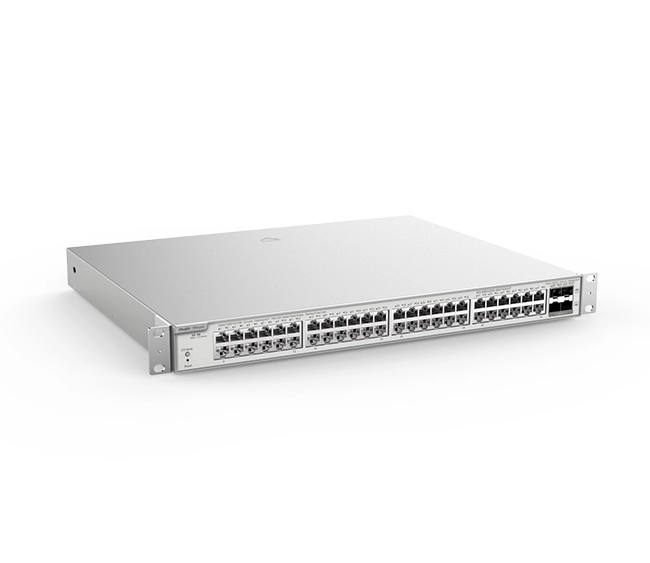

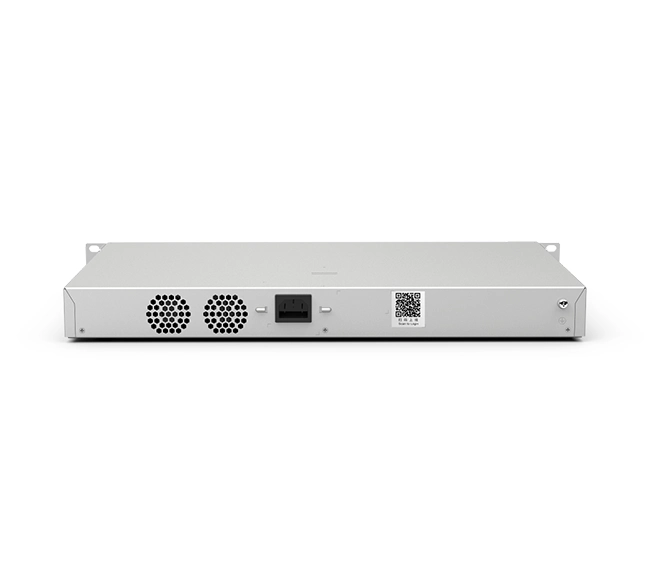

RG-NBS3200-48GT4XS-P, 48-Port Gigabit Layer 2+ Cloud Managed PoE Switch

Ruijie RG-NBS3200-48GT4XS-P is a 48-Port Gigabit Layer 2+ Cloud Managed PoE Switch designed for enterprise environments such as offices, hospitality, education, and surveillance networks. It offers robust performance, advanced Layer 2 features, and seamless cloud-based management.

---

🔧 Key Specifications

• Ports: 48 × 10/100/1000Base-T (PoE/PoE+), 4 × 10G SFP+ uplinks
• PoE Budget: 370W total, up to 30W per port (IEEE 802.3af/at)
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.95 Mpps
• Packet Buffer: 16 Mbit
• MAC Address Table: 16,000 entries
• VLAN Support: Up to 4094 VLANs
• Jumbo Frame: 9216 bytes
• Dimensions: 440 mm × 357.6 mm × 43.6 mm
• Weight: 5.4 kg (with packaging)
• Power Consumption: ≤ 448W
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH
• Storage Humidity: 5% to 95% RH
• Port Surge Protection: 6 kV
• Certifications: CE, RoHS

---

🛠️ Layer 2 & Security Features

• Spanning Tree Protocols: STP (IEEE 802.1d), RSTP (IEEE 802.1w)
• VLAN Types: Port-based, MAC-based, IP-based, Voice VLAN
• Link Aggregation: Supports up to 16 groups with 8 members each
• Storm Control: Unknown unicast, multicast, and broadcast suppression
• Access Control Lists (ACLs): Supports IP standard, MAC-based extended, and IP-based extended ACLs
• Security Features: BPDU Guard, IP Source Guard, DHCP Snooping, Anti-ARP Spoofing
• Management Protocols: SNMP v1/v2c/v3, LLDP/LLDP-MED

---

☁️ Cloud Management & Monitoring

• Management Platforms: Ruijie Cloud (browser and mobile app)
• Features: Real-time monitoring, configuration, firmware updates, and PoE usage alarms
• Self-Organizing Network (SON): Simplifies network deployment and management
• Camera Recognition: Optimized for CCTV networks

---

📦 Package Contents

• RG-NBS3200-48GT4XS-P Switch
• Mounting Brackets (2)
• Foot Pads (4)
• Power Cord
• Quick Start Guide
• Warranty Card
• Screws (8)

---

Datasheet
