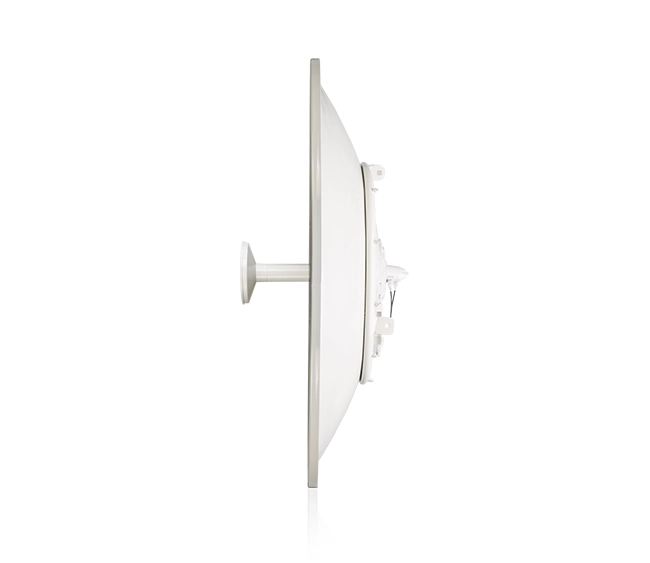

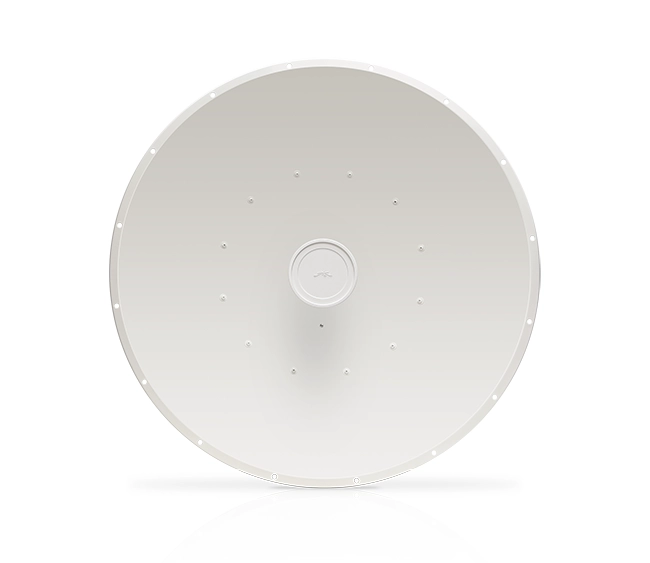

Ubiquiti airFiber X 5 GHz 34dBi Slant 45 Dish Antenna

Ubiquiti airFiber X 5 GHz 34dBi Slant 45 dish antenna is engineered for ultra long-range, high-throughput point-to-point wireless backhaul. With its narrow 4° beamwidth, 34 dBi gain, and dual-slant 45° polarization, it ensures minimal interference and maximum signal focus. Built for harsh environments, this antenna pairs seamlessly with airFiber X and 5XHD radios, delivering carrier-grade performance.

Detailed Specifications for Ubiquiti airFiber X 5 GHz 34dBi Slant 45 Dish Antenna (AF‑5G34‑S45)

---

🛠 Mechanical & Environmental

• Dish Diameter: 750 mm; Depth: 446 mm
• Weight: ~10.5 kg (including mount)
• Mounting: Integrated heavy-duty pole bracket with ±20° tilt and bubble level
• Wind Survivability: Rated for speeds up to 200 km/h
• Wind Loading: ~1,000 N at 200 km/h
• Material: Powder-coated galvanized steel reflector with corrosion-resistant hardware; integrated cable shroud
• Operating Conditions: –40 °C to +55 °C; 5–95% non-condensing humidity
• ESD/EMP Protection: Withstands ±24 kV air/contact discharges
• Certifications: CE, FCC, IC, RoHS; meets IEC and MIL‑STD environmental standards

---

📡 AirFiber X 5 GHz 34dBi Slant 45 RF & Antenna

• Frequency Range: 4.9–5.9 GHz
• Gain: 34 dBi across 5 GHz band
• Beamwidth: ~4.0° 3 dB horizontal/vertical
• Front-to-Back Ratio: > 35 dB
• VSWR: ≤ 1.5:1
• Polarization: Dual-linear at 45° slant
• Cross‑Polar Isolation: ≥ 38 dB

---

⚙ Integration & Compatibility

• Designed For: Seamless integration with airFiber X and airFiber 5XHD radios
• Mounting System: Snap‑in feedhorn bracket eliminates external cabling; ensures optimal RF coupling and minimal loss

---

✅ Meta Description

The Ubiquiti airFiber X 5 GHz 34dBi Slant 45 dish antenna delivers ultra-high gain, narrow beamwidth, and rugged durability for long-range, gigabit-capable wireless backhaul with airFiber X radios. Datasheet
