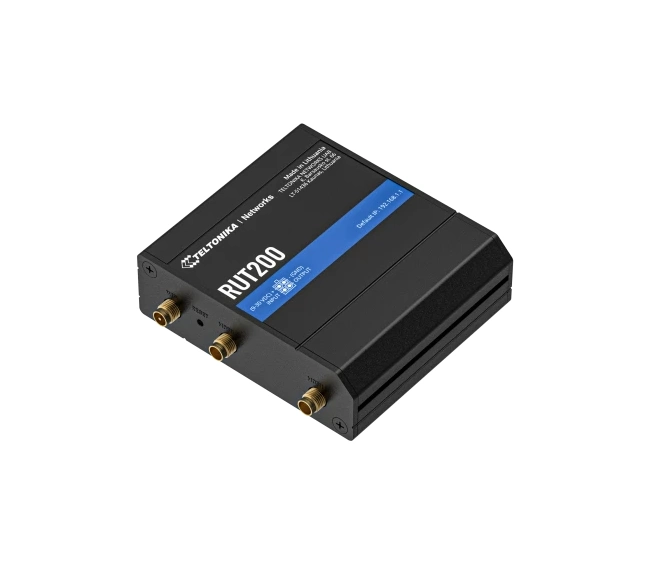

Teltonika RUT200 LTE WiFi Cellular Router

The Teltonika RUT200 LTE WiFi Cellular Router is a compact and cost-effective industrial 4G LTE router designed for professional M2M and IoT applications. It offers reliable mobile connectivity, dual Ethernet ports, integrated Wi-Fi hotspot, and advanced networking capabilities like VPN, failover, and firewall control. Perfect for smart cities, vending, energy, and industrial automation projects.

General Information

• Product Model: Teltonika RUT200
• Device Type: Industrial Cellular 4G LTE Router
• Use Case: IoT connectivity, remote monitoring, small-scale industrial networking
• Mounting Options: DIN rail and wall mount (brackets optional)
• Housing: Rugged plastic/aluminum casing
• IP Rating: IP30
• Dimensions: 83 x 25 x 74 mm
• Weight: ~125 g

---

Cellular Connectivity

• Mobile Module: 4G LTE Cat 4
• Supported Bands:
  • LTE FDD: B1/B3/B7/B8/B20
  • WCDMA: B1/B8
  • GSM: B3/B8
• Data Rates:
  • LTE: Up to 150 Mbps (Download), 50 Mbps (Upload)
  • 3G (HSPA+): Up to 42 Mbps
• SIM Slots: 1 × Mini SIM (2FF)
• Antenna Connectors: 2 × SMA for LTE, 2 × RP-SMA for Wi-Fi

---

Wi-Fi Specifications

• Wi-Fi Standard: IEEE 802.11b/g/n
• Frequency: 2.4 GHz only
• Max Wi-Fi Clients: Up to 50 simultaneous users
• Antenna: 1 × External 2 dBi RP-SMA Wi-Fi antenna
• Wireless Modes: Access Point, Station, AP+Station
• Security: WPA2-PSK, WPA-PSK, WPA/WPA2-PSK Mixed

---

Ethernet & Interfaces

• Ethernet Ports: 2 × 10/100 Mbps RJ45
  • 1 × WAN (configurable)
  • 1 × LAN
• Auto MDI/MDIX: Supported
• VLAN Support: 802.1Q
• Digital Inputs/Outputs:
  • 1 × Digital Input (0–30 V)
  • 1 × Digital Output (Open Collector, max 30 V/300 mA)

---

Power Supply

• Power Input Range: 9 – 30 V DC
• Connector Type: 4-pin industrial DC power socket
• Passive PoE Support: Yes (on LAN port)
• Power Consumption: < 3 W typical

---

Environmental Specifications

• Operating Temperature: –40 °C to +75 °C
• Storage Temperature: –40 °C to +85 °C
• Humidity: 10% to 90% Non-condensing
• EMC & Safety Standards: CE, RoHS, EAC, REACH certified

---

Software & Features

• Operating System: RutOS (based on OpenWRT)
• Remote Management: Teltonika RMS (Remote Management System)
• Management Interfaces: WebUI, CLI (SSH), SMS, SNMP, JSON-RPC, TR-069
• VPN Protocols Supported: OpenVPN, IPsec, PPTP, L2TP, SSTP, WireGuard
• Firewall & Security:
  • Stateful Firewall with customizable rules
  • Port forwarding, NAT, MAC filtering, DoS protection
• Failover & Backup:
  • WAN failover between Ethernet and cellular
  • Ping/WAN link monitoring
• Network Features:
  • DHCP Server, Client, Relay
  • Static IP, Dynamic IP (DHCP), PPPoE
  • DDNS, NTP, UPnP, VLAN, VRRP, GRE tunnel

---

Included Accessories

• 1 × Power adapter (EU or other based on region)
• 2 × LTE antennas
• 1 × Wi-Fi antenna
• 1 × Ethernet cable
• Quick Start Guide

---

Meta Description

Teltonika RUT200 LTE WiFi Cellular Router is a compact industrial 4G LTE router with dual Ethernet, Wi-Fi, VPN support, and digital I/O for small-scale automation and IoT connectivity. Built for performance in rugged environments. Datasheet
