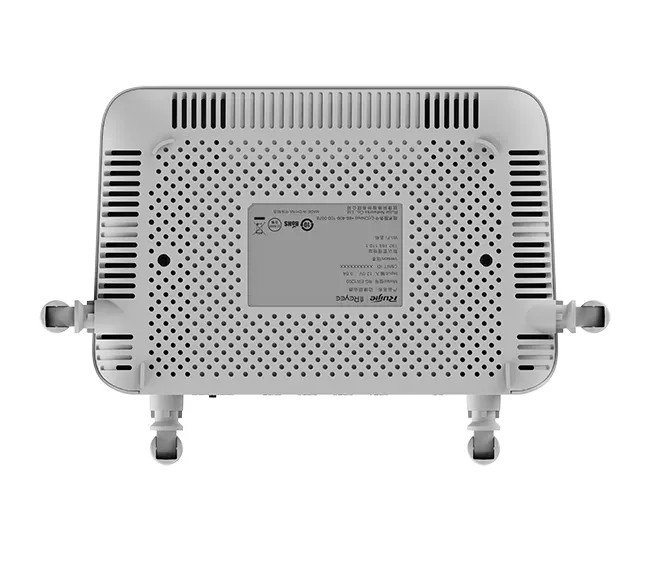

Ruijie RG-EW1200 1200M Dual-band Wireless Router
KSh 4,500(KSh 5,220 Incl VAT)
- Dual-band AC1200 Wi‑Fi – 2.4 GHz at 300 Mbps + 5 GHz at 867 Mbps (total 1,167 Mbps)
- MU‑MIMO 2×2 on both bands for better multi-client performance
- 4 external 5 dBi antennas for enhanced coverage
- Reyee Mesh-capable – easy mesh setup via button, GUI, or app
- Gigabit-speed LAN – 1 WAN + 3 LAN (10/100 Mbps)
- Supports up to 96 devices, with QoS and band steering features
- Parental controls & guest networks – 6 SSIDs, scheduling, isolation, and Wi‑Fi health mode
- Compact, low-power design – <8.2 W typical power consumption
- App/cloud management – via Reyee/Ruijie app for remote setup and maintenance
- Secure & reliable – WPA/WPA2, robust firewall, CE/RoHS certified, 3‑year warranty
SKU: RG-EW1200Category: Networking Infrastructure
Here are the detailed specifications for the Ruijie RG‑EW1200 AC1200 dual-band mesh-capable wireless router:
Datasheet
📶 Wireless Features
- Wi-Fi: IEEE 802.11ac Wave 2 (Wi‑Fi 5), backward compatible with 802.11a/b/g/n
- Dual-band Speeds: 300 Mbps on 2.4 GHz + 867 Mbps on 5 GHz = 1,167 Mbps total
- Antenna: 4 external omnidirectional antennas (5 dBi each)
- MIMO: MU‑MIMO 2×2 on both bands
- Concurrent Clients: Supports up to 96 devices (recommend ~24)
- Channel Width: 2.4 GHz (20/40 MHz); 5 GHz (20/40/80 MHz)
🔌 Ports & Networking

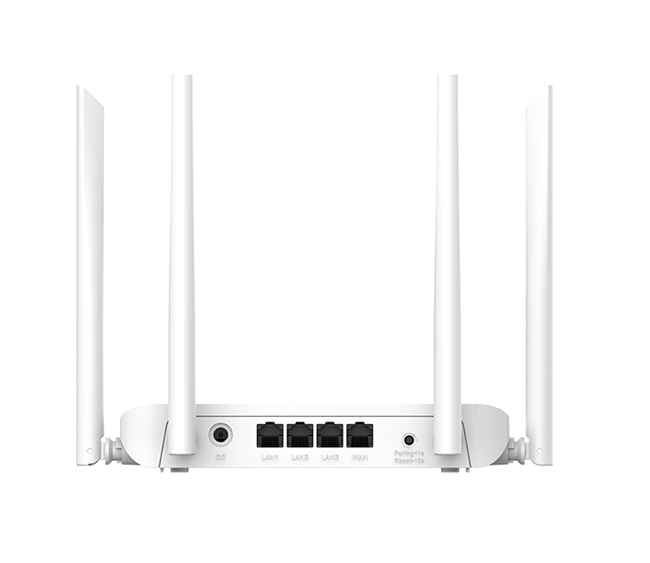

- Ethernet: 1 × 10/100 Mbps WAN; 3 × 10/100 Mbps LAN
- Mesh Support: Reyee mesh compatible—setup via hardware button, web GUI, or app
🧠 Hardware & System
- CPU: MT7628 chipset
- Memory: 64 MB RAM; 16 MB flash
🛡️ Features & Security
- Parental Controls & Health Mode: Includes scheduling, speed limits, indicator light suppression for lower radiation
- Guest Network & Band Steering: Supports up to 6 SSIDs, guest isolation, and automatic steering
- QoS & Optimization: WMM QoS, band steering, and traffic management
- Security: WPA/WPA2 encryption; firewall, access controls
🌐 Management & Apps
- App Control: Configurable via Reyee/Ruijie Router App or cloud portal
- Remote Features: Easy setup, remote reboot, firmware updates, guest access via app
📏 Physical & Power
- Dimensions: 182 × 120 × 32 mm (excluding antennas)
- Weight: 0.22 kg
- Power Supply: DC 12 V/0.6 A; typical ≤ 8.2 W consumption
- Operating Conditions: 0–45 °C; 5–95 % humidity (non‑condensing)
- Certifications: CE, RoHS; warranty: 3 years
✅ Summary Table
| Feature | Specification |
|---|---|
| Wi-Fi Total Speed | 300 + 867 = 1,167 Mbps |
| Antennas | 4 × 5 dBi |
| Ports | 1× WAN, 3× LAN (10/100 Mbps) |
| Clients Supported | Up to 96 devices |
| Power Consumption | ≤ 8.2 W |
| Security & QoS | WPA/WPA2, QoS, guest SSID |
| Management | Reyee app, cloud portal |
| Mesh Capability | Yes, with Reyee devices |
| Warranty | 3 years |
