UniFi U7 Outdoor
KSh 34,598(KSh 40,134 Incl VAT)
- Wi-Fi 7 (802.11be) – Next-gen wireless standard with dual-band support.
- High Throughput – Up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz.
- Wide Coverage – Up to 465 m² (5,000 ft²) outdoor coverage.
- 200+ Clients – Supports high client density for outdoor spaces.
- Weatherproof Design – IPX6-rated, durable for all weather conditions.
- PoE+ Powered – Powered via PoE+ (802.3at) with a 2.5 GbE uplink.
- Antenna Options – Internal and external antennas with RP-SMA connectors.

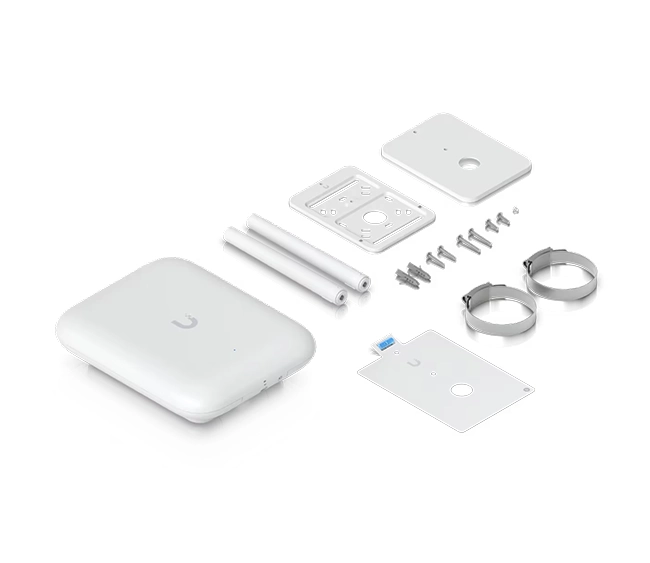

- Mounting Flexibility – Includes mounts for wall, ceiling, or pole installations.
- Rugged Build – Survives high winds (up to 125 mph).
SKU: U7-OutdoorCategory: Networking Infrastructure

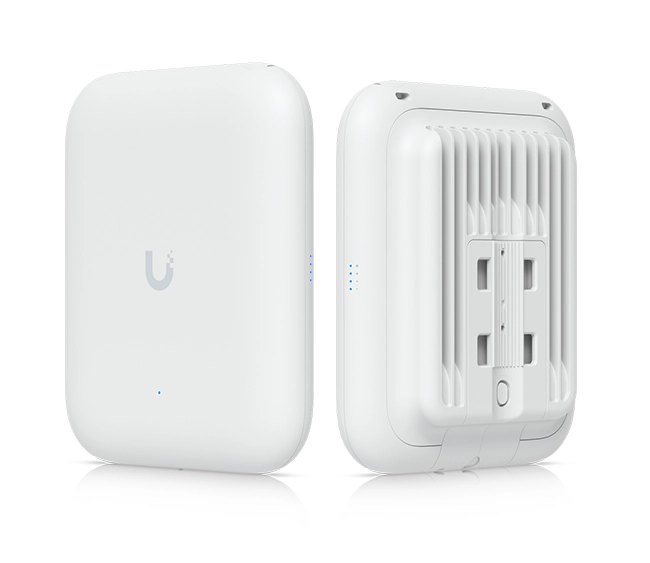

The UniFi U7 Outdoor (model: U7-Outdoor) is Ubiquiti’s latest weather-resistant Wi-Fi 7 access point designed for high-performance outdoor deployments. It delivers robust coverage, high client capacity, and flexible antenna configurations, making it ideal for campuses, public venues, and enterprise outdoor environments.
The UniFi U7 Outdoor is a robust solution for extending high-speed Wi-Fi coverage in outdoor environments, offering flexibility in antenna configuration and mounting options. Its support for the latest Wi-Fi 7 standard ensures future-proof performance and compatibility.
🔑 Key Features
- Wi-Fi 7 (802.11be): Supports dual-band 2.4 GHz and 5 GHz with 2x2 MU-MIMO.
- High-Speed Throughput: Up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz.
- Coverage: Up to 465 m² (5,000 ft²) in open spaces.
- Client Capacity: Supports 200+ concurrent devices.
- Antenna Configuration: Includes internal directional antennas (12.5 dBi for 5 GHz, 8 dBi for 2.4 GHz) and external omni antennas (4 dBi for 5 GHz, 3 dBi for 2.4 GHz) with RP-SMA connectors.
- Mounting Options: Versatile wall, ceiling, and pole mounting (mounts included).
- Weatherproofing: IPX6-rated enclosure for all-weather durability.
- Power & Networking: Powered via PoE+ (802.3at) with a 2.5 GbE RJ45 uplink port.
📐 Hardware Specifications
- Dimensions: 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
- Weight: 1.2 kg (2.6 lb)
- Enclosure Material: UV-stabilized polycarbonate and aluminum alloy
- Operating Temperature: -30°C to 60°C (-22°F to 140°F)
- Operating Humidity: 5% to 95% non-condensing
- Power Consumption: Maximum 19W
- Wind Survivability: Withstands 74.6 N at 200 km/h (16.8 lbf at 125 mph)
🔐 Software & Security Features
- Wi-Fi Standards Supported: 802.11a/b/g/n/ac/ax/be
- Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3), PPSK
- BSSID Support: 8 per radio
- VLAN Support: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest Traffic Isolation: Supported
- Concurrent Clients: 200+
- Supported Data Rates:
- 802.11a: 6–54 Mbps
- 802.11b: 1–11 Mbps
- 802.11g: 6–54 Mbps
- 802.11n: 6.5 Mbps to 300 Mbps
- 802.11ac: 6.5 Mbps to 1.7 Gbps
- 802.11ax: 7.3 Mbps to 2.4 Gbps
- 802.11be: 7.3 Mbps to 4.3 Gbps
⚙️ Management & Compatibility
- Management Interface: Ethernet
- LED Indicators: Power (white/blue), Mesh signal (blue)
- Reset Button: Factory reset
- UniFi Network Application: Version 8.3 and later
- Certifications: CE, FCC, IC
The UniFi U7 Outdoor is a robust solution for extending high-speed Wi-Fi coverage in outdoor environments, offering flexibility in antenna configuration and mounting options. Its support for the latest Wi-Fi 7 standard ensures future-proof performance and compatibility.
