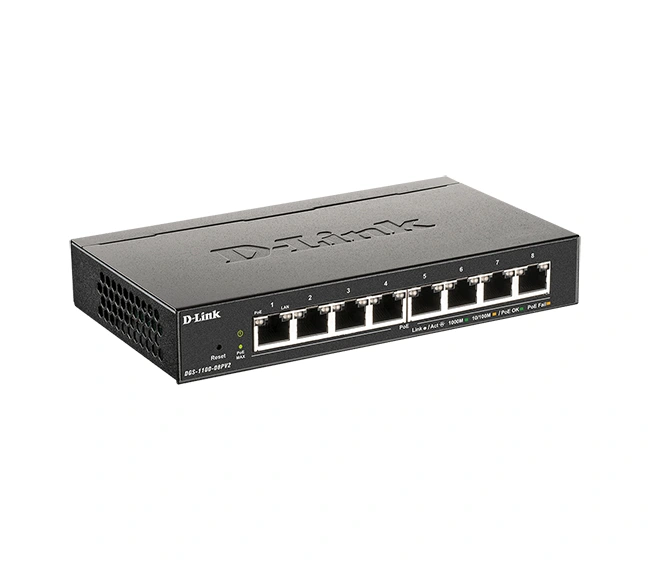

D-Link 8-Port Gigabit PoE Smart Managed Switch (DGS-1100-08P)

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation(static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities. Here's a overview of the D-Link DGS-1100-08PV2 8-Port Gigabit PoE Smart Managed Switch, highlighting its key features and specifications:

---

📘 D-Link DGS-1100-08PV2 – 8-Port Gigabit PoE Smart Managed Switch

🔑 Key Features

• 8 × Gigabit Ethernet Ports with PoE+ Support: Each port supports IEEE 802.3af/at standards, delivering up to 30W per port, with a total PoE power budget of 64W.
• Fanless Design: Ensures silent operation, making it ideal for noise-sensitive environments.
• Compact Metal Housing: Designed for convenient desktop placement.
• Energy-Efficient Technology: Incorporates D-Link Green technology and complies with IEEE 802.3az Energy Efficient Ethernet (EEE) standards to reduce power consumption.
• Smart Management Features:
  • Web-Based Interface: User-friendly interface for easy configuration and management.
  • D-Link Network Assistant (DNA): Client-based utility for discovering and managing D-Link Smart Managed Switches within the same Layer 2 network segment.
  • Surveillance VLAN: Prioritizes video traffic to ensure smooth surveillance operations.
  • PD Alive: Automatically reboots unresponsive PoE-powered devices to maintain network reliability.
  • Loopback Detection & Cable Diagnostics: Helps identify and troubleshoot network issues efficiently.
• Advanced Security Features:
  • Static MAC: Allows administrators to fix MAC addresses to specific ports, enhancing security.
  • Storm Control: Prevents network disruptions by controlling broadcast, multicast, and unknown unicast traffic.
  • IGMP Snooping: Optimizes multicast traffic for efficient network performance.
• VLAN Support: Supports up to 32 static VLAN groups, including Surveillance and Voice VLANs, to segment and prioritize network traffic.
• Quality of Service (QoS): Offers 4 queues per port to prioritize critical network traffic.
• Lifetime Warranty: Backed by D-Link’s Limited Lifetime Warranty upon registration.

---

📊 Technical Specifications

• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4,160 entries
• Packet Buffer Size: 1.5 Mbits
• Jumbo Frame Support: Up to 9,216 bytes
• Power Consumption: Maximum of 77.90W
• Dimensions: 6.7" (W) × 3.9" (D) × 1.1" (H)
• Weight: Approximately 15.17 oz

---

🛡️ Ideal Applications

• Small to Medium-Sized Businesses (SMBs): Provides essential networking features with easy management.
• IP Surveillance: Supports Surveillance VLAN and PD Alive for reliable camera operations.
• VoIP Deployments: Ensures voice traffic prioritization through QoS and VLAN features.
• Energy-Conscious Environments: Incorporates energy-saving technologies to reduce operational costs.

---

Datasheet
