UniFi Dream Machine Special Edition (UDM-SE)

  The UniFi Dream Machine Special Edition (UDM-SE) is a high-performance all-in-one networking device designed for advanced home and business environments. It integrates a security gateway, PoE switch, and network video recorder (NVR) with 128 GB SSD storage, all managed via UniFi OS.

---

🔧 Hardware Specifications

• Processor: Quad-Core ARM Cortex-A57 @ 1.7 GHz
• RAM: 4 GB DDR4
• Storage:
  • 16 GB eMMC (system)
  • Integrated 128 GB SSD (NVR storage)
• Power Supply:
  • Internal AC/DC, 240W
  • Supports 100–240V AC input or 52V DC via USP-RPS
  • Max power consumption (excluding PoE output): 50W
• Cooling: Active fan with ESD/EMP protection (±15 kV air, ±8 kV contact)

---

🌐 Networking & Ports

• WAN Ports:
  • 1 × 10G SFP+
  • 1 × 2.5G RJ45
• LAN Ports:
  • 1 × 10G SFP+
  • 8 × 1G RJ45 (6 × PoE 802.3af, 2 × PoE+ 802.3at)
• PoE Budget: 180W total
• Management Interfaces: Ethernet, Bluetooth (for initial setup)

---

🖥️ Display & Management

• Display: 1.3" LCM touchscreen for status and alerts
• Management: UniFi Network application (web and mobile)

---

🛡️ Security & Features

• IDS/IPS Throughput: 3.5 Gbps
• Threat Protection: 55,000+ signatures with optional CyberSecure subscription
• VPN Support: OpenVPN, WireGuard, L2TP, IPsec, Teleport (zero-configuration)
• SD-WAN: License-free
• Firewall: Layer 7 DPI, zone-based filtering, ad blocking, and advanced NAT
• Redundancy: VRRP (Shadow Mode) and DC power backup via USP-RPS

---

📦 Physical & Environmental

• Dimensions: 442.4 × 43.7 × 285.6 mm (17.42 × 1.72 × 11.24")
• Weight: 4.95 kg (10.91 lb)
• Rack Mount: 1U, includes rack brackets and screws
• Operating Temperature: -10 to 40°C (14 to 104°F)
• Humidity: 5–95% non-condensing
• Certifications: CE, FCC, IC

---

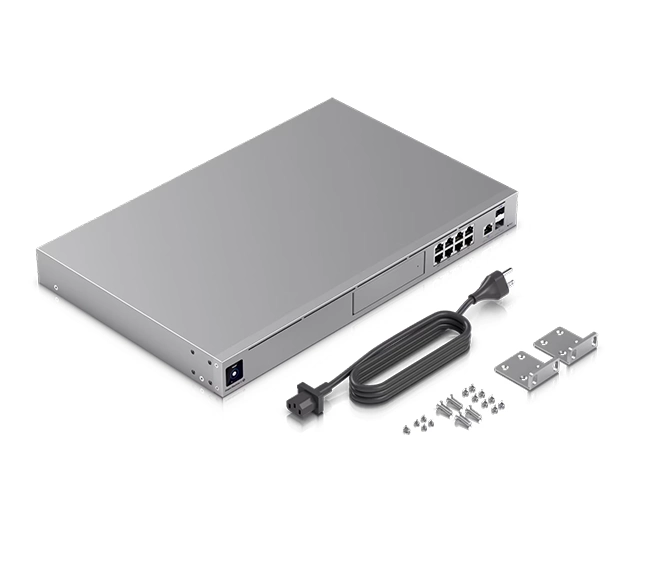

🧰 Included in the Box

• UDM-SE unit
• Rackmount brackets and screws
• Cage nuts and mounting screws
• Security screw
• 2.5" HDD screws
• UK power cord
• Rubber feet

---

The UDM-SE is ideal for environments requiring high throughput, advanced security features, and PoE-powered devices. Its integrated NVR capability makes it particularly suitable for UniFi Protect camera deployments. For more details, you can refer to the official Ubiquiti store page:

---

Datasheet
