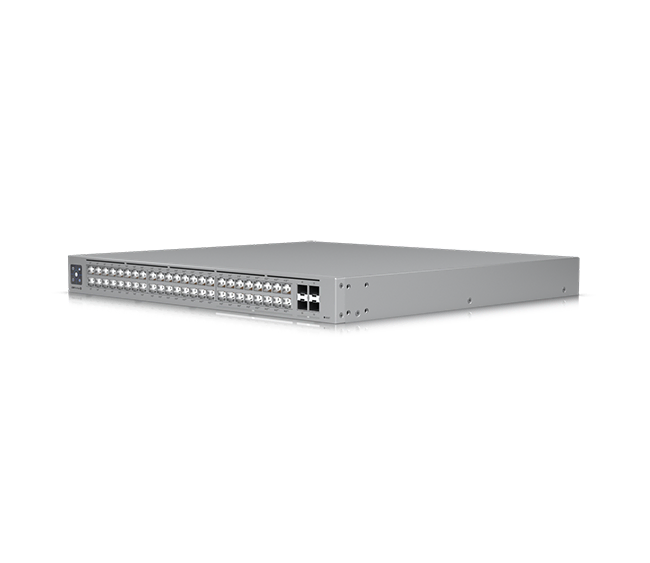

Ubiquiti UniFi USW Pro Max 48 Switch (PoE & Non-PoE)

Here are the detailed specifications for the UniFi USW‑Pro‑Max‑48, covering both the non‑PoE and PoE models:

---

🛠 USW‑Pro‑Max‑48 (Non‑PoE)

• Ports
  • 32 × 1 GbE RJ45
  • 16 × 2.5 GbE RJ45
  • 4 × 10 GbE SFP+
• Performance
  • Switching capacity: 224 Gbps
  • Non-blocking throughput: 112 Gbps
  • Forwarding rate: ≈167 Mpps
• Layer 2 & 3
  • VLANs (1k), LACP, STP/RSTP, QoS, IGMP snooping, jumbo frames, 802.1X, ACLs
  • DHCP server/relay, inter-VLAN and static routing, DHCP snooping, port isolation
• Hardware
  • 1.3″ touchscreen with Etherlighting™
  • Rack‑mountable (1U), DC power-backup capable
• Power
  • Internal AC/DC PSU, 100 W typical draw
  • Heat dissipation: ~341 BTU/hr
• Physical & Environmental
  • 442 × 325 × 44 mm; ~4.8 kg (without brackets)
  • Operating temp –5 °C to 40 °C; 10–90% non-condensing humidity
• Compliance
  • CE, FCC, IC, Anatel; NDAA compliant
• Management
  • Requires UniFi Network 8.0.24+

---

⚡ USW‑Pro‑Max‑48‑PoE

Everything above, plus:

• PoE Ports
  • 32 × 1 GbE RJ45 (24 PoE+ @ 30 W, 8 PoE++ @ 60 W)
  • 16 × 2.5 GbE RJ45 (8 PoE+ @ 30 W, 8 PoE++ @ 60 W)
  • 4 × 10 GbE SFP+ uplinks
• PoE Budget
  • Total PoE budget: 720 W
• Power Supply
  • Internal 820 W AC/DC PSU; supports USP‑RPS DC backup
  •  (
  • Idle draw: 100 W (excluding PoE); still ≤100 W under non-PoE use
• Physical & Environmental
  • Size: 442 × 400 × 44 mm; weight ~6.2 kg (no brackets), ~6.3 kg (brackets)
  • Operating temp and humidity: same as non‑PoE
  • Certifications: CE, FCC, IC; NDAA compliant

---

🧩 Summary Comparison

Feature	Non‑PoE Model	PoE Model
LAN Ports	32×1 Gb + 16×2.5 GbE + 4×10 GbE SFP+	Same, but PoE capable
PoE Support	❌	✅ 720 W budget, PoE+/PoE++
Switching Capacity	224 Gbps	224 Gbps
Throughput	112 Gbps / ~167 Mpps	112 Gbps / ~167 Mpps
Power Supply	Internal 100 W AC/DC	Internal 820 W AC/DC + RPS
Dimensions / Weight	442 × 325 × 44 mm, ~4.8 kg	442 × 400 × 44 mm, ~6.2 kg
Touchscreen & Etherlighting™	✔	✔
Rack Mount & DC Backup	Yes	Yes
Management (UniFi v8.0.24+)	✔	✔

---

⚙️ Practical Insights

• Cooling & Noise: The PoE version includes active cooling fans, but noise is moderate. A Redditor noted it “is virtually the same” and “you’d have to put your ear to it” to hear it.

---

✅ Use‑Case Recommendations

• Non‑PoE model: Ideal for high-throughput aggregation or backbone switching in silent environments.
• PoE model: Perfect for large deployments needing to power numerous APs, cameras, VoIP phones, etc., with a hefty 720 W output.

---
