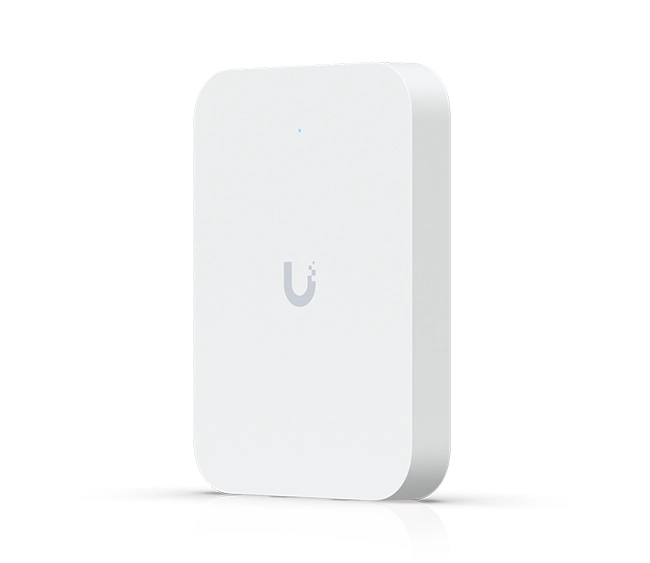

UniFi U7 In-Wall (U7-IW)

The UniFi U7 In-Wall (U7-IW) is a next-generation Wi-Fi 7 in-wall access point designed to deliver high-performance wireless coverage and wired connectivity at the room level. Built on the latest 802.11be standard, the UniFi U7 In-Wall combines ultra-low latency Wi-Fi, multi-gig uplink, and integrated Ethernet switching, making it ideal for offices, hotels, apartments, and modern smart buildings.

Product Overview

The UniFi U7 In-Wall replaces a standard wall Ethernet outlet, providing powerful tri-band Wi-Fi 7 coverage while also extending the network through built-in LAN ports. It is optimized for environments where clean installation, room-by-room coverage, and high client performance are required.

Wireless Standards & Performance

• Wi-Fi standard: IEEE 802.11be (Wi-Fi 7)
• Backward compatibility: 802.11a/b/g/n/ac/ax
• Frequency bands:
  • 2.4 GHz
  • 5 GHz
  • 6 GHz
• Supports Multi-Link Operation (MLO) for improved throughput and reduced latency
• Designed for high-capacity indoor deployments

Antenna & Radio Design

• Integrated internal directional antennas
• Optimized for room-focused coverage patterns
• Advanced beamforming for stable client connections

Ethernet Ports & Switching

• 1 × multi-gigabit Ethernet uplink (2.5 GbE)
• Multiple downlink Gigabit Ethernet LAN ports for local devices
• Supports PoE passthrough on select LAN ports when powered by compatible PoE standards

Power Requirements

• Power method: Power over Ethernet (PoE)
• Supported PoE standards: 802.3at / 802.3bt (depending on passthrough use)
• Single-cable power and data delivery

Management & Security

• Managed via UniFi Network Application
• Centralized monitoring, configuration, and firmware updates
• Enterprise security with WPA3 support
• VLANs, guest networking, traffic segmentation, and policy control

Physical Design & Installation

• In-wall form factor replacing a standard Ethernet faceplate
• Clean, professional finish for visible indoor installations
• Ideal for hotels, residential units, offices, and classrooms

Reliability & Operation

• Engineered for continuous 24/7 operation
• Efficient thermal design for sustained performance

Key Features

• Wi-Fi 7 (802.11be) tri-band in-wall access point
• Multi-gig 2.5 GbE uplink
• Integrated Ethernet switch with PoE passthrough support
• Ideal for room-by-room and hospitality deployments
• Fully managed through UniFi Network Application

Meta Description

UniFi U7 In-Wall is a Wi-Fi 7 in-wall access point with tri-band radios, 2.5GbE uplink, and integrated Ethernet ports, delivering high-performance wireless and wired connectivity for modern buildings. Datasheet
