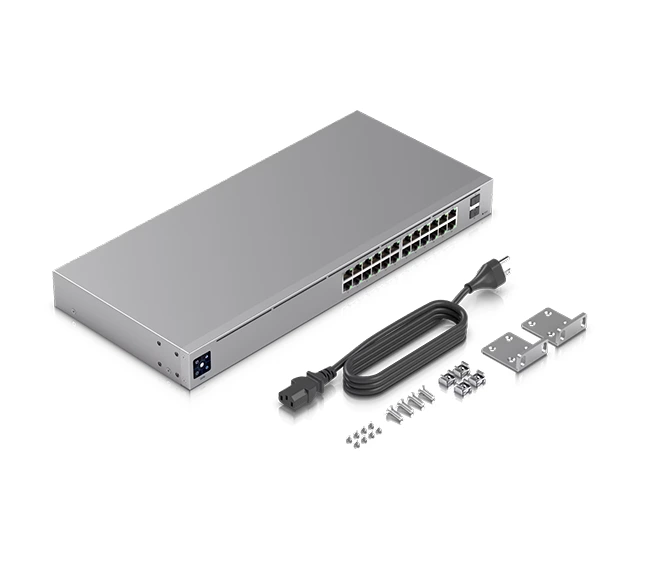

Ubiquiti UniFi Standard 24 Switch (PoE & Non-PoE)
KSh 67,500(KSh 78,300 Incl VAT)
- 24 × 1 GbE RJ45 ports (PoE model includes 16 PoE+ ports)
- 2 × 1 GbE SFP uplinks for fiber expansion
- 52 Gbps switching capacity, 39 Mpps forwarding rate
- Fanless, silent 1U rack-mount design with 1.3″ touchscreen
- PoE model offers 95 W total PoE budget (up to 32 W per port)
- Layer 2 features: VLANs, QoS, IGMP snooping, LACP, ACLs
- Managed via UniFi Network Controller (v7.2.94+)
- NDAA compliant and energy-efficient internal PSU
SKU: USW 24Category: Networking Infrastructure
The UniFi USW-24 and USW-24-PoE are silent, rack-mountable Layer 2 switches featuring 24 GbE ports, 2 SFP uplinks, advanced VLAN and QoS support, touchscreen display, and PoE+ options—ideal for scalable enterprise networks.
Here are the detailed specifications for the UniFi USW‑24 (Standard, non-PoE) and USW‑24‑PoE models directly from Ubiquiti:
🛠 USW‑24 (Standard, Non‑PoE)
- Ports
- 24 × 1 GbE RJ45
- 2 × 1 GbE SFP uplinks
- Performance
- Switching capacity: 52 Gbps
- Non-blocking throughput: 26 Gbps
- Forwarding rate: 39 Mpps
- Layer 2 Features
- VLANs (up to 1,000), LACP, STP/RSTP, QoS, IGMP snooping (advanced), jumbo frames, 802.1X, ACLs, and more
- Hardware
- 1.3″ touchscreen (Etherlighting™), fanless (silent) design
- Rack-mountable (1U), compact 442 × 200 × 44 mm; weight ~2.7 kg (2.8 kg with brackets)
- Power
- Internal AC/DC PSU (36 W); max consumption ~25 W (≈85 BTU/hr)
- Environment & Certification
- Operating temp: –5 °C to 45 °C; humidity: 10–90% non-condensing
- Certifications: CE, FCC, IC, Anatel; NDAA compliant
- Management
- Managed via UniFi Network Controller (v7.2.94+)
⚡ USW‑24‑PoE
Includes all Standard features plus:- Ports & PoE
- 24 × 1 GbE RJ45 (16 PoE+, 802.3at/af) + 2 × 1 GbE SFP uplinks
- PoE Power
- Total PoE budget: 95 W
- Per-port: up to 32 W (PoE+)
- Performance & Specs
- Switching: 52 Gbps; throughput: 26 Gbps; forwarding: 39 Mpps
- Form Factor & Build
- Fanless silent design; rack-mountable 442 × 200 × 44 mm; ~3.0 kg (3.09 kg with brackets)
- Power & Heat
- Internal 120 W PSU; consumption: 25 W idle / up to 120 W with PoE
- Environment & Certification
- Same operating range as standard; NDAA-compliant
- Management
- Supports UniFi Network Controller (v7.2.94+)
📊 Quick Comparison
| Specification | USW‑24 (Non‑PoE) | USW‑24‑PoE |
|---|---|---|
| RJ45 Ports | 24 × 1 GbE | 24 × GbE (16 PoE+) |
| SFP Uplinks | 2 × 1 GbE | Same |
| Switching Capacity | 52 Gbps | Same |
| Throughput | 26 Gbps / 39 Mpps | Same |
| PoE Budget | – | 95 W total; 32 W max per port |
| PSU | 36 W (internal) | 120 W (internal) |
| Cooling | Fanless – silent | Fanless – silent |
| Display | 1.3″ touchscreen | Same |
| Size & Weight | 442 × 200 × 44 mm; ~2.7 kg | ~3.0 kg |
| Management | UniFi Controller | Same |
| Certifications | NDAA, CE/FCC/IC | Same |
