MikroTik CubeG-5ac60ay (Cube 60Pro ac)

KSh 25,500(KSh 29,580 Incl VAT)

802.11ay support for increased range, stability, and channel bonding
Compact & aesthetic design for clean rooftop or balcony installations
High-gain directional antenna for focused signal delivery
Integrated 5 GHz failover ensures connection stability
RouterOS L3 license provides rich software functionality
Passive & silent cooling for long-term operation
Ideal client device for CubeSA-60Pro-ac or other MikroTik 60 GHz base units

SKU: CubeG-5ac60ayCategory: Networking Infrastructure

The MikroTik CubeG-5ac60ay, also referred to as the Cube 60Pro ac, is a high-performance 60 GHz + 5 GHz dual-band client device designed for point-to-point (PtP) or point-to-multipoint (PtMP) applications. Built for next-generation wireless deployments, it supports the 802.11ay standard and features automatic 5 GHz fallback to ensure uninterrupted connectivity. Compact, rugged, and equipped with a gigabit port, the Cube 60Pro ac delivers fiber-like speeds wirelessly over short distances, even in busy or congested environments.

General Specifications

Product Code: CubeG-5ac60ay
Architecture: ARM 32-bit
CPU Model: IPQ-4019 (Quad-core ARM Cortex-A7)
CPU Frequency: 716 MHz (auto-scaling)
RAM: 256 MB
Storage: 64 MB NAND Flash
Operating System: RouterOS
License Level: Level 3 (suitable for CPE)
MTBF: Approximately 200,000 hours at 25°C
Operating Temperature: -40°C to +70°C
IP Rating: IP54 (dust and splash resistant)
Dimensions: 115 x 115 x 60 mm
Weight: ~500 g (without mounting)

Wireless Capabilities

Primary Wireless Interface:
- Standard: 802.11ay (backward compatible with 802.11ad)
- Frequency: 60 GHz
- Max EIRP: Up to 40 dBm
- Throughput: Up to 2 Gbps aggregate (full-duplex)
- Modulation: QPSK / 16-QAM / 64-QAM
- Antenna Type: Integrated high-gain directional
- Antenna Gain: ~32 dBi (narrow beam)
- Beamwidth: ~5° (highly directional for focused signal)
Backup Wireless Interface:
- Standard: 802.11a/n/ac
- Frequency: 5 GHz
- Channel Width: Up to 80 MHz
- Data Rate: Up to 433 Mbps (single-chain)
- Antenna Gain: 11.5 dBi
- Automatic Failover: Yes, auto-switches from 60 GHz to 5 GHz when needed

Ethernet & Networking

Ethernet Port:
- 1 × 10/100/1000 Mbps Gigabit Ethernet
Protocols Supported:
- IPv4, IPv6, VLAN, DHCP, PPPoE, VPN, MPLS, Routing (OSPF/BGP), Firewall, NAT, Hotspot
Management:
- Winbox, WebFig, CLI (SSH, Telnet), SNMP, TR-069, API access
Encryption: WPA2 (AES), IPsec, firewall rules configurable

Power

Power Input:
- Passive PoE or 802.3af/at compliant
- Voltage Range: 18 V to 48 V
Max Power Consumption: 13 W
Power Jack: No DC jack (PoE only)
Cooling: Passive, no moving parts (fanless)

Mounting & Build

Mounting:
- Comes with wall/pole mounting hardware
- Precision alignment for 60 GHz beam
Housing Material:
- UV-resistant outdoor-grade plastic
- Integrated metal heatsink base
Color: White matte with integrated logo design

Ideal Use Cases

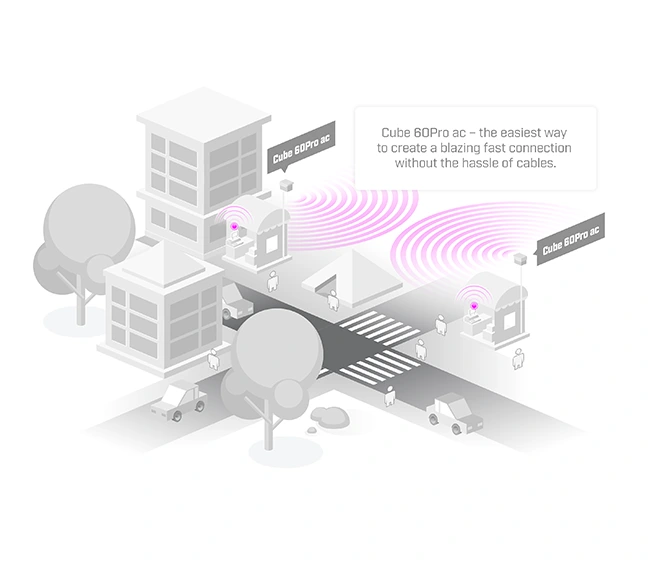

Fiber-like wireless PtP links up to 800+ meters
Client device for 60 GHz PtMP sector deployments
Bridging buildings or high-density environments
High-throughput home or business wireless gateway
Reliable CPE in low-interference millimeter-wave networks

Meta Description: MikroTik CubeG-5ac60ay (Cube 60Pro ac) is a compact dual-band client device with 802.11ay 60 GHz wireless and 5 GHz failover, delivering up to 2 Gbps full-duplex throughput, passive PoE, and RouterOS—ideal for high-performance point-to-point or point-to-multipoint wireless deployments. Datasheet
