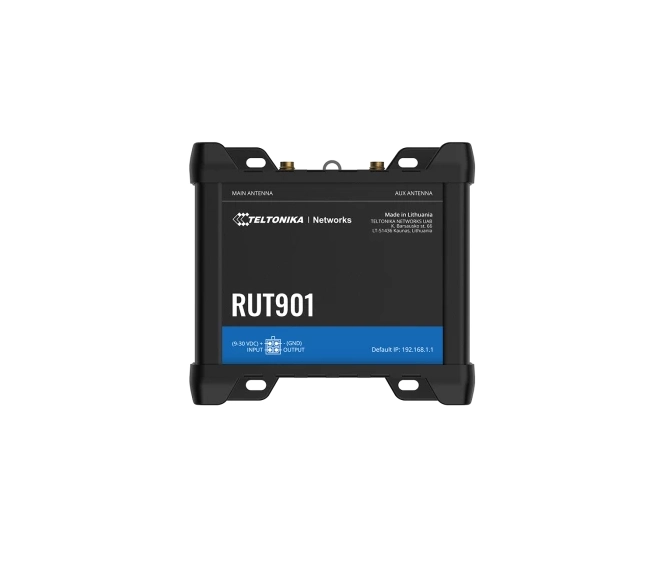

Teltonika RUT901 4G LTE Dual SIM Router

The Teltonika RUT901 4G LTE Dual SIM Router is a robust industrial-grade LTE Cat 4 router designed for mission-critical IoT and M2M applications. Featuring dual SIM failover, 4 Ethernet ports, Wi-Fi connectivity, VPN support, and digital I/O, it delivers high availability and secure wireless communication in harsh environments. Its DIN-rail-ready metal housing, RutOS software, and compatibility with Teltonika RMS make it ideal for smart city, automation, and remote infrastructure projects where reliability and security are key.

Cellular & SIM Specifications

• Cellular Technology: LTE Cat 4, 3G (DC-HSPA+), and 2G (EDGE, GPRS)
• Download/Upload Speeds: LTE up to 150 Mbps DL / 50 Mbps UL; 3G up to 42 Mbps DL / 5.76 Mbps UL
• Cellular Standards Supported: 3GPP Release 9 compliant
• Bands Supported:
  • LTE: B1, B3, B7, B8, B20
  • UMTS: B1, B8
  • GSM: B3, B8
• SIM Slots: Dual SIM (2 × Mini SIM - 2FF)
• SIM Management Features: Auto-failover, backup WAN, roaming control, SIM idle protection, SIM switching rules

---

Wi-Fi Specifications

• Wireless Standards: IEEE 802.11b/g/n (2.4 GHz)
• Wi-Fi Modes: Access Point (AP), Station (Client), AP+Station concurrently
• Max Connected Clients: Up to 100 simultaneous users
• Security Protocols: WPA2-PSK, WPA3, WPA2/WPA3 Mixed Mode, WPA2 Enterprise, OWE, PMF
• Additional Features:
  • SSID Broadcast control
  • MAC address filtering
  • Wireless client isolation
  • Fast roaming support (802.11r)

---

Ethernet & Network Features

• Ports: 4 × 10/100 Mbps RJ45 Ethernet ports (1 WAN, 3 LAN configurable)
• Auto MDI/MDIX: Supported
• WAN Failover: Yes – Ethernet, Mobile, Wi-Fi WAN
• Load Balancing: Yes – customizable rules
• VLAN Support: IEEE 802.1Q, up to 128 VLAN interfaces
• Static and Dynamic Routing: Static, BGP, OSPF, RIP, EIGRP, and VRRP
• Bridge and Passthrough Modes: Supported

---

VPN & Security

• VPN Types Supported:
  • OpenVPN (Client/Server)
  • IPsec
  • GRE, DMVPN
  • PPTP, L2TP
  • SSTP
  • Stunnel
  • WireGuard
  • ZeroTier
• Firewall Features:
  • Stateful Firewall with NAT
  • Port Forwarding, DMZ
  • MAC/IP/Protocol Filtering
  • DoS Protection
• Access Control:
  • Remote access restrictions
  • HTTPS/HTTP management
  • SSH/CLI access
  • WebUI (RutOS) with customizable user roles

---

Management & Monitoring

• Operating System: RutOS (based on OpenWRT)
• Interfaces: WebUI, SSH, CLI, Telnet
• Remote Management: Teltonika RMS, TR-069, SNMP v1/v2/v3, Modbus TCP, JSON-RPC API
• Event Monitoring: Customizable alerts via Email, SMS, RMS
• Diagnostics Tools: Ping, Traceroute, DNS lookup, Signal strength indicator, Syslog, SNMP, Cell monitoring

---

Input/Output Interfaces

• Digital I/O:
  • 1 × Digital Input
  • 1 × Open Collector Output (max 30 V / 300 mA)
• Reset Button: For reboot and factory reset

---

Hardware & Physical Specifications

• CPU: MediaTek MIPS 24Kc, 580 MHz
• RAM: 128 MB DDR2
• Flash Memory: 16 MB SPI Flash
• Power Supply:
  • Input Voltage: 9–30 V DC
  • Passive PoE support (on spare pairs)
• Power Consumption:
  • Idle: <2 W
  • Max: <7 W
• Enclosure: Rugged aluminum housing with plastic panels
• Mounting Options: DIN rail, wall, or desktop mounting
• LED Indicators: Power, LAN activity, WAN, Wi-Fi, Signal strength (3 LEDs)

---

Environmental & Certifications

• Operating Temperature: –40 °C to +75 °C
• Storage Temperature: –40 °C to +85 °C
• Humidity: 10% to 90% non-condensing
• Ingress Protection: IP30
• Certifications: CE, UKCA, EAC, RoHS, WEEE, REACH, EN 62368-1, EMC compliance standards

---

Package Contents

• RUT901 Router
• 2 × LTE antennas (SMA)
• 2 × Wi-Fi antennas (RP-SMA)
• 1 × Ethernet cable
• 1 × Power adapter (EU/US plug variant)
• Quick start guide
• SIM adapter kit
• DIN rail mounting bracket (optional accessory)

Meta Description

Teltonika RUT901 4G LTE Dual SIM Router is a rugged LTE Cat 4 industrial router with dual SIM, Ethernet, Wi-Fi, VPN, and remote management—ideal for secure IoT and M2M connectivity.

Datasheet
