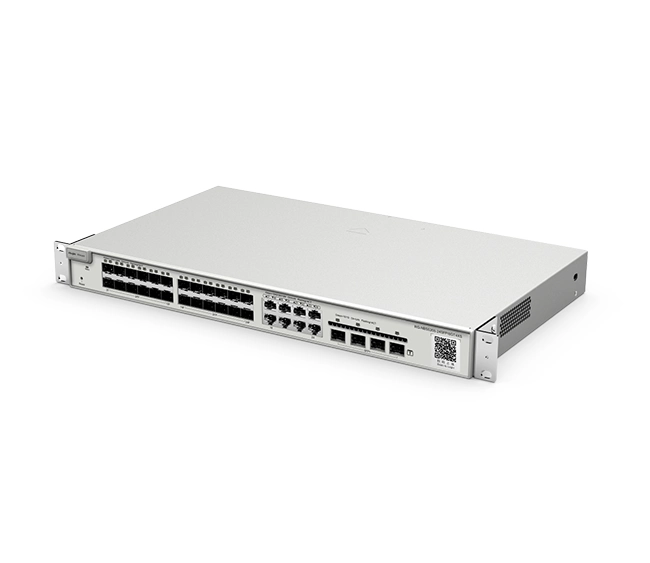

RG-NBS5200-24SFP/8GT4XS, 24-port Gigabit Layer 3 Non-PoE Switch

The Ruijie Reyee RG-NBS5200-24SFP/8GT4XS is a high-performance, Layer 3 managed non-PoE switch designed for enterprise networks, offering robust features suitable for various sectors including hospitality, education, and retail.

---

🔧 Hardware Specifications

• Ports:
  • 24 × 100/1000 Mbps SFP ports
  • 8 × 10/100/1000 Mbps combo RJ45/SFP ports
  • 4 × 10G SFP+ uplink ports
• Switching Capacity: 128 Gbps
• Forwarding Rate: 96 Mpps
• MAC Address Table: 16,000 entries
• Packet Buffer: 12 Mbit
• Jumbo Frame Support: Up to 9216 bytes
• Dimensions: 440 × 267.5 × 43.6 mm
• Weight: Approximately 4.9 kg (with packaging)
• Power Supply: Single fixed AC input (100–240V, 2A)
• Power Consumption: ≤ 41.8W

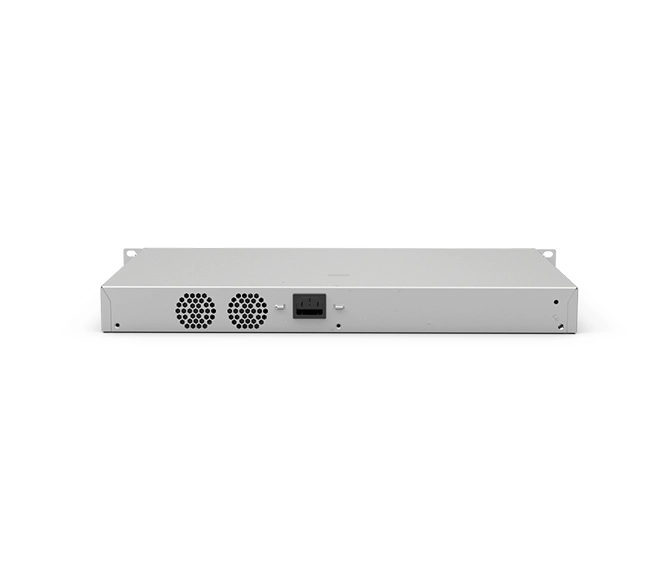

• Cooling: Dual fans with adaptive speed control
• Surge Protection: 6 kV on all ports
• MTBF:
• Warranty: 3 years

---

🌐 Layer 2 & Layer 3 Features

• VLAN Support: Up to 4094 VLANs; supports port-based, MAC-based, IP-based, and voice VLANs
• Link Aggregation: Supports up to 16 groups with a maximum of 8 ports per group
• Spanning Tree Protocols: STP (IEEE 802.1D), RSTP (IEEE 802.1W), MSTP (IEEE 802.1S)
• IGMP Snooping: Versions 1, 2, and 3
• Access Control Lists (ACLs): Supports 1900 entries, including IP standard, MAC-based extended, and IP-based extended ACLs
• Routing Protocols: Static Routing, RIP, OSPF
• Security Features: 802.1X authentication, DHCP snooping, IP source guard, anti-ARP spoofing
• Management: Web interface, HTTP/HTTPS, SNMP v1/v2c/v3, Ruijie Cloud platform, and Ruijie Cloud App
• Additional Features: Loop prevention and notification, LLDP/LLDP-MED, cable diagnostics

---

☁️ Cloud Management & Deployment

• Ruijie Cloud Integration: Enables zero-touch provisioning (SON), remote monitoring, and configuration via the Ruijie Cloud platform and mobile app
• VLAN Configuration: Simplified VLAN setup through the Ruijie Cloud App
• Maintenance: Facilitates easy maintenance, reducing onsite time and costs



---

Datasheet
