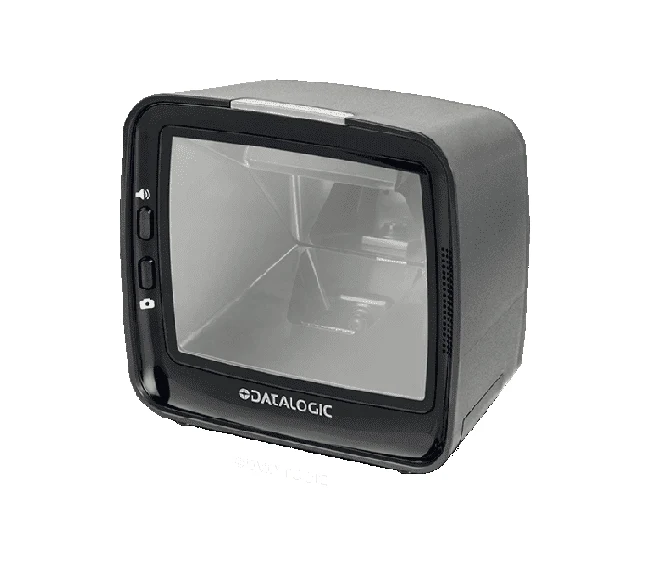

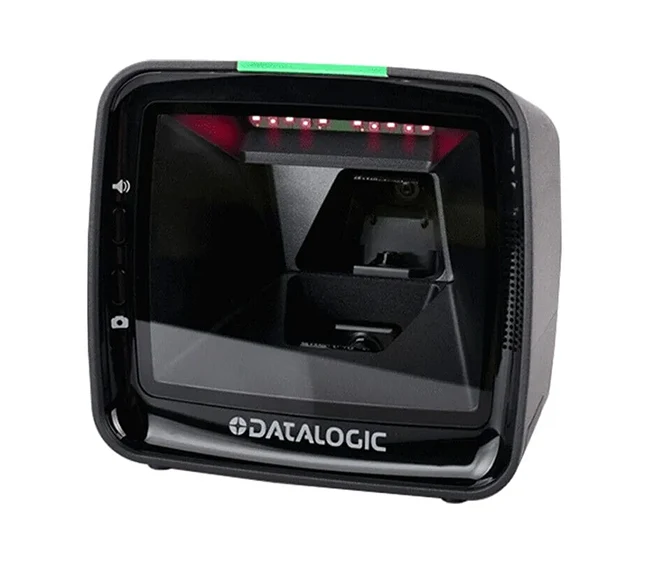

Datalogic Magellan 3410VSi USB Scanner

The Datalogic Magellan 3410VSi USB Scanner is a high-performance vertical presentation scanner built by Datalogic, designed specifically for retail point-of-sale environments that demand superior 1D and 2D scanning capabilities. Engineered to provide rapid, hands-free barcode reading, it offers seamless integration into existing POS systems via USB, making it an ideal solution for checkout counters in grocery stores, pharmacies, and convenience stores. With a high-resolution megapixel sensor, adaptive illumination, and a compact footprint, the Magellan 3410VSi enhances operational efficiency while maintaining accuracy, even with damaged or poorly printed barcodes.

---

General Specifications

• Model: Datalogic Magellan 3410VSi
• Part Number: Varies by configuration, typically starting with "MG3410-xxxxx"
• Scanner Type: Vertical presentation area imager
• Scanning Technology: Digital imager with area imaging capability
• Mounting: Counter-top; designed for vertical orientation

---

Connectivity and Interface

• Interface Type: USB 2.0, Full Speed (12 Mbps)
• Interface Compatibility: HID Keyboard, USB COM (Virtual COM Port), USB OEM
• Host System Integration: Plug-and-play support for common operating systems (Windows®, macOS®, Linux)

---

Optical and Imaging Performance

• Sensor Resolution: 1280 x 800 pixels (1 Megapixel CMOS sensor)
• Optics: Fixed focus
• Scan Pattern: Area image (omnidirectional)
• Motion Tolerance: Up to 3.9 m/s (15.3 in/s) for 13 mil UPC at optimal focal distance
• Depth of Field (DOF):
  • UPC-A 13 mil: 0 cm to 20.3 cm
  • PDF417 6.7 mil: 0 cm to 13.2 cm
  • Data Matrix 10 mil: 0 cm to 13.9 cm
  • QR Code 20 mil: 0 cm to 26.4 cm
• Reading Indicators:
  • Green “Good Read” LED
  • Adjustable audio beeper
  • Optional external speakers via GPIO

---

Barcode Symbologies Supported

1D Codes:

• UPC-A, UPC-E, EAN-8, EAN-13
• Code 128, Code 39, Code 93, Codabar
• Interleaved 2 of 5 (ITF), GS1 DataBar (Omnidirectional, Expanded, Limited)

2D Codes:

• QR Code, Micro QR
• PDF417, MicroPDF417
• Data Matrix, Aztec Code
• MaxiCode
• GS1 Composite Codes

Postal Codes:

• Australia Post, Japanese Post, KIX Post, Planet Code, Postnet, Royal Mail, UPU FICS

---

Mechanical Specifications

• Dimensions (HxWxD): 15.2 cm x 15.2 cm x 9.4 cm (6.0 in x 6.0 in x 3.7 in)
• Weight: 680 grams (1.5 lbs)
• Cable: Detachable USB cable, typically 2 meters (6.5 ft)
• Mounting Options: Flush mount and tilting stand available

---

Environmental and Electrical Characteristics

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5% to 95% non-condensing
• Ambient Light Immunity: Up to 86,000 lux
• Power Requirements:
  • Operating Voltage: 5 VDC ±10%
  • Power Consumption (Active): 2.0 W (400 mA @ 5 VDC)
  • Power Consumption (Idle): 1.25 W (250 mA @ 5 VDC)

---

User Experience and Features

• Illumination: Adaptive LED lighting for optimized scanning and minimal flicker
• Aimer: Red LED targeting system
• Audio: Programmable beeper (tone and volume)
• Diagnostics: Host-detectable health reporting
• Firmware Update: Upgradable via USB
• Configuration: Via Datalogic Aladdin™ or USB serial commands

---

Reliability and Compliance

• Mean Cycles Between Failures (MCBF): 1,000,000 hours
• Ingress Protection: IP52 rating (dust and water droplet protection)
• Certifications:
  • CE, FCC Class B, UL/cUL, VCCI, RoHS
  • WEEE and REACH compliant
• Warranty: 3-Year Factory Warranty (standard)

---

Optional Accessories

• Adjustable tilting stand
• External speaker module
• EAS (Electronic Article Surveillance) support for compatible models
• Protective covers and flush mount kits

---

Ideal Applications

• Grocery and supermarket checkout counters
• Pharmacy prescription validation
• Retail POS with limited counter space
• Kiosk and customer self-service environments

---
