Datalogic Memor 11 Complete Kit

The Datalogic Memor 11 is a high-performance, rugged mobile computer designed for enterprise applications in retail, healthcare, logistics, and manufacturing. Built on the Android platform, it blends advanced processing power, extensive connectivity, and ergonomic design with industry-grade durability.

---

Processor & Operating System

• CPU: 2.3 GHz Octa-Core Qualcomm® Snapdragon™
• Chipset: Qualcomm SDM660 64-bit ARM
• GPU: Adreno™ 512
• Operating System: Android™ 11 GMS (upgradeable to Android 13 via validated upgrade paths)
• Enterprise Mobility Management: Supports Android Enterprise (AE), Zero-Touch, OEMConfig, and Datalogic SmartConfig
• Security: Google Play Protect certified; supports security patches and OS upgrades

---

Memory & Storage

• RAM: 4 GB LPDDR4x
• Flash Storage: 64 GB UFS
• Expandable Storage: microSDXC slot (supports cards up to 512 GB)

---

Display

• Screen Size: 5.0″
• Type: Capacitive multi-touch screen, Gorilla Glass 3
• Resolution: 1280 × 720 pixels (HD)
• Brightness: Sunlight-readable, adjustable brightness
• Touch Support: Glove and wet-finger operation
• Notification: Configurable RGB LED + audio/vibration feedback

---

Barcode Scanning

• Scan Engines:
  • 2D Imager: Datalogic’s latest scan engine with wide field of view
  • High-speed megapixel imager
  • Capable of reading 1D, 2D, postal, stacked, and composite symbologies
• Green Spot Technology: Visual feedback for successful scan
• Scan Trigger: Soft and hard keys; programmable side buttons
• Scan Window: Corning Gorilla Glass 3 for durability

---

Cameras

• Rear Camera: 13 MP autofocus with LED flash
• Front Camera: 5 MP for video calls or facial recognition

---

Wireless Communications

• WWAN (Cellular):
  • 4G LTE (Cat 6)
  • 3G (WCDMA)
  • 2G (GSM/EDGE)
  • Dual nano SIM
  • VoLTE, VoWiFi, GPS/GLONASS/BeiDou/Galileo
• WLAN:
  • IEEE 802.11 a/b/g/n/ac/d/e/h/i/k/r/v/w (Wi-Fi 5)
  • Dual-band 2.4 GHz and 5 GHz
  • MU-MIMO, Wi-Fi Direct, Fast Roaming
• Bluetooth: Bluetooth v5.0 + BLE
• NFC: Integrated, ISO14443A/B, FeliCa, ISO15693, peer-to-peer, card emulation

---

Power & Battery

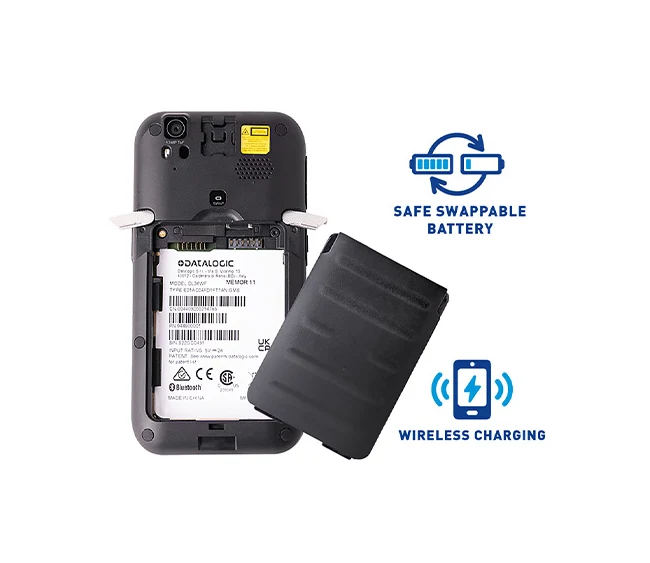

• Battery Type: Removable 1-cell Li-ion battery
• Capacity: 3.8 V, 4100 mAh (15.58 Wh)
• Hot Swap Support: Yes
• Fast Charging: USB PD via USB-C connector
• Runtime: Up to 12+ hours depending on use case

---

Audio & Microphones

• Speaker: High-performance loudspeaker
• Microphones: Dual digital microphones with noise cancellation
• Audio Jacks: USB-C supports audio out and headset support
• Voice Support: Full-duplex VoIP and PTT

---

Ports & Expansion

• USB: USB-C port (USB 3.0 OTG, PD charging, ADB)
• Pogo Pins: For docking/charging accessories
• SIM Slots: 2 × Nano SIM (dual standby or eSIM optional)
• MicroSD Slot: Accessible for SDXC cards

---

Environmental Specifications

• Operating Temperature: –20 °C to +50 °C (–4 °F to +122 °F)
• Storage Temperature: –30 °C to +70 °C (–22 °F to +158 °F)
• Drop Resistance: Survives 1.8 m (6 ft) drops to concrete across all axes
• Tumble Test: 1000 cycles at 0.5 m
• Sealing: IP65 and IP67 rated (dust-tight and water-resistant)
• ESD Protection: ±15 kV air discharge; ±8 kV contact discharge

---

Ergonomics & Physical Characteristics

• Dimensions: 158 × 76.2 × 18.5 mm
• Weight: Approx. 270 g including battery
• Form Factor: Compact slab with optional pistol-grip handle
• Materials: Industrial-grade polycarbonate with rubberized grip
• Keypad: On-screen keyboard; programmable physical side buttons

---

Kit Inclusions (Memor 11 Complete Kit)

• Memor 11 device (Android 11, 4G/LTE, 2D Imager, Wi-Fi + Bluetooth)
• Removable 4100 mAh battery
• USB-C cable
• Power supply with region-specific plug adapters
• Hand strap
• Quick Start Guide
• Optional: Pistol grip, docking cradle (if ordered as part of bundle)

---

Accessories Compatibility

• Single-slot or multi-slot cradle (USB or Ethernet)
• Vehicle dock
• Protective boot
• Charging cup and battery-only chargers
• Wrist strap, holster, belt clip
• Compatible with Memor 10 accessories (mostly)

---

Software & Development Tools

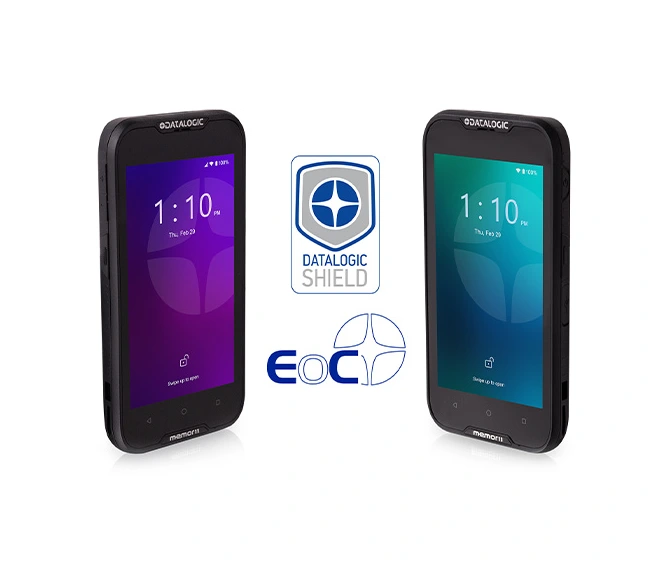

• SDKs Available: Android SDK, Datalogic Scan2Deploy, Datalogic Shield
• Management Tools: Datalogic SmartConfig, EMM support (SOTI, VMware, etc.)
• Security Updates: Covered under Datalogic Shield (3–5 years support lifecycle)

---

Certifications

• CE, FCC, IC, RoHS, REACH
• Google Mobile Services (GMS) certified
• Android Enterprise Recommended (AER)
• GCF/PTCRB certified for global 4G use

---

Meta Description

Datalogic Memor 11 Complete Kit features a rugged Android 11 mobile computer with Snapdragon octa-core CPU, 4GB RAM, 64GB storage, 5″ HD touch display, 2D scanning, 13MP camera, LTE, Wi-Fi, Bluetooth, IP67 rating, and hot-swappable 4100 mAh battery—ideal for enterprise mobility applications. Datasheet
