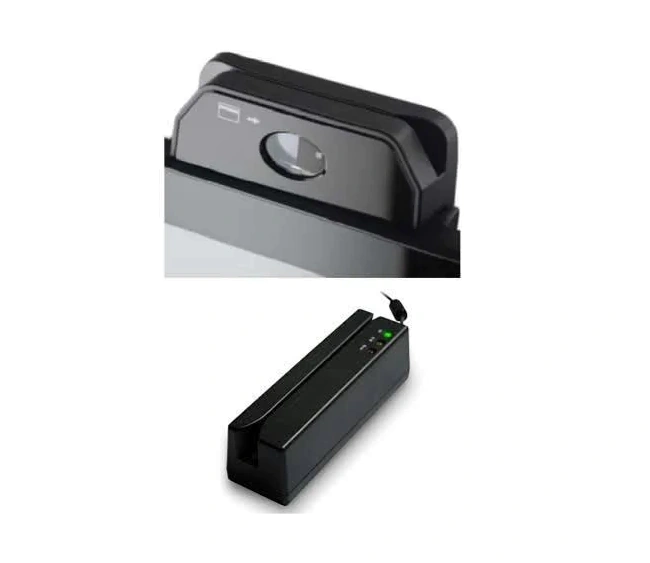

Posbank APEXA G Fingerprint & Magstripe Reader Module (No Smart Card Reader)

The Posbank APEXA G Fingerprint & Magstripe Reader Module (A1039K) merges biometric security with high-performance magstripe card reading in a single compact unit. Featuring triple-track support, bi-directional swipe, USB/PS₂ interface, and robust design, it fits seamlessly into APEXA G terminals—ideal for secure and efficient retail or hospitality workflows.

Here are the very detailed specifications for the Posbank APEXA G Fingerprint & Magstripe Reader Module (No Smart Card Reader)—without any source links:

---

🧩 Interface & Compatibility

• Device Type: Integrated biometric fingerprint and magnetic stripe card reader
• POS Terminal Compatibility: Tailored for internal mounting on Posbank APEXA G terminals
• Mounting Type: Embedded via dedicated expansion slot
• Power Supply: Powered directly through the terminal’s internal connector
• Part Number / SKU: A1039K
• Finish Options: Dark Grey or White (to match terminal color)

---

🖋️ Magnetic Stripe Reader (MSR) Specifications

• Swipe Type: Manual, bi-directional (reads swipes from either direction)
• Card Coercivity: Supports both low (300 Oe) and high (2750–4000 Oe) coercivity magnetic stripe cards
• Track Support:
  • Track 1: 79 alphanumeric characters
  • Track 2: 40 numeric characters
  • Track 3: 107 numeric characters
• Reading Method: F2F (Aiken Biphase) decoding
• Encoding Standards: ISO 7811 / AAMVA / JIS II
• Read Speed: 3 to 50 inches per second
• Swipe Life: Rated for over 500,000 swipes
• Data Output Format: ASCII with programmable prefix, suffix, and delimiters

---

🧬 Fingerprint Reader Specifications

• Sensor Type: Optical fingerprint sensor
• Image Resolution: 500 DPI
• Capture Area: Approximately 16 × 18 mm
• Image Size: 256×360 pixels or equivalent
• Scan Time: <1 second
• Authentication Mode: 1:1 or 1:N identification
• Matching Algorithm: Compliant with ANSI 378 and ISO/IEC 19794-2 standards
• Template Storage: Dependent on host software (requires external DB or software module)
• Liveness Detection: Not included (standard optical only)
• Sensor Surface: Scratch-resistant, hardened glass or polymer

---

⚙️ Connectivity

• Interface Options:
  • USB 2.0 (default)
  • PS/2 (keyboard wedge, legacy)
  • Optional internal RS-232 variant (depends on terminal model)
• Plug-and-Play: USB HID device, no driver required for basic reading
• Software Support: Compatible with Windows-based POS software; biometric SDK required for fingerprint functions

---

📏 Physical Characteristics

• Dimensions (Approx.):
  • Width: 90 mm
  • Height: 30 mm
  • Depth: 25 mm
• Weight: Around 110 grams
• Housing Material: Durable ABS plastic
• Indicator LEDs:
  • Green – Successful read
  • Red – Error or read failure

---

🌡️ Environmental Specifications

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 10% to 90% RH, non-condensing
• Durability: Designed for continuous commercial operation in POS environments

---

🛡️ Certifications & Compliance

• Certifications: CE, FCC, RoHS
• Magstripe Compliance: ISO/IEC 7810/7811, AAMVA, JIS II
• Fingerprint Compliance: ANSI 378 / ISO 19794-2 biometric standards
• ESD/EMC Protection: Integrated shielding for static discharge and electrical noise

Posbank APEXA G Fingerprint & Magstripe Reader Module (A1039K) – Dual biometric and magstripe card reader with triple-track, bi-directional swipe, USB/PS₂ plug-n-play, designed for secure POS terminals.
