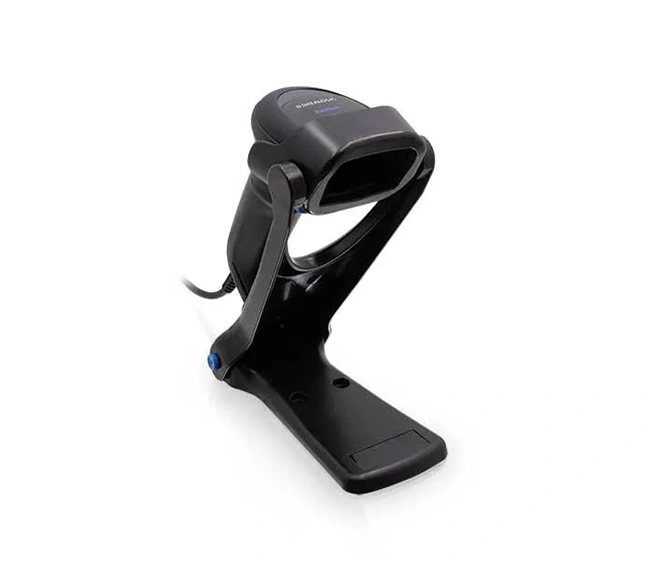

Datalogic QuickScan QW2520-BKK1S 2D Barcode Scanner

The Datalogic QuickScan QW2520-BKK1S 2D barcode scanner is built for retail, hospitality, and light industrial applications. Designed with Motionix™ technology and equipped with a high-speed imager, it delivers fast, accurate reads from paper labels or digital screens. This compact scanner offers IP52 protection, Green Spot confirmation, and a collapsible stand for convenient hands-free operation—making it a perfect choice for point-of-sale and front-counter environments. Here are the very detailed specifications for the Datalogic QuickScan Lite QW2520-BKK1S corded 2D imager:

---

🔍 Device Overview

• Model: QuickScan Lite QW2520‑BKK1S

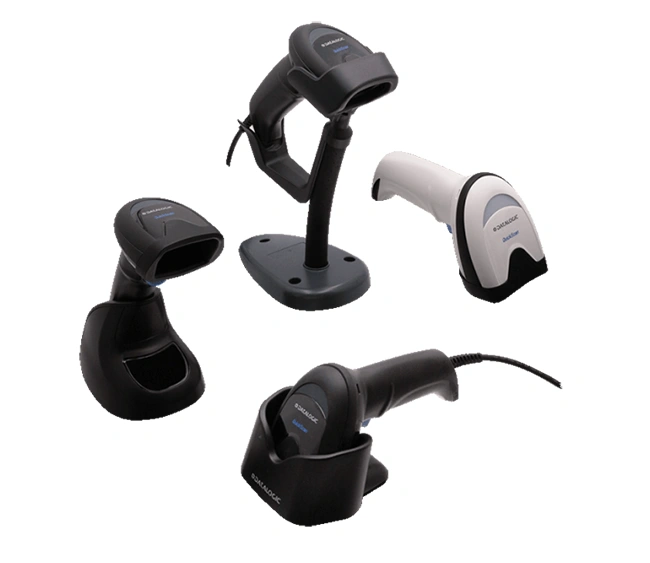

• Series: QW2500 (2D VGA imager, USB kit with cable & stand)

---

📷 Optical & Scanning Capabilities

• Imaging Type: 2D VGA area imager
• Scan Speed: Up to 400 scans per second
• Symbologies Supported: All major 1D, 2D, postal, stacked, composite, dot codes, and Digimarc
• Performance: Reads damaged or poorly printed barcodes and smartphone displays; optimized for plexiglass barrier use
• Aiming: LED-based precision aiming system; Visual Green Spot good-read confirmation

---

🔌 Connectivity & Power

• Interface: USB 2.0 with USB‑A cable and collapsible stand included
• Power: USB bus-powered, no external adapter required

---

📏 Physical Attributes

• Dimensions: 170 × 65 × 70 mm
• Weight: ~119 g (4.2 oz)
• Color: Black
• Durability: Drop-resistant up to 1.5 m onto concrete; rated IP52 for dust and splash protection

---

🌡️ Environmental Specifications

• Operating Temp: 0 °C to 50 °C
• Storage Temp: –40 °C to +70 °C
• Humidity: Up to 95% RH, non-condensing

---

🛠️ Feature Highlights

• Motionix™ Technology: Automatic transition between handheld and presentation modes
• Extended Depth of Field: 1 MP optics for superior scanning; visible aiming line for user precision
• Robust Performance: Trigger rated for ~10 million cycles; optimized for long-term use and fatigue-free operation

---

✅ Kit Contents

• QW2520 2D imager scanner
• 2 m USB cable (90A052258)
• Collapsible stand (STD-QW25-BK)
• Quick-start guide
