The

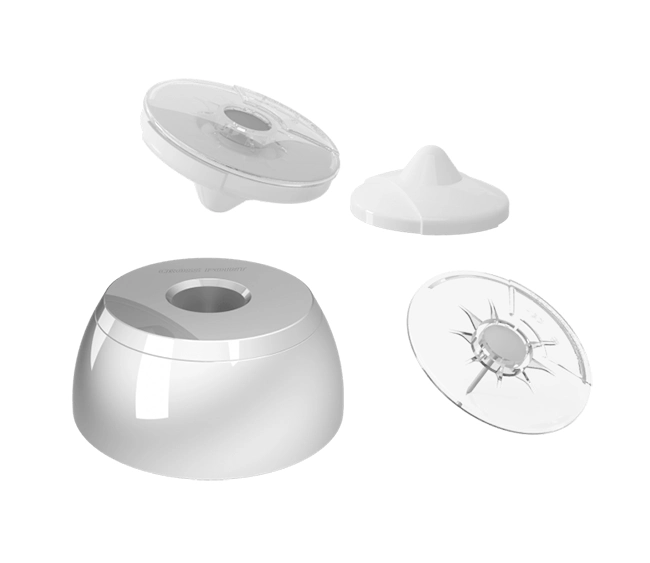

Cross Point CodeLOCK Chrome Detacher by Cross Point is a high-security detacher engineered to unlock compatible EAS hard tags—specifically
OSTRA,
SHELL, and other coded magnetic tags. With a strong magnetic field, secure locking mechanism, and sleek design, it's ideal for environments where both aesthetics and protection against unauthorized use are critical. Designed for both
countertop and
recessed installations, this detacher offers premium performance and theft prevention.
Mechanical Specifications
| Feature |
Specification |
| Product Name |
CodeLOCK Chrome Detacher |
| Material |
Chrome-finished solid aluminum and steel |
| Color Finish |
Polished Chrome |
| Mounting Style |
Dual – Desktop (standalone) or In-counter recessed |
| Weight |
Approx. 450 – 600 g (depending on configuration) |
| Dimensions |
Ø 74 mm × H 35 mm (above counter); Ø 80 mm × H 20 mm (flush-mounted) |
| Cavity Design |
Precision-guided detachment cavity, optimized for OSTRA-coded tag formats |
| Compatibility |
All OSTRA, SHELL, and most 8.2 MHz RF tags with mechanical or magnetic locks |
| Environmental Protection |
Resistant to daily retail wear and liquids (non-submersible) |
Magnetic & Security Specifications
| Feature |
Specification |
| Magnetic Strength |
9 600 Gauss (standard) – suitable for coded and SuperLock tags |
| Available Variant |
12 500 Gauss (Aluminum model, higher power) |
| Locking Mechanism |
Integrated lock with removable key to restrict access during off-hours |
| Unauthorized Use Protection |
Detacher becomes inoperative when locked – cannot be bypassed manually |
| Magnetic Technology |
Neodymium core with channel-focused flux for stable deactivation pull |
| Security Certification |
Retail-grade detacher for high-security environments |
Electrical / Power Requirements
- Power Supply: None – fully mechanical (magnet-based)
- Electronics: Not required – lock is mechanical, no power draw
Installation Options
| Mounting Mode |
Details |
| Desktop/Countertop |
Rubber base grip; ideal for movable or non-permanent setups |
| In-Counter Recessed |
Designed to integrate flush with sales counter using pre-cut hole; offers cleaner appearance and fixed placement |
| Mounting Accessories |
Optional base ring or securing screws available (installer dependent) |
Usage Environment
- Designed For: Supermarkets, fashion retail, electronics, sports stores
- Temperature Range: 0°C to +50°C
- Humidity Tolerance: 10–85% RH (non-condensing)
- Service Life: Rated for 250,000+ detachments
Compatibility
- Tags Supported:
- OSTRA D55 / D50 / D40
- SHELL D40
- FORTUS / MODUS EAS tags
- Most 8.2 MHz RF tags with mechanical or magnetic locks
- Pins Supported:
- Smooth pins, grooved pins, coded pins up to 20 mm
Security Benefits
- Prevents unauthorized use after hours or at unsupervised counters
- Compatible with high-strength tag locks including SuperLock and HyperLock
- Durable enough for high-throughput retail environments
- Secured cavity resists reverse-magnet tampering
- Smooth chrome finish enhances modern checkout aesthetics
Packaging & Logistics
| Feature |
Details |
| Standard Packing |
1 unit per box |
| Box Dimensions |
Approx. 90 × 90 × 50 mm |
| Accessories |
1 locking key included, optional base or screw kit available |
| Weight (boxed) |
Approx. 700 g |
Summary
The
Cross Point CodeLOCK Chrome Detacher is a premium, lockable detacher featuring 9 600 Gauss magnetic strength, making it ideal for unlocking advanced hard tags like OSTRA. With dual mounting options, aesthetic chrome finish, and tamper-resistant locking, it is best suited for modern retail spaces demanding both performance and protection against internal shrinkage.
Meta Description
Cross Point CodeLOCK Chrome Detacher delivers 9 600 Gauss magnetic strength with lockable security, chrome finish, and dual mounting options. Optimized for OSTRA and SHELL tags, it's ideal for high-security retail checkouts requiring durable, tamper-resistant detachers.
Datasheet
