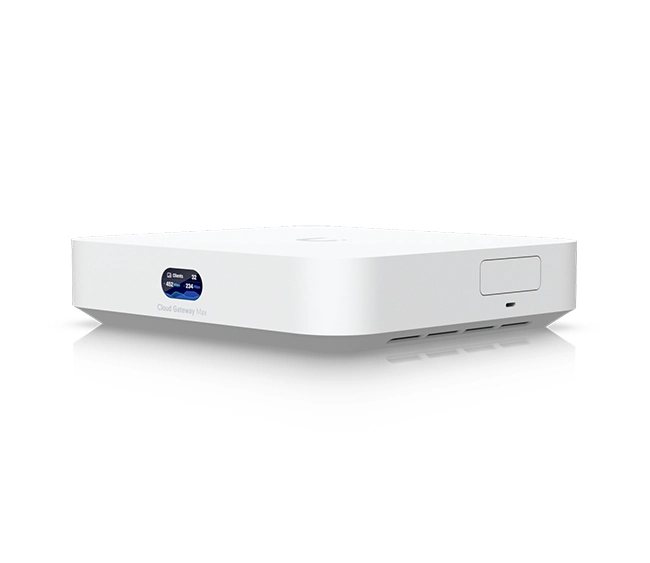

UniFi Cloud Gateway Max (UCG-Max)

The UCG-Max is designed for medium-to-large-sized businesses and advanced users who require powerful networking, high throughput, and advanced security features. The combination of multiple WAN ports, high-speed throughput, and UniFi application integration makes it suitable for enterprises looking for a reliable, scalable, and secure gateway solution. Here are the detailed specifications for the Cloud Gateway Max (UCG-Max):

General Specifications

• Product Type: Multi-WAN UniFi Cloud Gateway
• Model: UCG-Max
• Storage: 512GB SSD (pre-installed)
• Operating System: UniFi OS
• Management Platform: UniFi Network Controller (via UniFi Cloud)

Performance

• Throughput: Up to 2.5 Gbps
• WAN Ports:
  • Primary WAN: 1 x 10GbE (10G) SFP+ port
  • Secondary WAN: 1 x 2.5GbE (2.5G) port
  • Optional Third WAN: 1 x 1GbE (1G) Ethernet port
• LAN Ports:
  • 4 x 2.5GbE (2.5G) Ethernet ports
  • 1 x 10GbE (10G) Ethernet port
• Throughput: Capable of handling up to 2.5 Gbps combined across all active interfaces.

Networking & Routing

• Routing Features:
  • Advanced routing protocols (e.g., OSPF, BGP)
  • Static routing, DHCP server, DNS services
  • Load balancing across WAN connections
  • WAN failover for seamless connectivity
• VLAN Support: Supports multiple VLANs for network segmentation
• IPv6 Support: Fully compatible with IPv6 routing and services.
• QoS: Quality of Service for bandwidth prioritization and management
• NAT: Full support for NAT (Network Address Translation), including Port Forwarding and UPnP.

Security Features

• Firewall: Configurable firewall for inbound and outbound filtering
• VPN Support:
  • Site-to-Site VPN (IPsec, OpenVPN, etc.)
  • Remote Access VPN (PPTP, L2TP, and SSL VPN)
  • VPN client support for secure connections on the go
• Intrusion Detection: Real-time IDS/IPS (Intrusion Detection & Prevention Systems)
• DDoS Protection: Built-in mitigation for Distributed Denial of Service attacks
• Deep Packet Inspection (DPI): Advanced DPI for traffic monitoring and analysis
• Access Control: Granular user-level access controls and policies

Management & Monitoring

• UniFi Cloud Integration: Remote access to the device for configuration and monitoring via UniFi Cloud.
• UniFi Network Controller:
  • Real-time monitoring dashboard
  • Cloud-based management for easier configuration
  • Centralized management for large deployments
• Alerts and Notifications: Customizable alerts for network events and performance thresholds

Physical Specifications

• Form Factor: Rackmountable
• Dimensions: 19" (W) x 1.75" (H) x 10" (D) (1U rackmount size)
• Weight: Approximately 5 lbs (2.3 kg)

Environmental

• Power Supply:
  • AC Input: 100-240V, 50/60Hz, 1.5A
  • PoE (Power over Ethernet) support for additional UniFi devices
• Temperature Range: Operating: 0°C to 40°C (32°F to 104°F)
• Humidity: 10% to 90% non-condensing

Additional Features

• Auto-Detection of WAN Failures: Automatically reroutes traffic to backup WAN if the primary connection fails.
• Zero-Touch Provisioning: Simplifies device deployment and configuration via UniFi Cloud.
• Scalability: Can scale to handle large amounts of devices and users across multiple locations.
• Software Updates: Automatic software updates with the UniFi OS to ensure security and functionality improvements.

Supported Software and Applications

• UniFi Network: Centralized management of all UniFi devices, including switches, access points, and cameras.
• UniFi Protect: Video surveillance management software, if connected to UniFi cameras.
• UniFi Talk: Integrated VoIP solution for voice communications.
