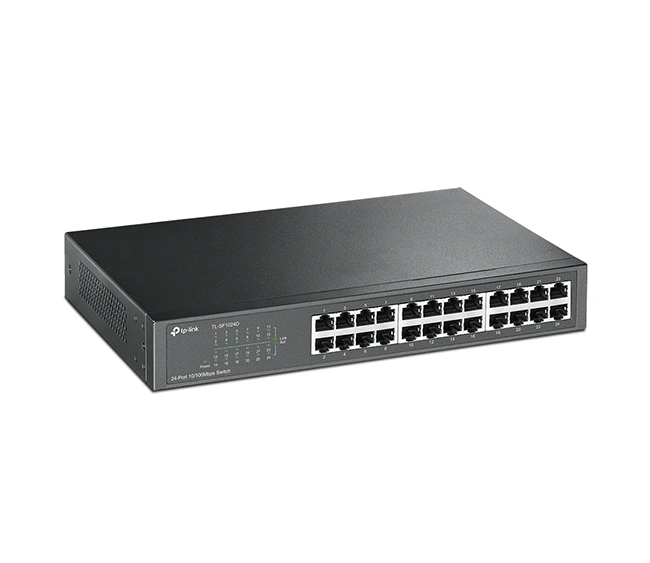

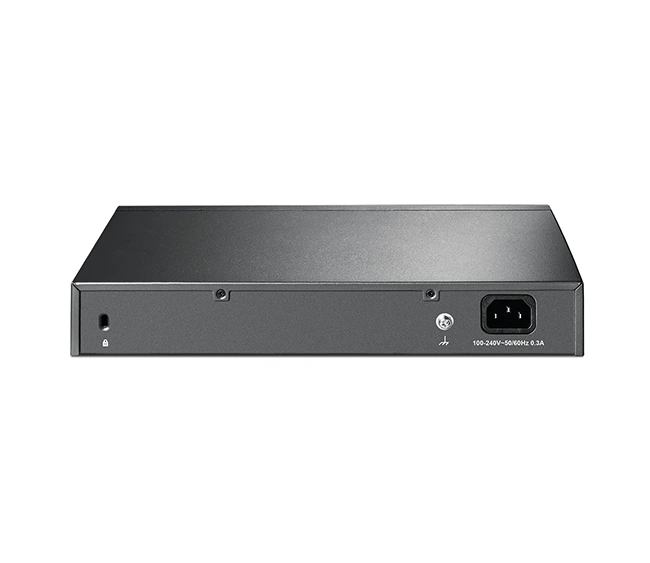

TP-Link 24-port 10/100Mbps Desktop/Rackmount Switch (TL-SF1024D)
KSh 15,000(KSh 17,400 Incl VAT)
- 24× 10/100 Mbps ports with Auto‑MDI/MDIX
- 4.8 Gbps non‑blocking switching performance
- 8 K MAC table with 2 Mb buffering
- Energy‑efficient Green Ethernet saves up to 75% power
- Fanless steel chassis for silent operation
- Plug‑and‑play with no configuration needed
- Includes rack‑mount kit
- Ultra‑low power draw (~3.2 W)
SKU: TL-SF1024DCategory: Networking Infrastructure
The TP-Link 24-port 10/100Mbps Desktop/Rackmount Switch (TL-SF1024D) is a sturdy 24‑port 10/100 Mbps unmanaged switch, ideal for office or small business networks. Housed in a compact 13‑inch steel desktop/rackmount case, it supports plug‑and‑play use, Auto‑MDI/MDIX, and Green Ethernet technology for energy savings up to 75%.
🧠 Hardware Specifications
- Model: TL‑SF1024D
- Ports: 24 × 10/100 Mbps RJ45 with auto‑negotiation & Auto‑MDI/MDIX
- Switching Capacity: 4.8 Gbps (non‑blocking)
- Forwarding Rate: ~3.57 Mpps
- MAC Address Table: 8 K entries
- Buffer Memory: 2 Mb
- Switching Mode: Store‑and‑forward
- Flow Control: IEEE 802.3x (full‑duplex), backpressure (half‑duplex)
🌱 Energy & Environmental Efficiency
- Green Ethernet: Adjusts power per port based on cable status and length—saves up to 75% power
- Compliance & Design: RoHS-compliant; up to 80% recyclable packaging
⚡ Power & Physical Details
- Power Adapter: External 9 V DC / 0.6 A
- Maximum Power Consumption: ~3.2–3.5 W (≈11 BTU/h)
- Cooling: Fanless, whisper‑quiet
- Enclosure: Steel desktop/rackmount housing, includes rack‑ear kit
- Dimensions: 294 × 180 × 44 mm (11.6″ × 7.1″ × 1.7″)
- Installation: Desktop or standard 19″ rack
