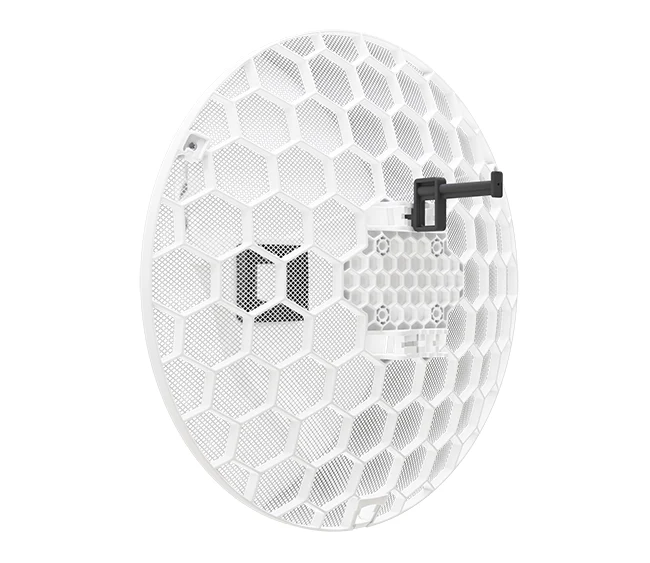

MikroTik RBLHGG-60ad (LHG 60G)

The MikroTik RBLHGG-60ad (LHG 60G), which is a high-gain, long-range 60 GHz wireless device optimized for point-to-point (PtP) or point-to-multipoint (PtMP) setups. The MikroTik RBLHGG-60ad (LHG 60G) is a professional-grade 60 GHz wireless dish designed for ultra-fast, low-latency wireless links over longer distances than standard 60 GHz CPE units. With a narrow beamwidth and a high-gain parabolic antenna, it enables stable and interference-free performance even in dense urban or industrial environments. This model is ideal for bridging buildings, last-mile wireless delivery, or as a high-performance client for MikroTik 60 GHz access points.

---

General Specifications

• Product Code: RBLHGG-60ad
• Product Name: LHG 60G
• CPU: IPQ-4019 (Quad-core ARM Cortex-A7)
• CPU Frequency: 716 MHz (auto downclocking to 448 MHz under low load)
• Architecture: ARM 32-bit
• RAM: 256 MB
• Storage Type: Flash
• Storage Size: 16 MB
• Operating System: RouterOS
• RouterOS License Level: Level 3 (suitable for client/CPE use or PtP)
• MTBF: ~200,000 hours at 25°C
• Operating Temperature Range: -40°C to +70°C
• Dimensions: Ø 391 mm x 222 mm
• Enclosure Rating: IP55 (weatherproof, outdoor-rated)

---

Wireless Capabilities

• Wireless Standard: 802.11ad (60 GHz)
• Wireless Chipset: QCA6335
• Frequency Band: 60 GHz ISM band
• Maximum Data Rate: Up to 1 Gbps per link
• Wireless Output Power: Up to 40 dBm EIRP
• Antenna Type: Integrated parabolic dish
• Antenna Gain: 42 dBi (beamforming dish)
• Beamwidth: ~3°
• Range:
  • Up to 800 meters (PtMP)
  • Up to 1,500 meters (PtP line-of-sight)
• Number of Wireless Chains: 1
• Encryption Support: WPA2-PSK, AES encryption

---

Interfaces & Power

• Ethernet Port: 1 x Gigabit Ethernet (10/100/1000 Mbps)
• PoE Input: 802.3af/at compatible and Passive PoE supported
• Supported Input Voltage: 12 – 57 V
• Maximum Power Consumption: 5 W
• Cooling System: Passive (fanless)
• Reset Button: Yes
• LED Indicators: Signal strength, power, status

---

Physical & Mounting

• Mounting Options:
  • Includes precision alignment tool
  • Mounting kit for poles included
• Build Material: UV-stable plastic dish with integrated metal grid
• Wind Load: Low due to mesh dish design
• Weight (approx.): ~1.2 kg (including mounting)

---

Advanced Features

• RouterOS Features:
  • Firewall, NAT, VLANs
  • Bandwidth control (QoS)
  • SNMP, SSH, Web GUI, API
  • Tunnels, VPN (IPSec, PPTP, L2TP)
• Point-to-Point Optimization:
  • Extremely narrow beamwidth minimizes interference
  • Stable link performance under weather variations
• Deployment Use:
  • As a long-range CPE to a MikroTik 60 GHz AP
  • Building-to-building bridge
  • Industrial short-range backbone

---

Package Contents

• LHG 60G (RBLHGG-60ad) unit
• Precision dish and mounting kit
• Metal LHG mount
• Alignment (aim) tool
• Gigabit PoE injector
• Power adapter (24V 0.38A)
• Quick start guide

---



Ideal Use Cases

• Long-range wireless bridging between buildings
• Last-mile gigabit connections
• Industrial and enterprise backhaul links
• High-speed campus deployments
• Rural wireless extension with fiber-like speeds

---

Meta Description: MikroTik RBLHGG-60ad (LHG 60G) is a high-gain, long-range 60 GHz wireless dish CPE with integrated 42 dBi antenna, 1 Gbps data rate, Gigabit Ethernet, and weatherproof IP55 design – ideal for point-to-point and point-to-multipoint fiber-replacement wireless bridging. Datasheet
