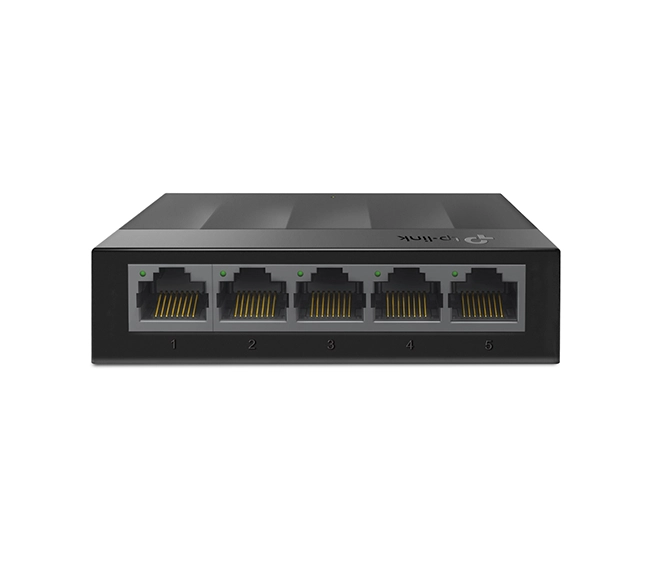

TP-Link 5-Port 10/100/1000Mbps Desktop Switch (TL-LS1005G)

The TP-Link 5-Port 10/100/1000Mbps Desktop Switch (TL-LS1005G) is a reliable 5-port unmanaged Gigabit Ethernet switch designed for home, small office, and surveillance applications. It offers high-speed data transfer, low power consumption with Green Ethernet technology, and fanless silent operation in a compact desktop or wall-mount form factor.

---

🧠 Hardware Specifications

• Model: TL-LS1005G
• Ports: 5 × 10/100/1000 Mbps RJ45 ports
• Auto-Negotiation: Supported on all ports
• Auto MDI/MDIX: Supported
• Switching Capacity: 10 Gbps
• Forwarding Rate: 7.44 Mpps
• MAC Address Table: 2K entries
• Packet Buffer Memory: 1.5 Mb
• Jumbo Frame Support: Up to 16 KB
• Switching Method: Store-and-forward
• Flow Control: IEEE 802.3x for full-duplex; backpressure for half-duplex

---

🌐 Networking Standards

• IEEE 802.3 (10Base-T)
• IEEE 802.3u (100Base-TX)
• IEEE 802.3ab (1000Base-T)
• IEEE 802.3x (Flow Control)

---

⚡ Power & Efficiency

• Power Supply: External 5V DC / 0.6A adapter
• Maximum Power Consumption: 3.7 W
• Energy Efficiency: Green Ethernet technology adjusts power usage based on link status and cable length

---

📦 Physical Specifications

• Dimensions: 90 × 72 × 23 mm
• Enclosure Material: Plastic
• Mounting Options: Desktop or wall-mount
• Cooling: Fanless for silent operation

---

🌡 Environmental

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 60°C
• Operating Humidity: 10%–90% RH non-condensing
• Storage Humidity: 5%–90% RH non-condensing

---

📝 Meta Description

TP-Link TL-LS1005G is a 5-port Gigabit Ethernet unmanaged switch offering high-speed data transfer, energy-saving Green Ethernet, and silent fanless operation in a compact, wall-mountable design. Ideal for homes, small offices, and surveillance networks. Datasheet
