UniFi Dream Wall (UDW)

The UniFi Dream Wall (UDW) is Ubiquiti’s flagship all-in-one networking solution, designed for high-performance environments. It integrates a cloud gateway, WiFi 6 access point, PoE switch, and UniFi OS console in a sleek wall-mounted form factor.

---

🔧 Key Specifications

• Processor: Quad-Core ARM Cortex-A57 @ 1.7 GHz
• Memory: 4 GB DDR4
• Storage:
  • 16 GB eMMC (system)
  • 128 GB SSD (NVR)
  • 512 GB microSD card (pre-installed)
• Display: 4.7" touchscreen for management
• WiFi: WiFi 6 (802.11ax) with 4x4 MIMO
  • 2.4 GHz: 300 Mbps
  • 5 GHz: 2.4 Gbps
• Ports:
  • WAN:
    • 1 × 10G SFP+
    • 1 × 2.5G RJ45
  • LAN:
    • 1 × 10G SFP+
    • 17 × 1G RJ45
      • 4 × PoE (802.3af)
      • 4 × PoE+ (802.3at)
      • 4 × PoE++ (802.3bt)
• Power:
  • 1 × 550W hot-swappable PSU (included)
  • Slot for optional second PSU
  • Max consumption: 532W
• Dimensions: 549 × 342 × 62 mm
• Weight: 8.6 kg

---

🛡️ Security & Software

• UniFi OS: Full support for UniFi Network, Protect, Access, and Talk applications
• Firewall: Stateful with L7 DPI, VLANs, and advanced filtering
• Threat Management: IDS/IPS with 3.5+ Gbps throughput
• VPN: Supports OpenVPN, WireGuard, L2TP, IPsec, and Teleport

---

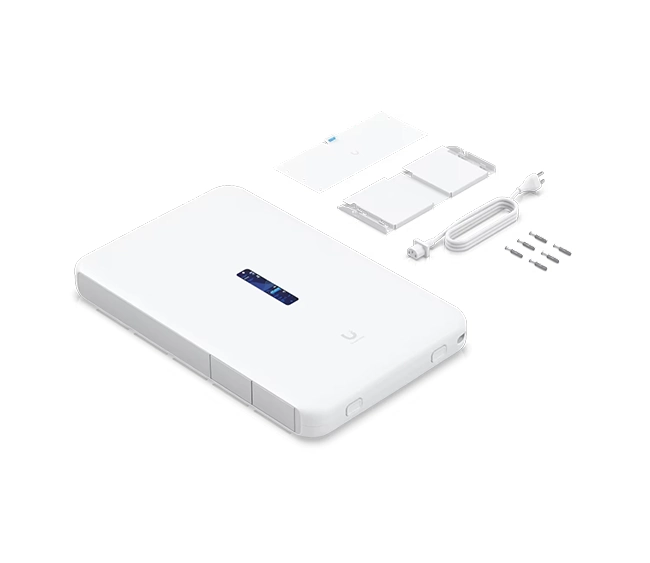

📦 Included in the Box

• UDW unit
• Wall mounting kit
• Power cable
• Pre-installed 512 GB microSD card

---

The UniFi Dream Wall is ideal for environments requiring robust networking capabilities, integrated security, and seamless management of UniFi devices. Its wall-mounted design offers a clean aesthetic, making it suitable for both professional and residential settings.

---
